Product Details
| Brand Name | HST | Place of Origin | China | |
| Model Number | XJCJ-2B | Power | Electronic |
Product Description

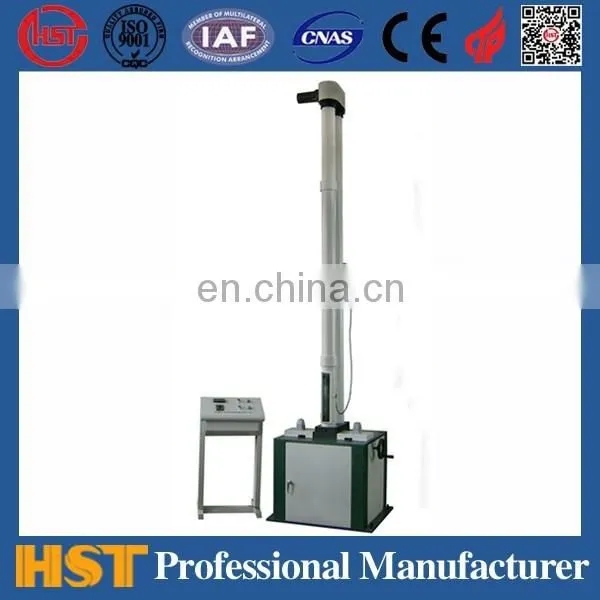

XJCJ-2B Drop Hammer Tube Impact Testing Equipment , Tubing Materials Drop Weight Impact Test Machine
1.Application :
XJCJ - 2 b drop hammer impact testing machine is suitable for various pipe (PVC -u water feed pipe, drainage pipe, low pressure water feed pipe, low pressure water pipe, core layer foam pipe, double-wall corrugated pipe, PE water pipe), the determination of the external impact resistance, can also be applied to hard plastic sheet . Products comply with industry standard JB/T9389 drop hammer impact testing machine technical conditions and the national standard GB/T14152, GB/T14153, GB/T6112;Also meet the GB/T5836, GB/T10002.1, GB/T10002.3, GB/T13664, GB/T16800, GB/T18477 etc. test methods and standard .
The machine uses MCU control, LED digital display impact height, it have automatic suction hammer, auto zero, auto-lifting, to prevent secondary impacts and other functions. The device adopts two-column structure, safe and reliable operation. Sample holder platform using hand-bevel gear structure , operate simple , labor-saving and high-precision.
2.Technical Parameters :
Max . Impact Energy : 300 J
Hammer Weight :0.25Kg~15Kg
Hammerhead curvature radius : d25,d90mm,(SR5,SRl0,SR30 Optional)
Impact Height : 100mm~2000mm
Impact height error : ±2mm
Sample specifications :Φ16mm—Φ450mm
Power Supply :AC220V,50Hz,10A
Weight : 387Kg
