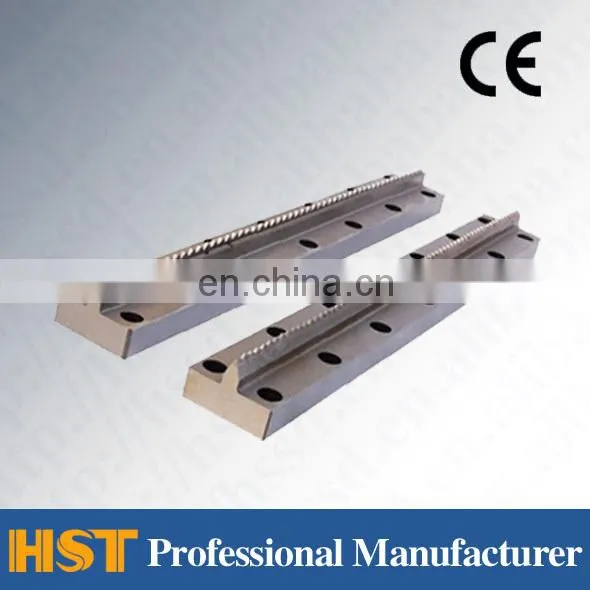

V-2mm/U-2mm Impact Sample U-Notch V-Notch Cutter
1.Function

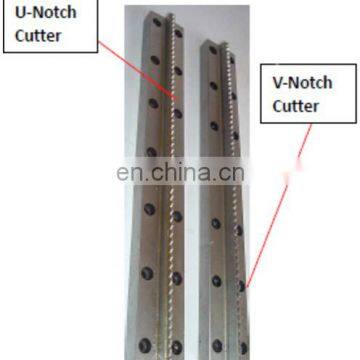

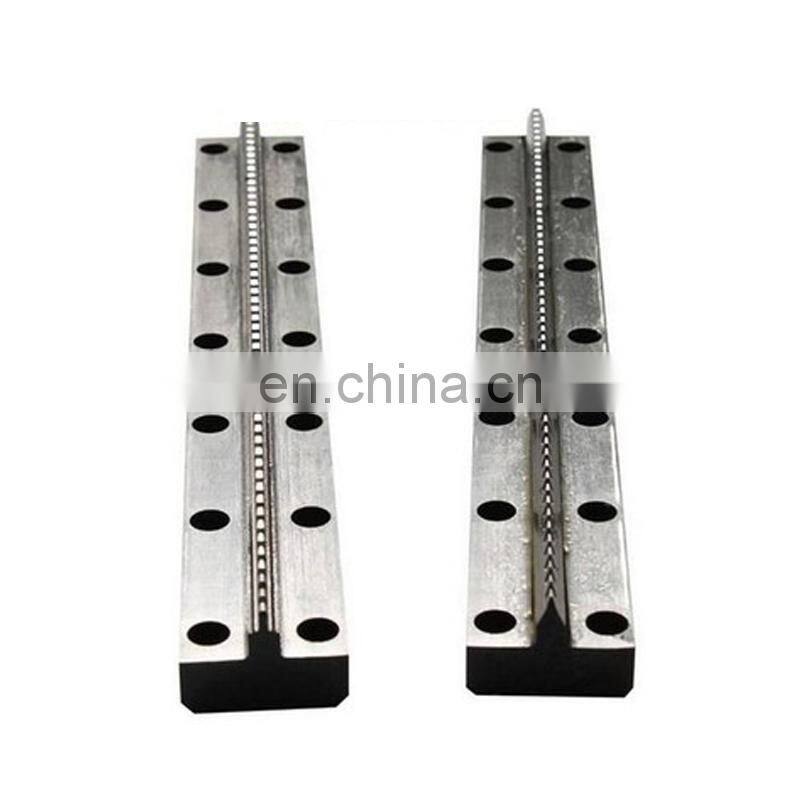

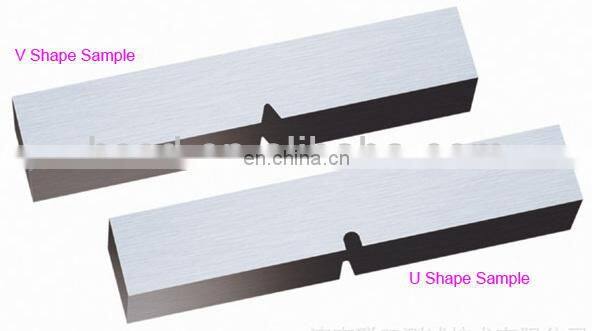

There are two kinds of broach, one is U shape, and the other is V shape. 2mm U-shape Notch Cutter is applicable for all specimen notch broaching machines including hydraulic broaching machine, electric broaching machine and manual broaching machine. We can also provide V broaches of 2mm or U broaches of 3mm and 5mm according to customers’ requirements.
2.Features
1. The broach is made of imported W18Cr4V materials and has high hardness, good abrasion resistance and long serving life;
2. The broach can cut 20,000 specimens;

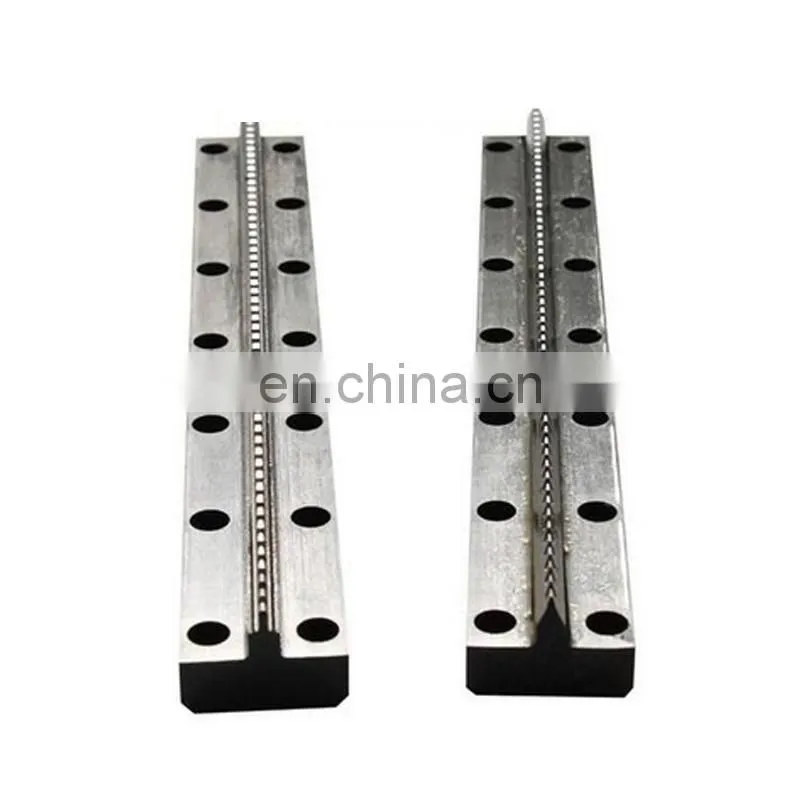

3. The broach has 54 teeth (5mm broach has 74 teeth), the last 4 teeth are used for shaping;
4. There are 4 Si between the teeth;
5. The processed U notch can meet the standard of GB/T229-2007 “Metallic Material Charpy Notch Impact Test Method”, GB 2106-80 “Metallic Materials-Charpy(U notch) Impact Test Method” and ASTME23-02a "Metallic materials Standard Impact Test Method
for Specimen Notch"
6. We can also provide you with V broach of 2mm and U broaches of 3mm and 5mm. U broaches of 3mm can meet GB standard, U broaches of 5mm meet both GB and European standard. We also manufacture special broaches in American standard according to customers’ requirements.
3.Application
1. 2mm U specimen notch broaches are widely used in many industries and areas including petrochemical industry, metallurgy, boiler and pressure vessels, steel plates, steel pipes, wind power generation, hardware, metal, casting, pumps, valves, solar energy, war industry, fasteners, diesel engines, electric power, iron towers, railways, shipbuilding, machinery manufacturing, automotive industry, aerospace industry, physical and chemical laboratory and scientific research..
2. It is also the special accessory of testing machines used in testing, analyzing and researching the physical property of metal materials and new materials. We have established cooperative relationship with many enterprises and institutions
Detail Show:
