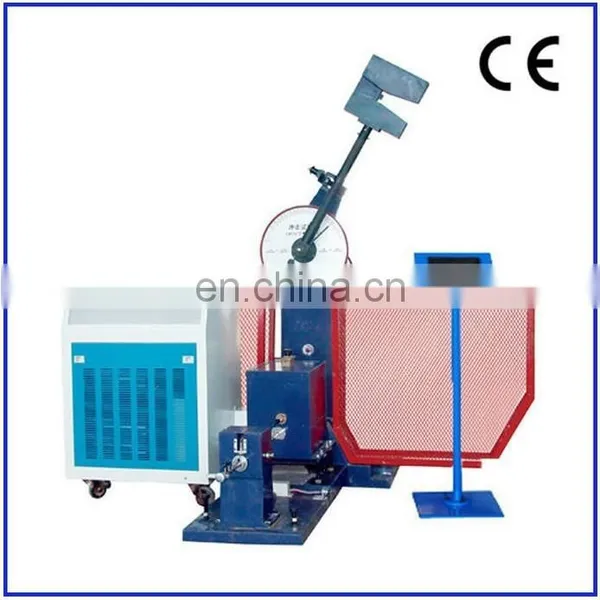

300J/500J/800J Impact Testing Machine/charpy Pendulum Impact Tester for Metal Charpy V Notch
US$ 1,900 - 2,100
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HST or OEM
Place of Origin:
Shandong, China
Model Number:
JB-300B 500B
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Impact Specimen U V Notch Cutting MachineUS$ 1,000 - 3,000MOQ: 1 Set -
DWC-196 Liquid Nitrogen Cooling Chamber for Sample /Cooling Chamber/ChillerUS$ 1,300 - 5,900MOQ: 1 Set
-
DWC-196 Liquid Nitrogen Cooling Low Temperature Chamber/Climatic Test ChamberUS$ 1,300 - 5,900MOQ: 1 Set
-
DWC-196 Liquid Nitrogen Precise Low Temperature ThermostatUS$ 1,300 - 5,900MOQ: 1 Set
-
V-2mm/U-2mm Impact Sample U-Notch V-Notch CutterUS$ 320 - 480MOQ: 1 Set
Brand Name
HST or OEM
Place of Origin
Shandong, China
Model Number
JB-300B 500B
Power
Electronic

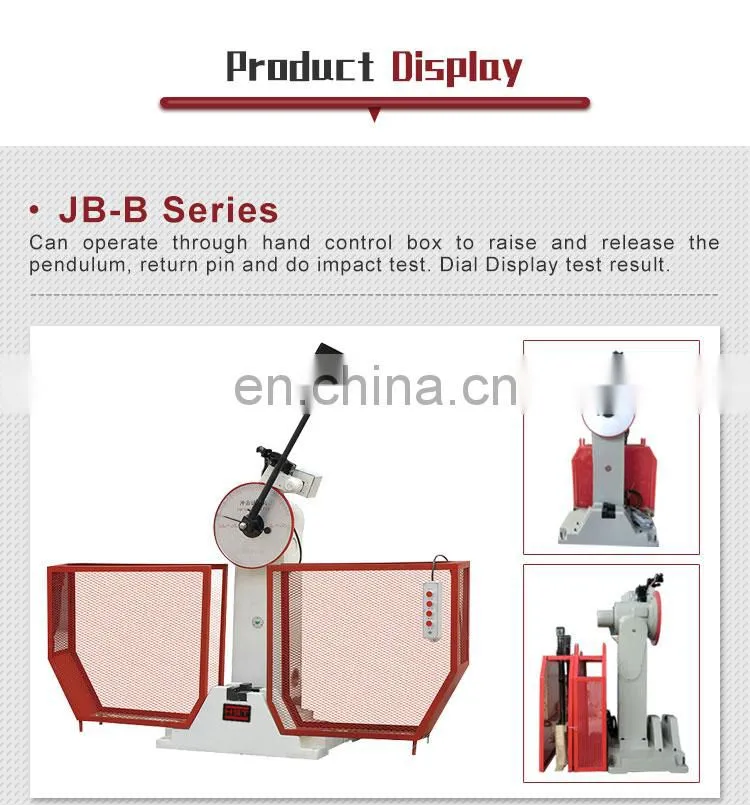

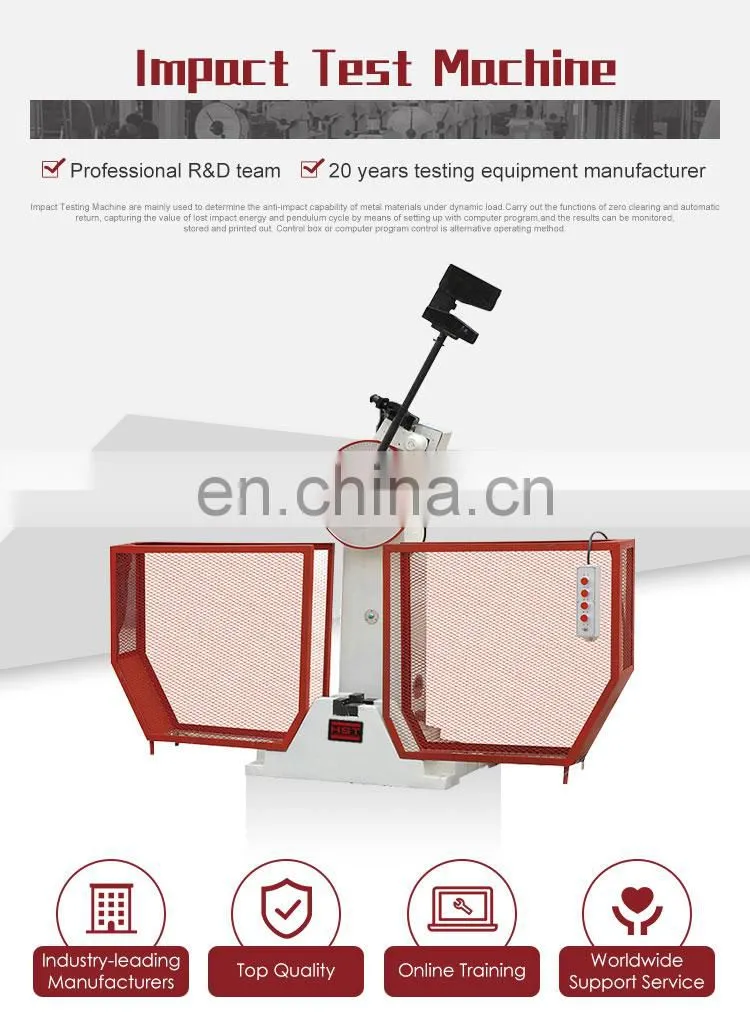

300J/500J/800J Impact testing machine/charpy pendulum impact tester for metal Charpy V notch
1. Application
JB type impact testing machine is used for measuring the metal material resistance performance under dynamic load, in order to determine the material properties under dynamic load.
2. Standards:
ISO148, EN10045, ASTM E23, GB/T3808-2002 ,GB/T229-2007
3. Main Technical Specifications:
|
Model |
JB-300B |
JB-500B |
JB-800B |
||
|
impact energy |
150/300J |
250/500J |
500/800J |
||
|
The distance between the pendulum shaft and impact point |
750mm |
800mm |
800mm |
||
|
Impact speed |
5.2m/s |
5.4 m/s |
5.9m/s |
||
|
Pre-rising angle of the pendulum |
150° |
||||
|
Specimen bearer span |
40+0.2mm |
||||
|
Round angle of the jaw |
R1-1.5mm |
||||
|
Round angle of impact edge |
R2-2.5mm,R8±0.05mm |
||||
|
Angle accuracy |
0.1° |
||||
|
Standard specimen dimension |
10mm×10(7.5/5)mm×55mm |
||||
|
Power supply |
3phs, 380V, 50Hz Or 220V,60Hz |
||||
|
Dimensions (mm) |
2124 x 600 x 1340 |
2200 ×650 ×1960 |
2450 x 1200 x 2455
|
||
|
Net Weight (kg) |
450 |
650 |
2300 |
||
