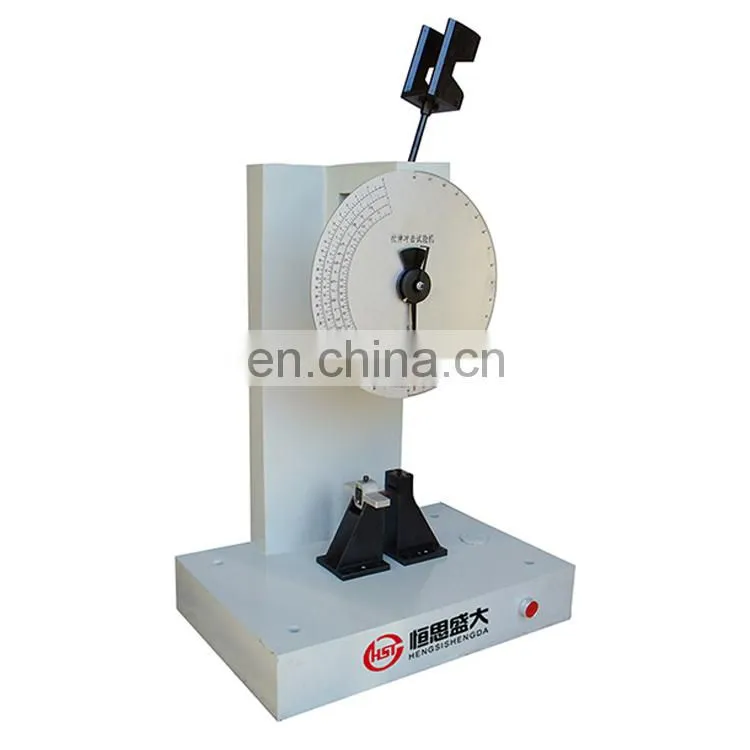

XJJ-50J Lab Use Plastic Izod Charpy Test Equipment Price
1.Application:
Izod & Charpy Test Equipment Price is equipped with both IZOD and CHARPY vise. This series is mainly used in testing the nonmetal materials' impact toughness, such as horniness plastic, strong nylon, glass reinforced plastics, china, clay rock, anti-electric etc . Izod & Charpy Test Equipment Price is the ideal test equipment of chemical industrial, R&D institution, universities and colleges, quality testing department and professional manufacturer laboratory.
2.Features:
1. Izod & Charpy Test Equipment Price can combine the Simple (including pipe testing) and Cantilever beam tester. Simple structure, convenient operation, data accurate, reliable performance testing instruments.The impact test use LCD display shows test results, more intuitive to read and more precision and accuracy .
2.Impact energy
Charpy: 7.5,15,25,50J
Izod: 5.5,11,22J
Test standards: Charpy:GB/T 1043,JB/T 8762,IS0 179etc.
Izod:GB/T 1843,JB/T 8761,IS0 180etc.
3. Technical Parameters:
combination |
XJJ-50 (charpy) |
XJU-22 ( izod) |
Impact speed |
3.8 m/s |
3.5 m/s |
Impact energy(J) |
7.5,15,25,50J |
5.5,11J,22J |
rising angle of the pendulum |
160° |
160° |
Impact blade fillet radius |
R=2±0.5mm |
R=0.8±0.2mm |
Clamp mouth fillet radius |
R=1±0.1mm |
R=1±0.1mm |
Span of vice jaw of sample |
40 mm,60mm, 70 mm,95mm, |
Wedge clamp mouth General clamp mouth |
Impact blade angle |
30°±l° |
30°±l° |
Energy loss |
0.5% |
0.5% |
Izod & Charpy Pendulum Impact Tester
Welcome to contact Sunny for more informations: Whatsapp/Line/Phone: +8615866777590 Skype:jessica-hssd Email: sunny at
