DWC-196T Impact Test Liquid Nitrogen Cooling Cabinet/Ultra Low Temperature Chamber/-196 Low Temperature Thermostat
US$ 1,200 - 2,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HST
Place of Origin:
Shandong, China
Model Number:
DWC
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DWC 40/60/80/100 Low Temperature Chamber for Charpy Impact Test + Cooling Chamber+Chiller+Cooling BathUS$ 1,200 - 2,500MOQ: 1 Set -
DWC-196 Liquid Nitrogen Charpy Impact Test Cooling/low-temperature ChamberUS$ 5,800 - 5,800MOQ: 2 Sets
-
Impact Sample Electric Vertical Broaching Machine + U V Notch Making Machine + Sample Cutting MachineUS$ 2,000 - 2,500MOQ: 1 Set
-
DWC-196 Liquid Nitrogen Cooling Cryostat / Charpy Impact Test Cooling ChamberUS$ 1,300 - 5,900MOQ: 1 Set
-
DWC-196 Liquid Nitrogen Low Temperature Chamber / Cryogenic TankUS$ 1,100 - 4,500MOQ: 1 Set
Brand Name
HST
Place of Origin
Shandong, China
Model Number
DWC
Power
Electronic
DWC-196 Impact Test Liquid Nitrogen Mini Low Temperature Chamber/Cooling Chamber
1. Application
This equipment used liquid nitrogen refrigeration technology, the use of the principle of heat balance and mixing method of circulation to achieve uniformity of the sample auto-cooling and temperature, to fully meet the temperature indicators of national standard GB229-2007 of the provisions. The equipment is simple, convenient and efficient for working, which is the ideal equipment of specimen cooling and insulation for low-temperature impact testing. At the same time, it can also be used for other low-temperature detection and testing.
2. standards:
ASTM, E23-02a, En10045, ISO83,GB/T229-2009

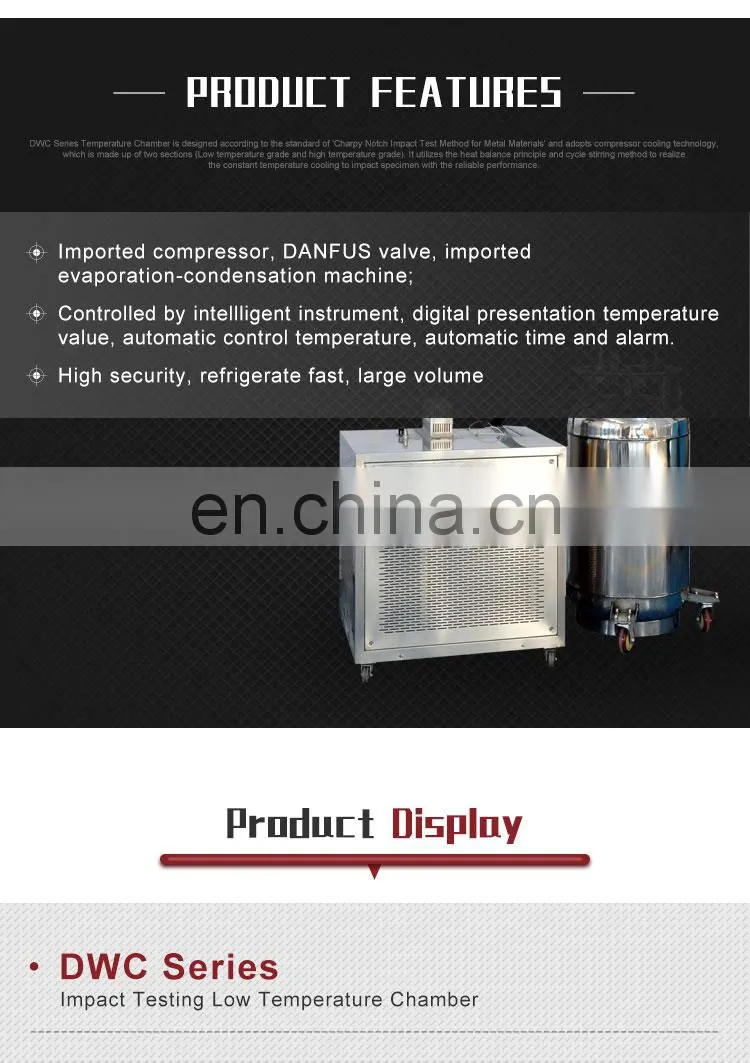

3.Features:
3.1 It uses liquid nitrogen cooling technology and high-precision intelligent instrument to control ultra-low temperature test
3.2 It can achieve automatic uniform cooling and constant temperature for specimen
3.Main Specifications:
Model | DWC-100 | DWC-196 |
Cooling range | +30°C ~-100°C | +30°C ~-196°C |
Constant temperature accuracy | ±2°C | |
Temperature dropping speed | 2°C ~5°C / min | |
Max. Dimension | 900×660×650 mm | |
Dimension of the liquid nitrogen tank | 1000×600×600 mm | |
Effective working space | 240×150×150mm(huge stainless steel refrigerator) | |
Specimens amount | 60 (Impact Specimens Size: 10×10×55mm) | |
Digital timer | 1min~9999min(Resolution:1min) | |
Cooling medium | Liquid nitrogen | |
Power supply | 220V~240V, 50HZ, 2.5KW | |
