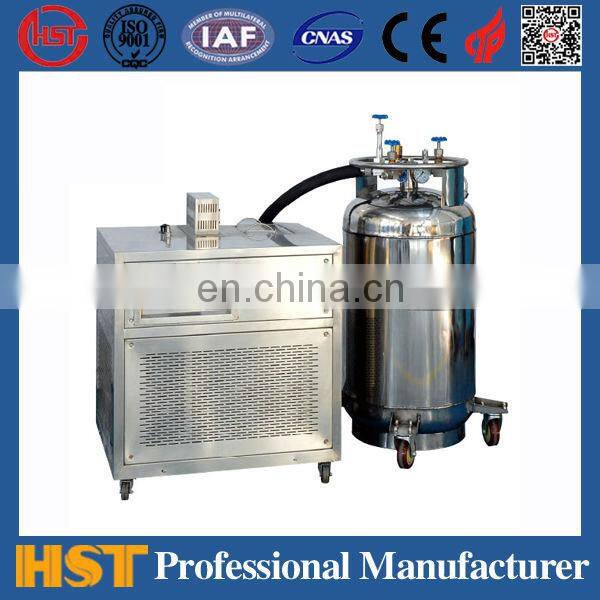

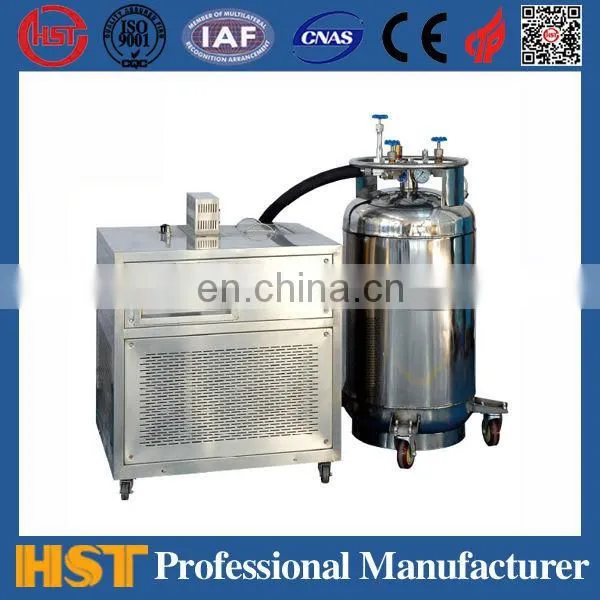

DWC-196 Liquid Nitrogen Charpy Impact Low Temperature Chamber
Product Description
1.Application:
This equipment used liquid nitrogen refrigeration technology, the use of the principle of heat balance and mixing method of circulation to achieve uniformity of the sample auto-cooling and temperature, to fully meet the temperature indicators of national standard GB229-2007 of the provisions. The equipment is simple, convenient and efficient for working, which is the ideal equipment of specimen cooling and insulation for low-temperature impact testing. At the same time, it can also be used for other low-temperature detection and testing.
2.Standards:
ASTM, E23-02a, En10045, ISO83,GB/T229-2009
3.Features:
3.1 It uses liquid nitrogen cooling technology and high-precision intelligent instrument to control ultra-low temperature test
3.2 It can achieve automatic uniform cooling and constant temperature for specimen
4.Main Specifications:
Model | DWC-100 | DWC-196 |
Cooling range | +30°C ~-100°C | +30°C ~-196°C |
Constant temperature accuracy | ±2°C | |
Temperature dropping speed | 2°C ~5°C / min | |
Max. Dimension | 900×660×650 mm | |
Dimension of the liquid nitrogen tank | 1000×600×600 mm | |
Effective working space | 240×150×150mm(huge stainless steel refrigerator) | |
Specimens amount | 60 (Impact Specimens Size: 10×10×55mm) | |
Digital timer | 1min~9999min(Resolution:1min) | |
Cooling medium | Liquid nitrogen | |
Power supply | 220V~240V, 50HZ, 2.5KW | |
Packaging & Shipping
1. Delivery date: 7 working days after receiving payment
2. Payment terms: T/T 100% before shipment.
3. Packages: Plywood Cases

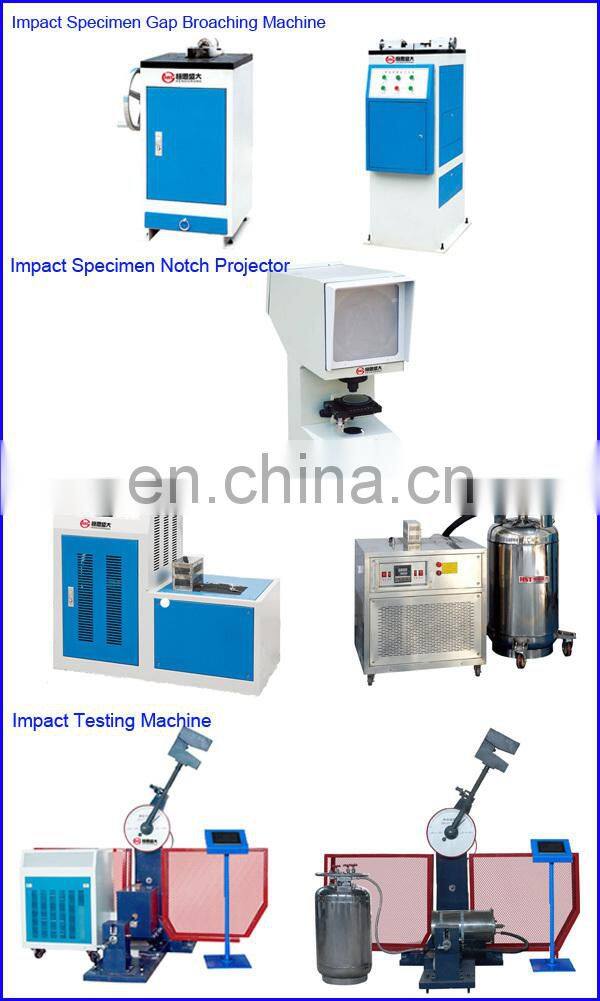

Our other Testing Machines:
