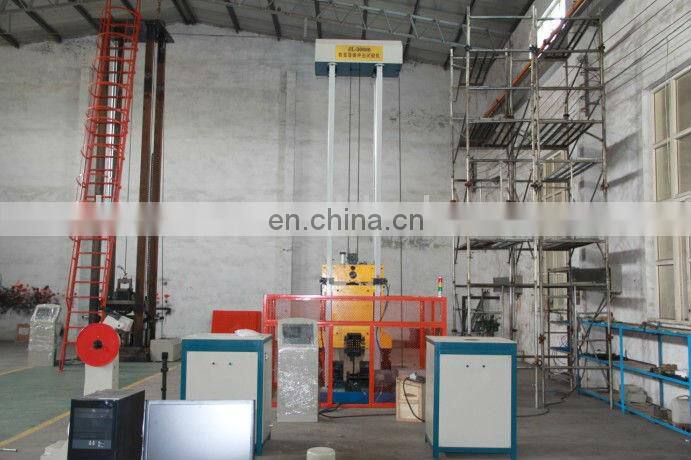

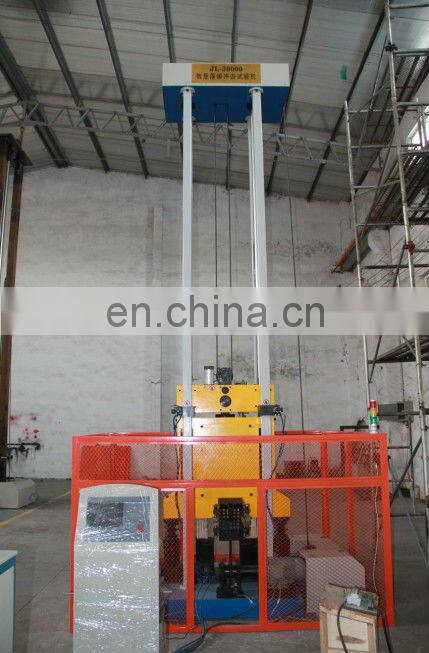

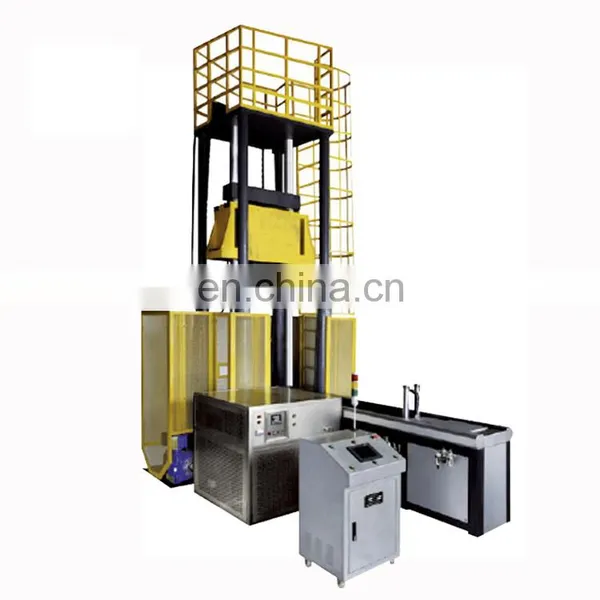

NDT Series Drop Weight Impact Strength Testing Machine
Application :
This type of machines is specially for conducting drop-weight test to determine nil-ductility transition temperature of ferritic steels .
Standards :
GB-T6803-86,ASTM E208-95A
Features :
SIMENS PLC controls and touch screen provide high reliability and versatility .
Automatic specimen feeding and automatic positing .
Frame structure is made of solid steel plate with high stability under impact .
Special design tools for support change .
Tup body is made of high strength steel plate with high impact resistance .
Use chain to lift striker with high precision in height .
Self-lock design for striker clamping
Full-closed safety shield .
Specifications :
Model |
NDT-2000 |
NDT-3000 |
NDT-4000 |
NDT-6000 |
Maximum Energy (J) |
2000 |
3000 |
4000 |
6000 |
Minimum Energy (J) |
300 |
300 |
500 |
750 |
Maximum Tup Mass (kg) |
60 |
90 |
120 |
204 |
Tup Mass Accuracy |
±1% |
|||
Drop Height (mm) |
750-3400 |
750-3000 |
||
Velocity of Drop (m/s) |
3.8-7.6 |
|||
Hammer Lifting Speed (m/min) |
3 |
|||
Height Resolution |
0.1 |
|||
Height Accuracy (mm) |
≤±10 |
|||
Hardness of Drop Nose |
HRC 58-62 |
|||
Radius of Tup Nose (mm) |
R25.4±2.5 |
|||
Sample Centered Error (mm) |
±1 |
|||
Support Anvil Span |
P-1, P-2, P-3 |
|||
Specimen Dimension |
P-1:(360±1)*(90±2)*(25±2.5) P-2:(130±1)*(50±1)*(20±1) P-3:(130±1)*(50±1)*(16±0.5) |
|||
Power Supply |
380 V ±10%, 50/60 Hz |
|||
1. Delivery date: 7 days after receiving payment .
2. Payment terms: T/T, 100%before shipment .
3. Packages: Standard exporting plywood case .
