Home > Instruments & Meters > Test Instrument > Test Machine > DWC-196 Liquid Nitrogen Charpy Impact Test Cooling/low-temperature Chamber

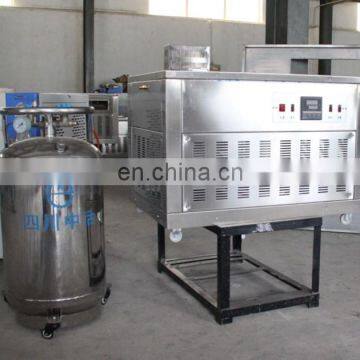

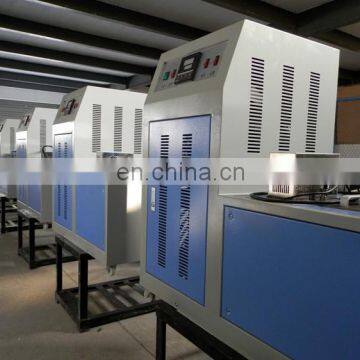

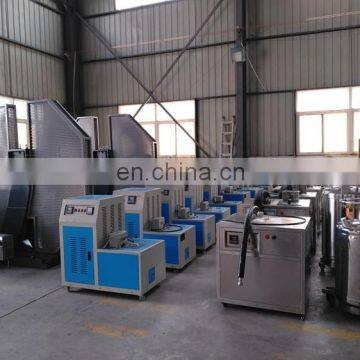

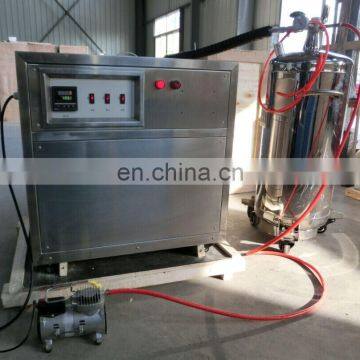

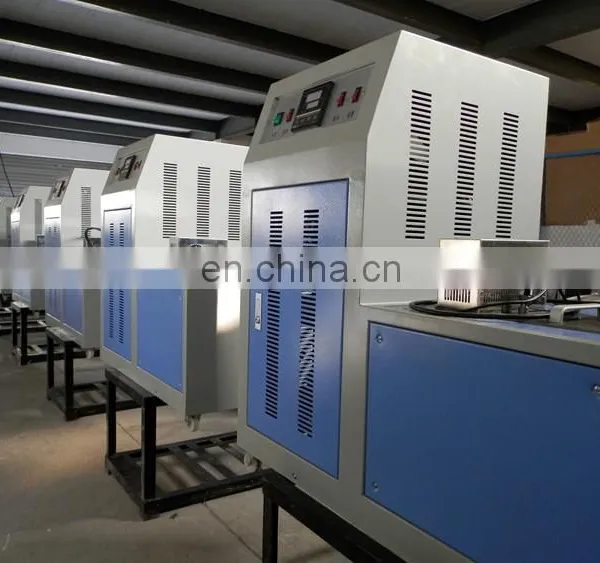

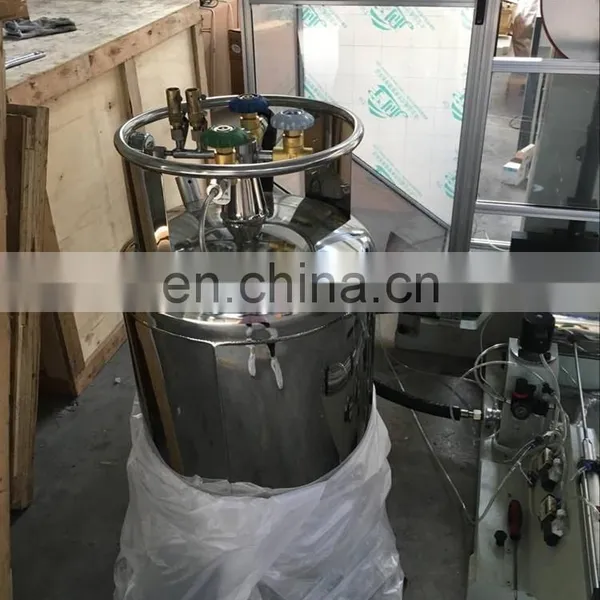

DWC-196 Liquid Nitrogen Charpy Impact Test Cooling/low-temperature Chamber
US$ 5,800 - 5,800
MOQ: 2 Sets
Key Specifications
Get Latest Price
Brand Name:
Hensgrand
Place of Origin:
Shandong, China
Model Number:
DWC-196
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Impact Sample Electric Vertical Broaching Machine + U V Notch Making Machine + Sample Cutting MachineUS$ 2,000 - 2,500MOQ: 1 Set -
DWC-196 Liquid Nitrogen Cooling Cryostat / Charpy Impact Test Cooling ChamberUS$ 1,300 - 5,900MOQ: 1 Set
-
DWC-196 Liquid Nitrogen Low Temperature Chamber / Cryogenic TankUS$ 1,100 - 4,500MOQ: 1 Set
-
DWC-196 Cryostat for Impact Test / Liquid Nitrogen Cooling Low Temperature Chamber /cryogenic TankUS$ 1,300 - 5,900MOQ: 1 Set
-
VU Series Impact Sample Making Machine / V Notch Making Machine /Impact Sample Cutting MachineUS$ 999 - 2,999MOQ: 1 Set
Brand Name
Hensgrand
Place of Origin
Shandong, China
Model Number
DWC-196
Power
Electronic
DWC-196 Liquid nitrogen charpy impact test cooling/low-temperature chamber
1.Application
This equipment used liquid nitrogen refrigeration technology, the use of the principle of heat balance and mixing method of circulation to achieve uniformity of the sample auto-cooling and temperature, to fully meet the temperature indicators of national standard GB229-2007 of the provisions. The equipment is simple, convenient and efficient for working, which is the ideal equipment of specimen cooling and insulation for low-temperature impact testing. At the same time, it can also be used for other low-temperature detection and testing.
2.Standards
ASTM, E23-02a, EN10045, ISO83,GB/T229-2009
3.Main Specifications
|
Model |
DWC-100 |
DWC-196 |
|
Cooling range |
+30°C ~-100°C |
+30°C ~-196°C |
|
Constant temperature accuracy |
±2°C |
|
|
Temperature dropping speed |
2°C ~5°C / min |
|
|
Max. Dimension |
900×660×650 mm |
|
|
Dimension of the liquid nitrogen tank |
1000×600×600 mm |
|
|
Effective working space |
240×150×150mm(huge stainless steel refrigerator) |
|
|
Specimens amount |
60 (Impact Specimens Size: 10×10×55mm) |
|
|
Digital timer |
1min~9999min(Resolution:1min) |
|
|
Cooling medium |
Liquid nitrogen |
|
|
Power supply |
220V~240V, 50HZ, 2.5KW |
|
