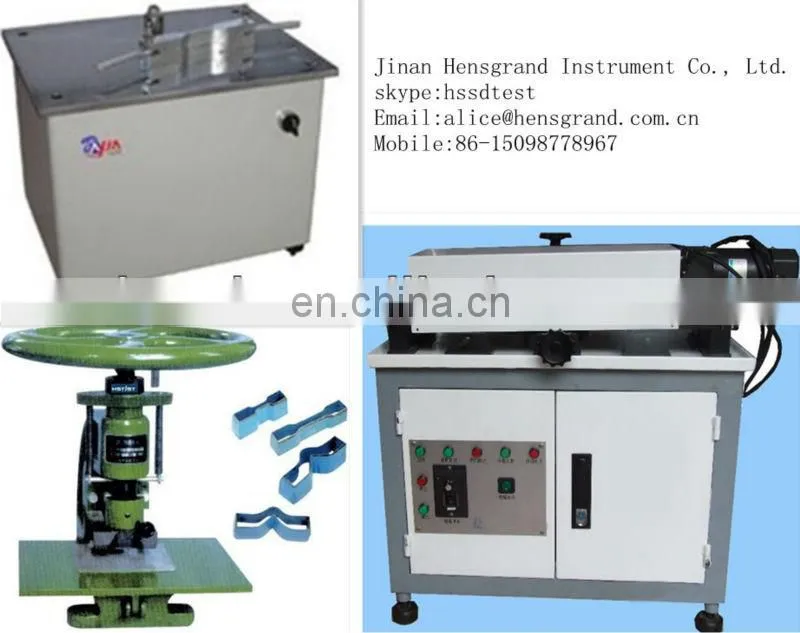

HS-20 Notching Machine for charpy and izod impact specimen
Application:
This machine is a pure manual machine, designed for charpy and izod impact specimen. Simple structure, easy operation, stable performance and cheap price.
Structure:
This system prototype using the sine of four bar linkage mechanism,converting the power produced by handwheel (1) into vertical sliding block of linear motion, so as to complete the spline cutting of the specimen.
Technical parameters:
Cutter shape and size | A type: 45°±1° R0.25±0.05 |
B type: 45°±1° R1±0.05 | |
C type: 2±0.2 | |
D type: 0.8±0.1 | |
E type: 45°±1° R0.1±0.05 | |
Max stoke | 20mm |
Size | 460*250*240mm |
