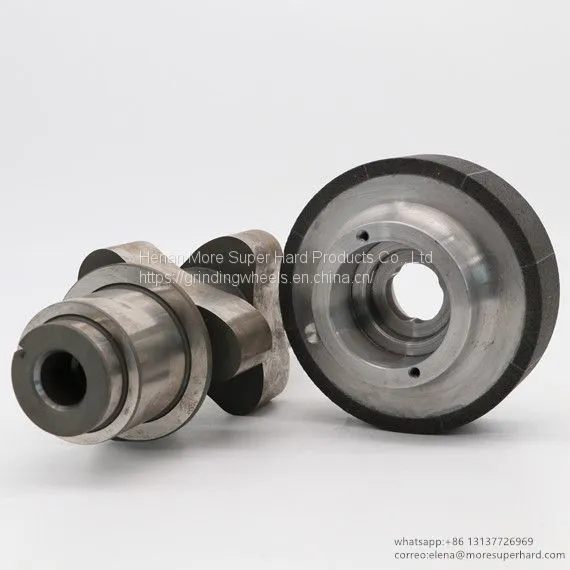

Camshaft Grinding - Vit Cbn Wheel photo-1

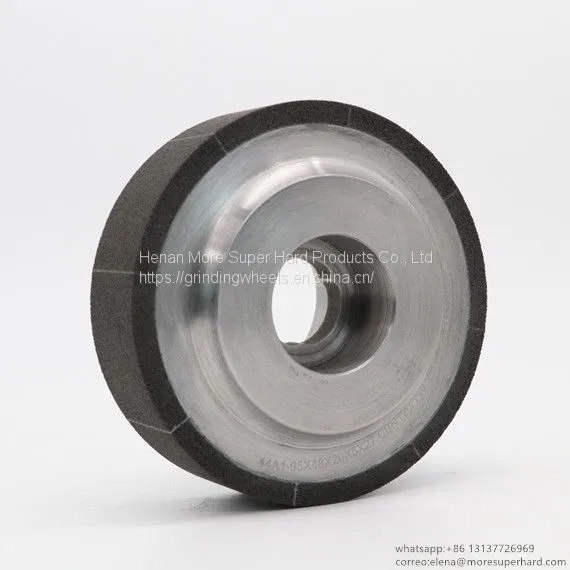

Camshaft Grinding - Vit Cbn Wheel photo-2
Camshaft Grinding - Vit Cbn Wheel photo-3
US$ 1 - 50 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
moresuperhard
Place of Origin:
China
Model Number:
1A1
Contact Supplier Request Quote Chat Now
Henan More Super Hard Products Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHENGZHOU
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name moresuperhard
Place of Origin China
Model Number 1A1
Size 1A1
Type Abrasive Disc
Camshaft Grinding - Vit Cbn Wheel
► Grinding camshaft

► Model: 1A1 Vit cbn wheel

► Suitable CNC cam Grinder: Toyoda, Schaudt, Landis, Junker etc

► Solutions for Auto Parts Machining, Please click the below to view
automibile parts machining
Camshaft Grinding - Vitrified bonded
Vitrified bond CBN Grinding Wheel is suitable for grinding the cam lobes of automobile camshafts.The wheel speed is 80m/s-160m/s, designed to used on CNC Cam Grinders like Toyoda, Schaudt, Landis, Junker etc.

The main parts of the camshaft to grind and regrind, include
► Camshaft main journals
► Cam (fixed on shaft)
► Cams (single)
► Camshaft tube

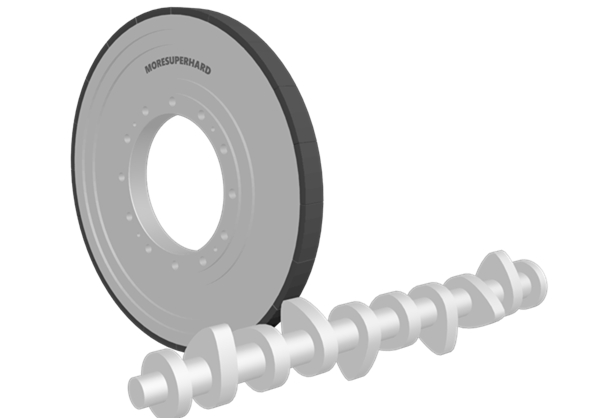

camshaft grinding wheel

Applicable Machines Of Vit CBN Grinding Wheel For Camshaft Grinding LANDIS: LT1, LT2
► SCHAUDT: CF41, CF61, ZEUSMX, ZX
► NAXOS: NAXOS-UNION, P310*1250, Gf70
► JUNKER: JUCAM5002/10, JUCAM500, JUCRANK5000,6000
► TOYODA: GCS63, GL5P-63, GL6P-100, GCH120B, GC32M-63, GCH63B, GL63M-T

camshaft grinding canshaft grinding
Cases of Camshaft Grinding
* Vit CBN Grinding Wheel for Camshaft Grinding
Model / Size D355xID152.4*T15 Vit CBN Grinding Wheel for Camshaft
Grain Size #80/100
Camshaft Grinding Machine PAlAMRY
Grinding Machine Speed 2500 r.p.m.
Workpiece Hardness HRC 55-60
Wheel speed (m/s) 50m/s
Camshaft Speed 0~30 r.p.m.
Grinding allowance 0.5mm-1mm
Cooling Liquid Oil-water mixture

* Double Ends Vit CBN Wheel for Camshaft Grinding
Model/ Size 120*15*66*（21+17) Double ends vitrified bond CBN grinding wheel
Grinding Machine Applicable Grinding Machine Toyoda (JKT）
Workpiece Workpiece Cam lobes of camshaft
Workpiece Material GCr15
Hardness of grinding layer HRC58-62
Grinding allowance Diameter: 1.2mm
Rough grinding(Φ0.99mm, speed 0.08mm/r)
Semi-finishing(Φ0.11mm, speed 0.03mm/ r)
Fine grinding (Φ0.02mm, speed 0.01mm/r)
Grinding Parameter Wheel speed (m/s) 72m/s
Roughness after grinding Ra≤0.64
Grinding time 66"
Dressing Parameter Dressing Tool Sintering diamond roller
Cooling Liquid
oil cooling
Grinding Wheel Life
grind about 8750 pieces
