Help CenterOptical Profile Grinding Wheel
US$ 1 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
moresuperhard
Place of Origin:
China
Model Number:
3A1
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHENGZHOU
Delivery Detail:
7 days
Related Products
-
Paper Mill Cutter Grinding - Resin CBN WheelsUS$ 1 - 50MOQ: 1 Piece -
Grinding Wheel for 4 Axis Tool Sharpening MachineUS$ 1 - 50MOQ: 1 Piece
-
Hybrid Diamond & CBN WheelsUS$ 1 - 50MOQ: 1 Piece
-
Gear Hob Cutter Sharpening - CBN WheelUS$ 1 - 50MOQ: 1 Piece
-
Resin Bond Diamond Grinding Wheel for CarbideUS$ 1 - 50MOQ: 1 Piece
Brand Name
moresuperhard
Place of Origin
China
Model Number
3A1
Size
3A1
Type
Abrasive Disc

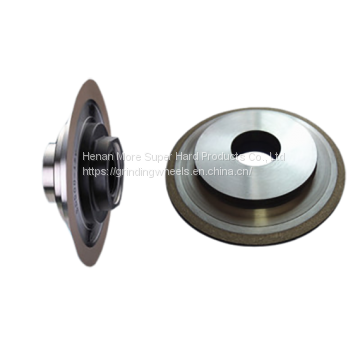

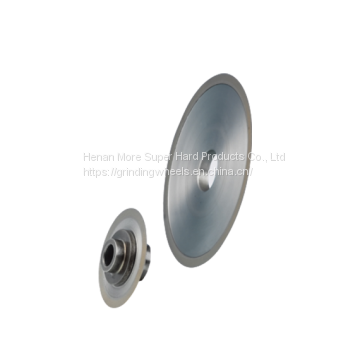

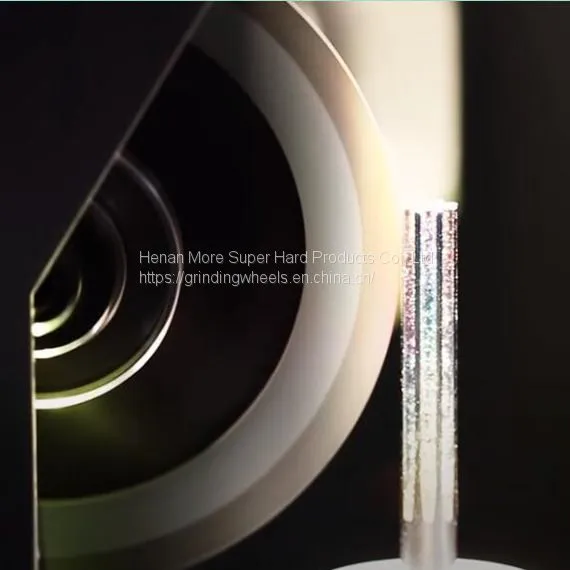

Optical Profile Grinding Wheel
► Application: precise grinding mould and die, punch pin, optical grinding and form grinding cutting tool ( such as end mill and reamer) and precise instrument
► Model: 3A1, 14K1, 1B9
► Bonded: resin bond & metal bond
► Optical Profile Grinder: Amada, Waida, Wasion, etc
► Model: 3A1, 14K1, 1B9
► Bonded: resin bond & metal bond
► Optical Profile Grinder: Amada, Waida, Wasion, etc

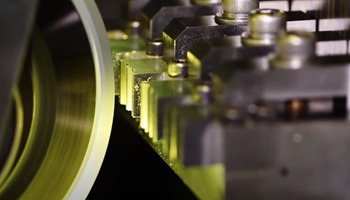

Optical Profile Grinding

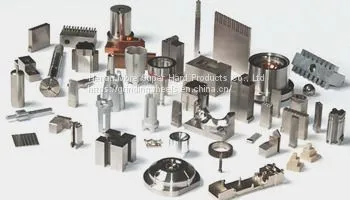

Optical profile grinding wheel is used for precise grinding mould and die, punch pin, optical grinding and form grinding cutting tool ( such as end mill and reamer) and precise instrument
The Workpiece Materials
► Diamond: Super hard and brittle cutting materials (such as tungsten carbide, cermets, ceramic, etc)
► CBN: heat treated steel (such as SKH, SKD and SKS, etc)
Specifications of optical profile grinding wheel

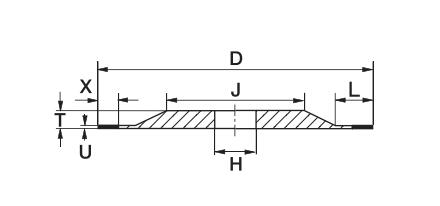

| Model | D | U | X | L | T | H | Grit |
| 3A1 diamond & cbn wheel | 30-150-180 | 0.5-2.0-5 | 3 | 5-10 | 3, 5, 7, 10 | 4.77 8 12 22.23 24 31.75 32 | 140- 1000 |

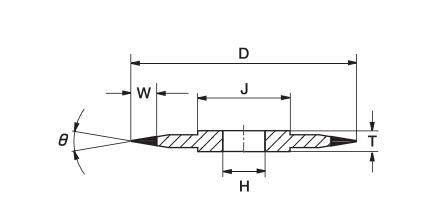

| Model | D | W | θ | R | T | H | Grit |
| 14K1 diamond & cbn wheel | 30 | 3 | 5°-15°-20° | 0.03-0.2 | 3 | 4.77 8 12 22.23 24 31.75 32 | 140- 1000 |
| 65 | 5 | 5 | |||||
| 75 | |||||||
| 80 | |||||||
| 100 | 7 | ||||||
| 125 | |||||||
| 150 | |||||||
| 180 |

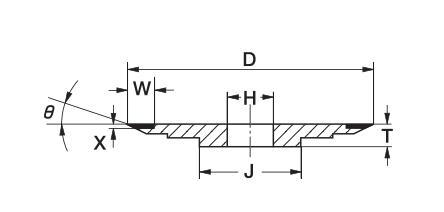

| Model | D | W | θ | R | T | H | Grit | X |
| 1B9 diamond & cbn wheel | 30 | 3 | 5°-15°-20° | 0.03-0.2 | 3 | 4.77 8 12 22.23 24 31.75 32 | 140- 1000 | 1 |
| 65 | 5 | 5 | ||||||
| 75 | ||||||||
| 80 | ||||||||
| 100 | 7 10 | |||||||
| 125 | ||||||||
| 150 | ||||||||
| 180 | ||||||||
| Other size can be design according to your requirement. | ||||||||
