Diamond Cylindrical Wheel for Thermal Spraying Coated
US$ 1 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
moresuperhard
Place of Origin:
China
Model Number:
1A1
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHENGZHOU
Delivery Detail:
7 days
Related Products
-
Resin Diamond Wheel for PDC Cutter / Drill Bits GrindingUS$ 1 - 50MOQ: 1 Piece -
Centerless Diamond Grinding Wheel - Resin BondUS$ 1 - 50MOQ: 1 Piece
-
Micro Drill Grinding - Resin Bond Diamond WheelUS$ 1 - 50MOQ: 1 Piece
-
Carbide Indexable Inserts Grinding WheelUS$ 1 - 50MOQ: 1 Piece
-
Diamond & CBN Sanding BeltsUS$ 1 - 50MOQ: 1 Unit
Brand Name
moresuperhard
Place of Origin
China
Model Number
1A1
Size
1A1
Type
Abrasive Disc
Diamond Cylindrical Wheel for Thermal Spraying Coated
We provide a full range of thermal spray coating solution and service which includes
► OD cylindrical grinding wheel (1A1 shape)
► Diamond sanding belts
► Diamond internal grinding wheel
► Diamond honing stone

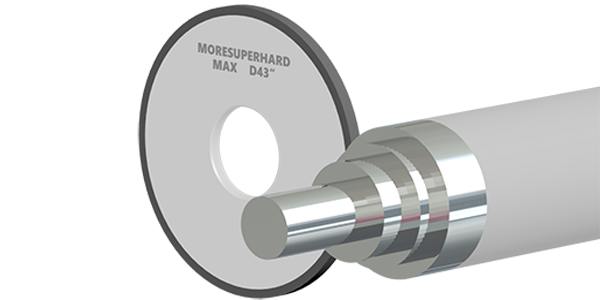

Cylindrical diamond wheel is used for grinding and finishing of thermal spray coatings ( including tungsten carbide , chrome carbide and chrome oxide ), ceramics, carbides, chilled iron composites and other hard-to-grind materials.

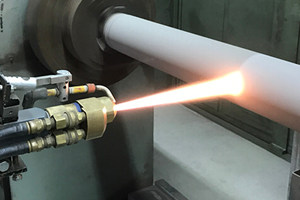

Thermal Spray Coating Process
Thermal Spray technologies includ Flame wire spray, Arc spray, Plasma spray, HVOF or HVAF , Detonation Spray, Cold spray .Thermal spraying technology is widely used in aerospace, aviation, machinery, metallurgy, chemical, petroleum, coal, railway, textile and many other departments .
Application Case : Diamond grinding wheel for Tungsten carbide coating Roller
► OD cylindrical grinding wheel (1A1 shape)
► Diamond sanding belts
► Diamond internal grinding wheel
► Diamond honing stone

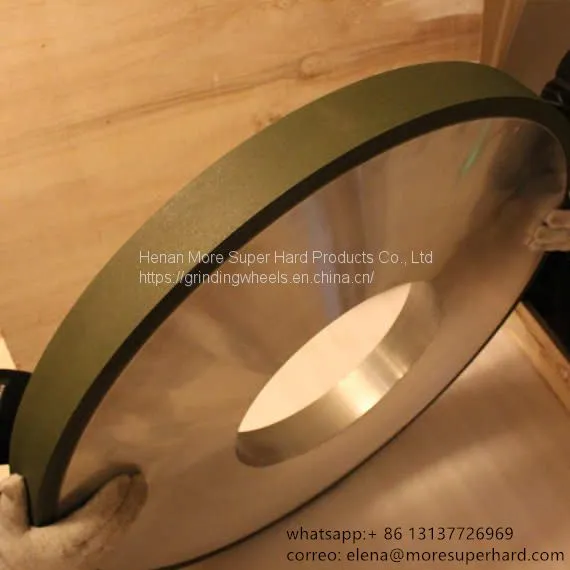

Model: 1A1 diamond wheel (diameter up to 1100mm)
cylindrical diamond wheel for carbide coated grinding
Thermal Spray technologies includ Flame wire spray, Arc spray, Plasma spray, HVOF or HVAF , Detonation Spray, Cold spray .Thermal spraying technology is widely used in aerospace, aviation, machinery, metallurgy, chemical, petroleum, coal, railway, textile and many other departments .
Specifications of diamond cylindrical wheel for carbide coating
| Diameter (mm) | Diameter (inch) | H (mm) | T (mm) | X (mm) |
| 25 | 1 inch | 6 | 12 | 6 |
| 30 | - | 12 | 6 | - |
| 40 | - | 12 | 6 | - |
| 50 | 2 inch | 6 | 12 | 6 |
| 100 | 4 inch | 12 | 12 | 10 |
| 150 | 6 inch | 12 | 25 | 10 |
| 300 | 12 inch | - | 25 | 10 |
| 400 | 16 inch | 127 | 25, 50 | 10, 25 |
| 500 | 20 inch | 127, 203.2 | 25, 50 | 10, 25 |
| 600 | 24 inch | 254 | 25, 50 | 10, 16, 25 |
| 750 | 30 inch | 304.8 | 50 | 10 |
| 914.4 | 36 inch | 304.8 | 25, 50 | 10, 25 |
| 1100 | 43 inch | 304.8 | 50 | 10 |
| Other specification can be made according to customer requirement Email:info@moresuperhard.com | ||||
Application Case : Diamond grinding wheel for Tungsten carbide coating Roller
| Operation: | External grinding |
| Workpiece: | Roll Diameter 120—1000 mm, Length 1.5—10 mm |
| Material: | HVOF spraying tungsten carbide or ceramic coating on a steel body |
| Dressing | white aluminum oxide 240# |
| Machine: | External grinding machine |
| Coolant： | Emulsion, Pressure: >/= 3 Bar |
| Diamond wheel specification: | 1A1 D750*T50*H304.8*X10 mm D126 N100 Aluminum wheel body |
| Parameters: | Wheel speed: 18—24 m/s, Depth of cut：0.01 –0.03 mm Feed: 300—800 mm/min Roll speed: 15—20 m/s |
