Micro Drill Grinding - Resin Bond Diamond Wheel
US$ 1 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
moresuperhard
Place of Origin:
China
Model Number:
3A1
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHENGZHOU
Delivery Detail:
7 days
Related Products
-
Carbide Indexable Inserts Grinding WheelUS$ 1 - 50MOQ: 1 Piece -
Diamond & CBN Sanding BeltsUS$ 1 - 50MOQ: 1 Unit
-
Carbide Circular Saw Sharpening Diamond WheelUS$ 1 - 50MOQ: 1 Unit
-
Diamond Lapping Disc for GemstoneUS$ 1 - 50MOQ: 1 Unit
-
Diamond Grinding Wheel for CNC ToolsUS$ 1 - 50MOQ: 1 Unit
Brand Name
moresuperhard
Place of Origin
China
Model Number
3A1
Size
3A1
Type
Abrasive Disc

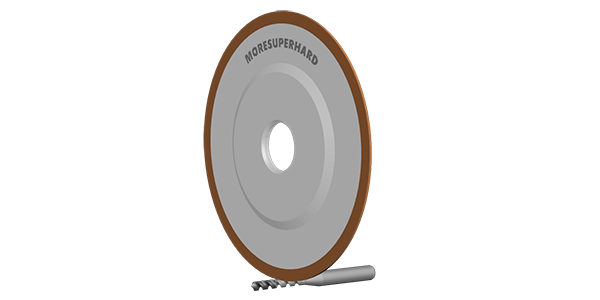

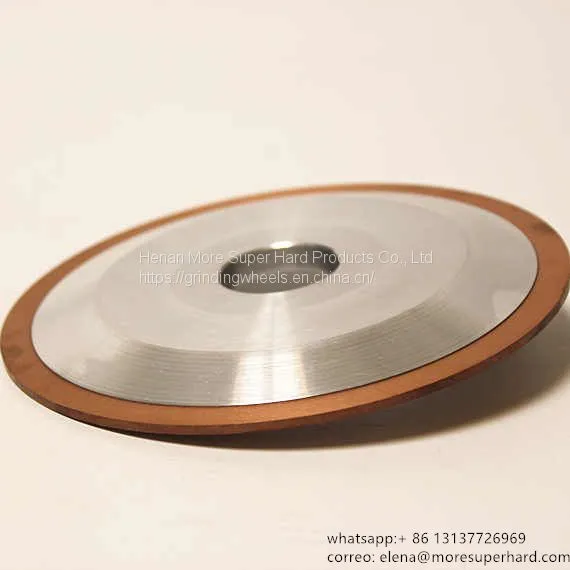

Micro Drill Grinding - Resin bond Diamond Wheel
► Type: 3A1
► Bonded: resin bonded
► Application: precision grinding micro drill tools
Advantages of micro tool grinding wheel:
* Good edge stability
* High cutting efficiency
* Minimal reject-part rates
* Good round tool quality
► Bonded: resin bonded
► Application: precision grinding micro drill tools
Advantages of micro tool grinding wheel:
* Good edge stability
* High cutting efficiency
* Minimal reject-part rates
* Good round tool quality

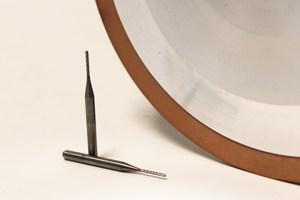

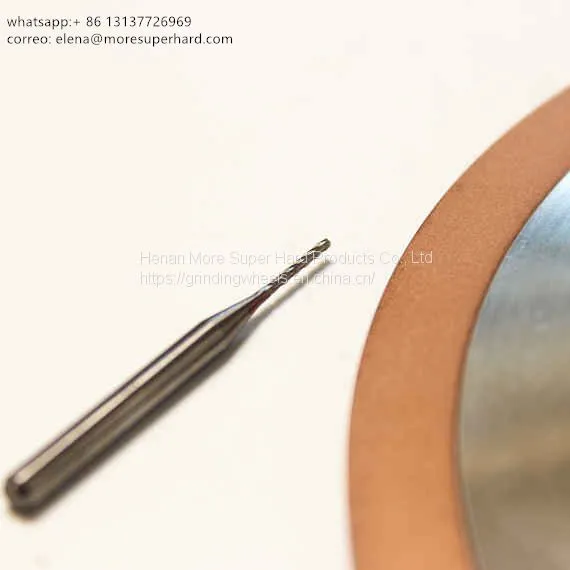

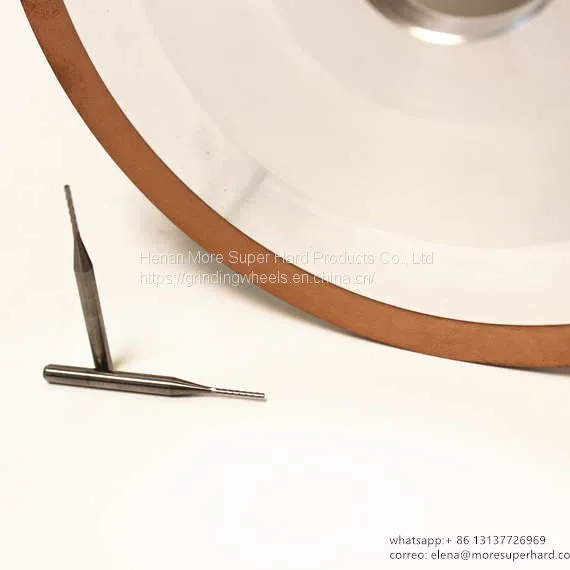

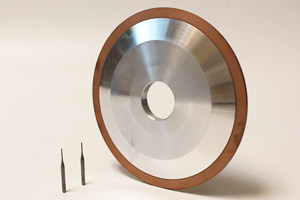

precision grinding micro drill tool - resin bonded diamond & cbn wheel
Resin bond diamond & cbn wheels mainly used for small diameter tungsten, stainless steel or hss drills, micro drills, and end mills used in electronics, medical technology, and the automotive industry.
Suitable Grinding Machine:
Startech, Kimer K360, Rollomatic, SAACKE, HAWEMA, Walter Helitronic, ANCA, Schneeberger Norma, DMG MORI, WALTER, EWAG and other all CNC tool grinding machines.
Specifications of micro drill grinding wheel
| Type | D (mm) |
T (mm) |
H (mm) |
W (mm) |
X (mm) |
| 4B1 | 150 | 24 | 20,31.75 | 4,6 | 2,3 |
| 200 | 20 | 20,31.75 | 6 | 3,6 | |
| 250 | 20 | 20,31.75 | 8 | 6,8 | |
| 4A9 | 80 | 6 | 20,25,31.75,40 | 10 | 6 |
| 100 | 8 | 20,31.75 | 10 | 6 | |
| 150 | 8 | 20,31.75 | 10 | 6 | |
| 3A1 | 100 | 6 | 20,31.75 | 6 | 1,4 |
| 125 | 8 | 20,31.75 | 6,8 | 4,1.5 | |
| 150 | 6,8 | 20,31.75 | 6,8 | 4,2 |
