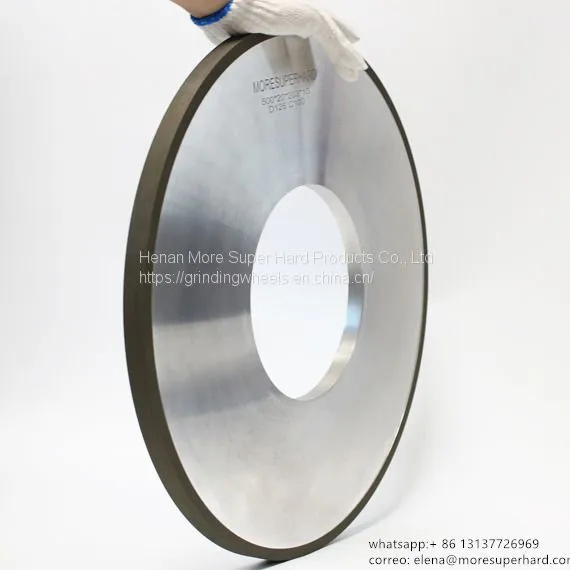

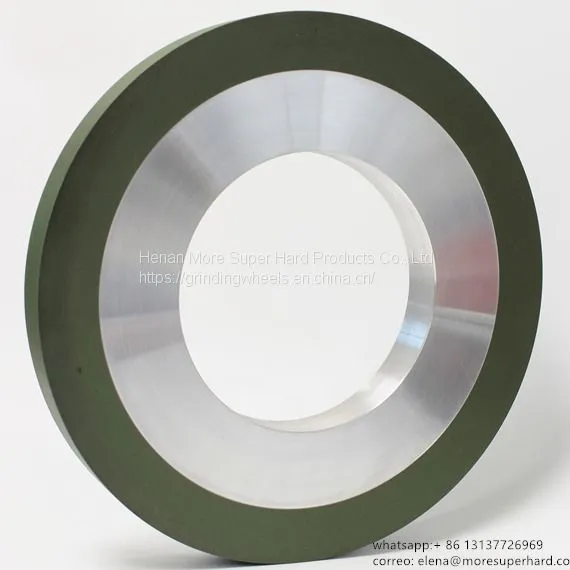

Resin Diamond Wheel for PDC Cutter / Drill Bits Grinding
US$ 1 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
moresuperhard
Place of Origin:
China
Model Number:
1A1
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHENGZHOU
Delivery Detail:
7 days
Related Products
-
Centerless Diamond Grinding Wheel - Resin BondUS$ 1 - 50MOQ: 1 Piece -
Micro Drill Grinding - Resin Bond Diamond WheelUS$ 1 - 50MOQ: 1 Piece
-
Carbide Indexable Inserts Grinding WheelUS$ 1 - 50MOQ: 1 Piece
-
Diamond & CBN Sanding BeltsUS$ 1 - 50MOQ: 1 Unit
-
Carbide Circular Saw Sharpening Diamond WheelUS$ 1 - 50MOQ: 1 Unit
Brand Name
moresuperhard
Place of Origin
China
Model Number
1A1
Size
1A1
Type
Abrasive Disc
Resin Diamond Wheel for PDC Cutter / Drill Bits Grinding
More Superhard provides precise solutions for cylindrical grinding PDC cutter, repairing PDC drill bits in Oil & Gas industry. We can supply diamond tools include,
► Vitrified Diamond Wheel for Cylindrical Grinding PDC Cutter / PDC Drill Bits
► Resin Diamond Wheel for Cylindrical Grinding PDC Cutter / PDC Drill Bits
► Cylindrical Diamond Wheel for PDC Cutter chamfer grinding
Model: 1A1 diamond wheel (diameter up to 1100mm)
► Vitrified Diamond Wheel for Cylindrical Grinding PDC Cutter / PDC Drill Bits
► Resin Diamond Wheel for Cylindrical Grinding PDC Cutter / PDC Drill Bits
► Cylindrical Diamond Wheel for PDC Cutter chamfer grinding
Model: 1A1 diamond wheel (diameter up to 1100mm)
Polycrystall Diamond Compacts PDC grinding - Resin Bond Diamond Wheel
We supply diamond tools for the oil and gas industry, providing precise solutions for grinding wheels for PCD/carbide, wear parts and gage blocks for oil & gas drill manufacturing. Especially Centerless grinding wheels, OD grinding products, as well as grinding wheels for PCD chamfer grinding
Specifications of diamond cylindrical wheel
| Diameter (mm) | Diameter (inch) | H (mm) | T (mm) | X (mm) |
| 400 | 16 inch | 127 | 25, 50 | 10, 25 |
| 500 | 20 inch | 127, 203.2 | 25, 50 | 10, 25 |
| 600 | 24 inch | 254 | 25, 50 | 10, 16, 25 |
| 750 | 30 inch | 304.8 | 50 | 10 |
| 914.4 | 36 inch | 304.8 | 25, 50 | 10, 25 |
| 1100 | 43 inch | 304.8 | 50 | 10 |
| Other specification can be made according to customer requirement Email:info@moresuperhard.com | ||||
Cylindrical Grinding PDC Cutter - Vitrified bond Diamond Wheel
Vitrified diamond cylindrical wheel for rough grinding cylinder of polycrystalline diamond compacts ( pdc cutter). Compared with resin diamond wheel, thr vitrified diamond wheel lead to 35% grinding cost reduced, 40% grinding time of each pdc saved, and the size precision of pdc improved.
Model |
D (mm) |
T (mm) |
H (mm) |
X (mm) |
1A1 |
350 |
40 | 127 |
10 |
| 400 | 40 50 | 203 | 10 |
|
400 |
40 50 | 305 | 10 |
Centerless Grinding Wheel for Precision Grinding PDC (polycrystalline diamond compacts)
| Model | D (mm) | T (mm) | H (mm) | X (mm) |
| 1A1 6A1 9A1 |
300 | 150 | 120 | 5, 10 |
| 350 | 125 | 127 | 5, 10 | |
| 400 | 150 | 203 | 5, 10 | |
| 455 | 205 | 228.6 | 5, 10 | |
| 500 | 150 | 305 | 5, 10 | |
| 650 | 380 | |||
| Round run-out of grinding wheel ≤0.02mm Straightness ≤ 0.02 mm | ||||
