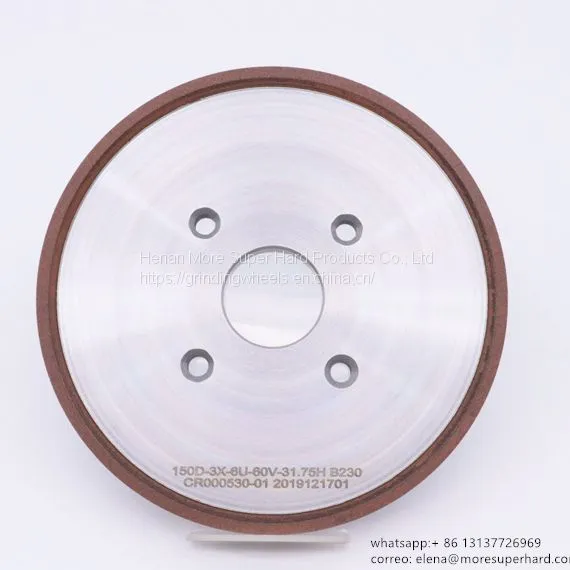

Gear Hob Cutter Sharpening - CBN Wheel
US$ 1 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
moresuperhard
Place of Origin:
China
Model Number:
4V9, 4BT9, 4V4
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHENGZHOU
Delivery Detail:
7 days
Related Products
-
Resin Bond Diamond Grinding Wheel for CarbideUS$ 1 - 50MOQ: 1 Piece -
Diamond Cylindrical Wheel for Thermal Spraying CoatedUS$ 1 - 50MOQ: 1 Piece
-
Resin Diamond Wheel for PDC Cutter / Drill Bits GrindingUS$ 1 - 50MOQ: 1 Piece
-
Centerless Diamond Grinding Wheel - Resin BondUS$ 1 - 50MOQ: 1 Piece
-
Micro Drill Grinding - Resin Bond Diamond WheelUS$ 1 - 50MOQ: 1 Piece
Brand Name
moresuperhard
Place of Origin
China
Model Number
4V9, 4BT9, 4V4
Size
4V9, 4BT9, 4V4
Type
Abrasive Disc
Gear Hob Cutter Sharpening - CBN Wheel
► Model: 4V9, 4BT9, 4V4
► Application: High - Speed Steel HSS Hobs
► Used Green silicon carbide grinding wheel dress
► Application: High - Speed Steel HSS Hobs
► Used Green silicon carbide grinding wheel dress

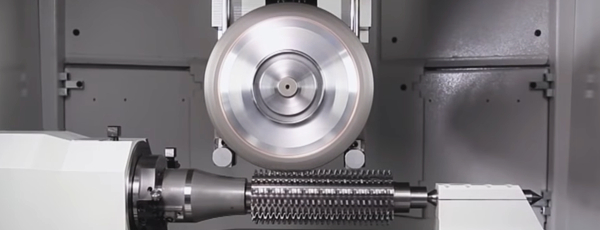

Gear Hob Sharpening
CBN grinding wheel are CBN (Cubic Boron Nitride) grinding wheels are specially used for gear hob cutter grinding. CBN (Cubic Boron Nitride) due to its hardness, thermal resistance which is higher than diamond's, allowing work at 1,900°C (3,500°F), and the good chemical resistance of CBN to ferrous alloys. The roughness and sharpness is the most important for the CBN wheels.
Specification of cbn wheel for gear hob sharpening
Shape |
D (mm) |
W (mm) |
H (mm) |
X (mm) |
T (mm) |
V° |
| 4BT9 |
100 |
10 |
20 |
1 |
10 |
5 |
150 |
10 |
50.8 |
3 |
10 |
8 |
|
| 4V4 |
100 |
6 |
20 |
1 |
10 |
10 |
Other size can be customized according to customers' requirement. | ||||||
The case of Metal bond CBN wheel for sharpening hob cutter
| Application | Hob Sharpening |
| Wheel sizes | 14EE1 - CBN grinding wheel-D150xT10 B30 C125 R0.09 |
| Machine | SEIWA |
| Coolant | Neat Oil |
| Wheel speed | 1000 1500rpm |
| Feed speed | 400mm/min |
| Work-piece | HSS HOB |
| Material | DM05 |
| Hardness | 68HRC |
| Depth of pass | 0,5mm |
| Roughness achieved | 0,1 µm Ra |
| Cycle time | 15 minutes |
