Help CenterGrinding Wheel for Punch Machine
US$ 1 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
moresuperhard
Place of Origin:
China
Model Number:
3A1
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHENGZHOU
Delivery Detail:
7 days
Related Products
-
Optical Profile Grinding WheelUS$ 1 - 50MOQ: 1 Piece -
Paper Mill Cutter Grinding - Resin CBN WheelsUS$ 1 - 50MOQ: 1 Piece
-
Grinding Wheel for 4 Axis Tool Sharpening MachineUS$ 1 - 50MOQ: 1 Piece
-
Hybrid Diamond & CBN WheelsUS$ 1 - 50MOQ: 1 Piece
-
Gear Hob Cutter Sharpening - CBN WheelUS$ 1 - 50MOQ: 1 Piece
Brand Name
moresuperhard
Place of Origin
China
Model Number
3A1
Size
3A1
Type
Abrasive Disc
Grinding Wheel for Punch Machine
► Application: for punge grinding machine
► Bonded: resin bond & electroplated bond
► Shape: 3A1
► Bonded: resin bond & electroplated bond
► Shape: 3A1
Grinding Wheel for Punge Machine

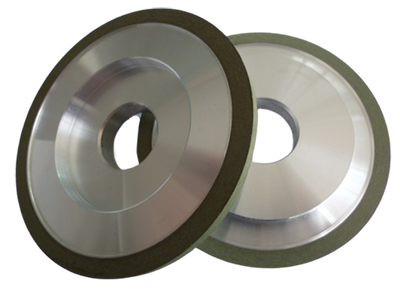

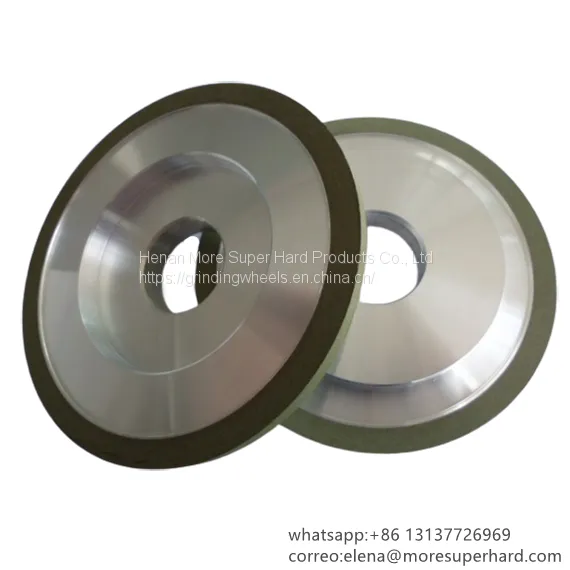

Resinoid Diamond Grinding Wheel for Punch Machine
► The abrasive has a special crystal shape, high durability, and a sharp crystal shape, which is more suitable for contact with the surface of the workpiece during the grinding process
► The grinding wheels have undergone rigorous testing ( such as, swing, roundness, runout index, dimensional accuracy, visual inspection, etc). To ensure the accuracy of installation
► The grinding efficiency is high, and the grinding wheel consumption is relatively slow
► Good self-sharpening, low heat generation during grinding, not easy to block
► The grinding wheel has a certain degree of elasticity, which helps to improve the roughness of the workpiece surface

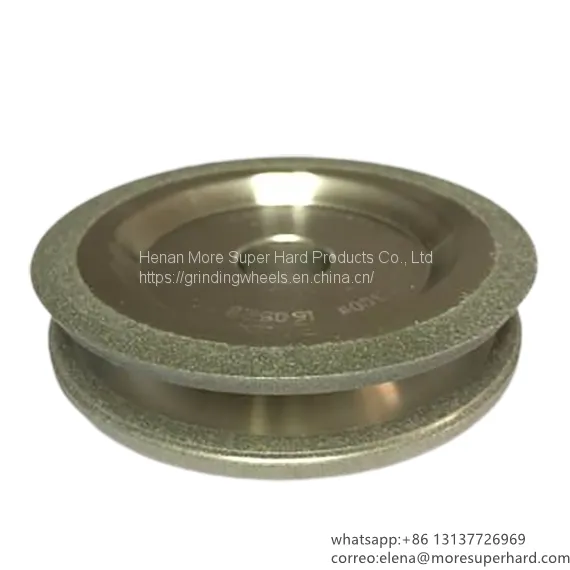

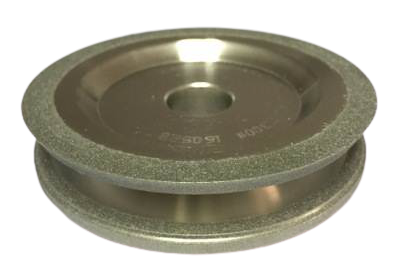

Electroplated Diamond Wheel for Punch Machine
The grinding wheel is used for grinding low iron content metal and non-metal hard brittle material
High hardness, high compressive strength, good wear resistance and no need dressing
| size | 100*3*25.4*10 | Grinding mode | Face grinding |
| abrasive | diamond | linear speed | ７５（M/S） |
| roundness | ２（μm） | cylindricity | ２（μm） |
| grit | 80# - 1200# | application | mold and die |
| shape | Cup shape | bonded | Resin bond |
► The abrasive has a special crystal shape, high durability, and a sharp crystal shape, which is more suitable for contact with the surface of the workpiece during the grinding process
► The grinding wheels have undergone rigorous testing ( such as, swing, roundness, runout index, dimensional accuracy, visual inspection, etc). To ensure the accuracy of installation
► The grinding efficiency is high, and the grinding wheel consumption is relatively slow
► Good self-sharpening, low heat generation during grinding, not easy to block
► The grinding wheel has a certain degree of elasticity, which helps to improve the roughness of the workpiece surface
Electroplated Diamond Wheel for Punch Machine
The grinding wheel is used for grinding low iron content metal and non-metal hard brittle material
High hardness, high compressive strength, good wear resistance and no need dressing
| size | D100mm * H25.4mm * T20mm | abrasive | diamond |
| shape : | 3A1 | bonded : | electroplated |
| cylindricity<:> | 0.01 | bonded : | electroplated |
| application : | Punch grinding machine | grit | 320# |
| roundness<:> | 0.01 | speed: | 1200 |
