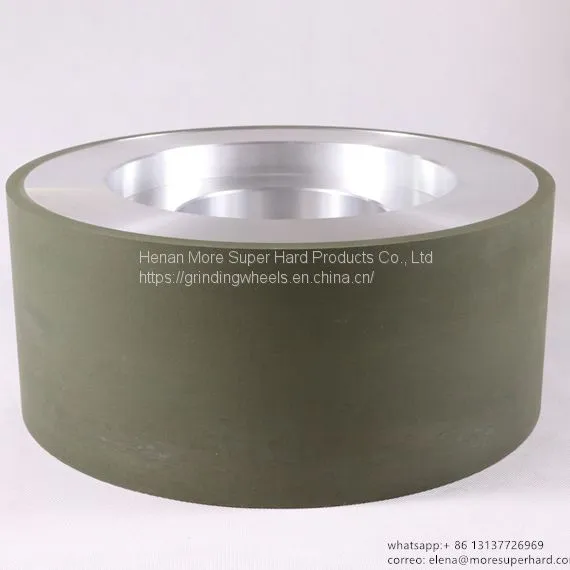

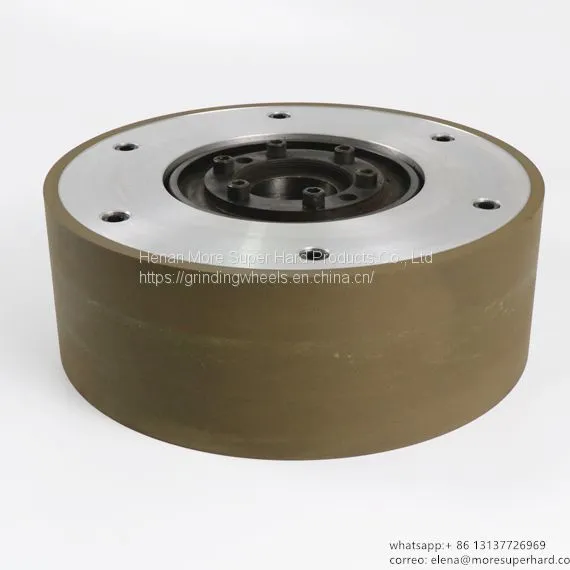

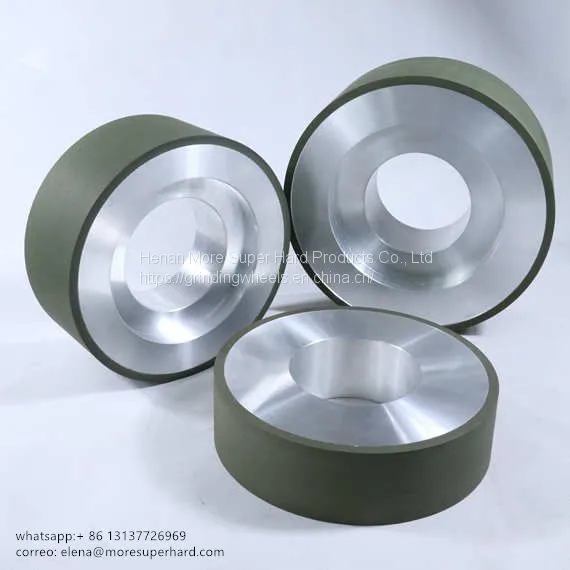

Centerless Diamond Grinding Wheel - Resin Bond
US$ 1 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
moresuperhard
Place of Origin:
China
Model Number:
1A1 , 6A1, 9A1
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHENGZHOU
Delivery Detail:
7 days
Related Products
-
Micro Drill Grinding - Resin Bond Diamond WheelUS$ 1 - 50MOQ: 1 Piece -
Carbide Indexable Inserts Grinding WheelUS$ 1 - 50MOQ: 1 Piece
-
Diamond & CBN Sanding BeltsUS$ 1 - 50MOQ: 1 Unit
-
Carbide Circular Saw Sharpening Diamond WheelUS$ 1 - 50MOQ: 1 Unit
-
Diamond Lapping Disc for GemstoneUS$ 1 - 50MOQ: 1 Unit
Brand Name
moresuperhard
Place of Origin
China
Model Number
1A1 , 6A1, 9A1
Size
1A1 , 6A1, 9A1
Type
Abrasive Disc
Centerless Diamond Grinding Wheel - Resin Bond
► Application: grinding carbide, ceramic, magnetic materials, stainless steel bar, PCD & PCBN compositives
► Model: 1A1 , 6A1, 9A1
► Bonded Type: Resin bond, Metal bond
► Model: 1A1 , 6A1, 9A1
► Bonded Type: Resin bond, Metal bond
► Centerless Grinder Machine: Koyo, Crystec, Dedtru, Landis , Okuma, Paragon, Royal Master, Unison, WMV
centerless grinding - resin bonded

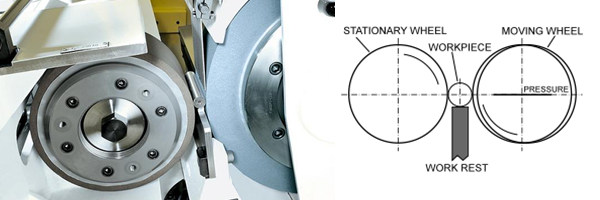

Centreless (centerless) grinding can perform excellent roundness of the work piece.The workpiece is supported by a work rest blade and set between a rubber regulating wheel that rotates the workpiece and a rotating grinding wheel
Applications: Rough, semi-finish and finish grinding tungsten carbide, ceramics, magnetic material, stainless steel bar, PCD and PCBN compositives

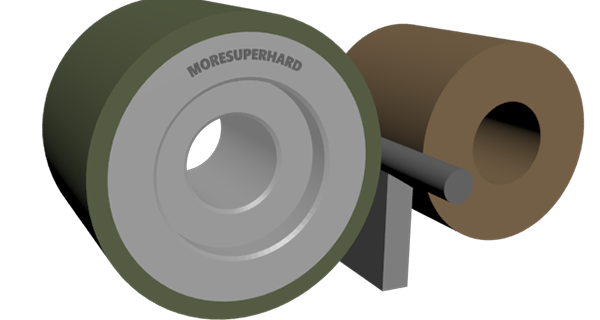

Centerless grinding wheel manufacturing
Applications: Rough, semi-finish and finish grinding tungsten carbide, ceramics, magnetic material, stainless steel bar, PCD and PCBN compositives
Centerless grinding wheel manufacturing
Specifications of centerless diamond grinding wheel
| Model | D (mm) | T (mm) | H (mm) | X (mm) |
| 1A1 6A1 9A1 |
300 | 150 | 120 | 5, 10 |
| 350 | 125 | 127 | 5, 10 | |
| 400 | 150 | 203 | 5, 10 | |
| 455 | 205 | 228.6 | 5, 10 | |
| 500 | 150 | 305 | 5, 10 | |
| 650 | 380 | |||
| Round run-out of grinding wheel ≤0.02mm Straightness ≤ 0.02 mm | ||||
