Help CenterDiamond & CBN Sanding Belts
US$ 1 - 50
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
moresuperhard
Place of Origin:
China
Model Number:
150mm - 5000mm
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHENGZHOU
Delivery Detail:
7 days
Related Products
Brand Name
moresuperhard
Place of Origin
China
Model Number
150mm - 5000mm
Size
150mm - 5000mm
Type
Sanding Paper
Diamond & CBN Sanding Belts
► Bond: Metal nickel plating electroplated bond & Resin bond (resin bond also consists of flexible and hard type)
► Length: 150mm - 5000mm
► Width: 5mm - 350mm
Case 1 diamond belts for grinding carbide roll (HVOF spraying coating)
► Length: 150mm - 5000mm
► Width: 5mm - 350mm
► Grit: #60,#100,#120,#200,#400,#800,#1500,#2000,#3000,#5000
Diamond CBN Sanding Abrasive Belts
Applications of diamond and cbn sanding belts
Diamond & CBN sanding abrasive belt can be widely used for grinding steel, stone, glass, ceramics, monocrystalline silicon, polysilicon, zirconia, alumina, metal-nonmetallic synthetic materials, cemented carbide, aluminum-magnesium alloy, aluminum beryllium alloy, titanium alloy and etc. hard brittle materials.

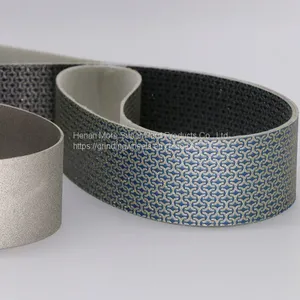

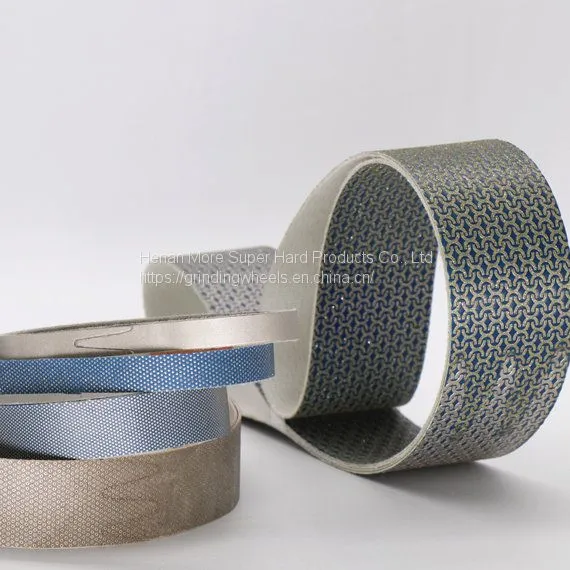

► Electroplated Bond Diamond Abrasive Belt

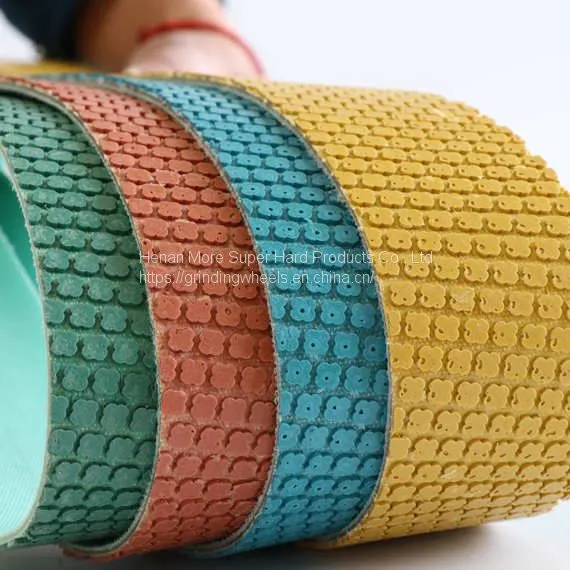

► Resin Bond Diamond Abrasive Belt
Diamond & CBN sanding abrasive belt can be widely used for grinding steel, stone, glass, ceramics, monocrystalline silicon, polysilicon, zirconia, alumina, metal-nonmetallic synthetic materials, cemented carbide, aluminum-magnesium alloy, aluminum beryllium alloy, titanium alloy and etc. hard brittle materials.
Classification of Diamond Sanding Belt
Bond: Diamond sanding abrasive belt is divided into metal nickel plating electroplated bond and resin bond, a resin bond also consists of flexible and hard type.
Pattern: There are many grinding advantages such as sharpness, durable, flexible, dry or wet grinding for diamond sanding abrasive belt with various patterns. Please choose different design patterns according to needs.
Backing Base: The main characteristics of the backing are thickness, softness, temperature resistance, and easy quickly removal. Select the backing base according to the material which will be ground.

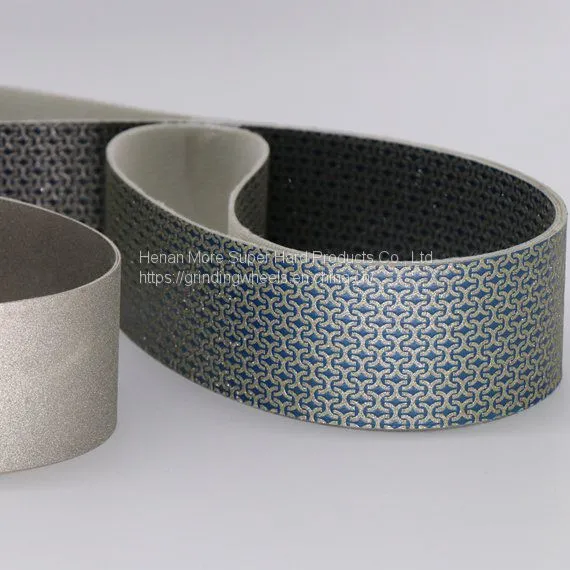

► Electroplated Bond Diamond Abrasive Belt

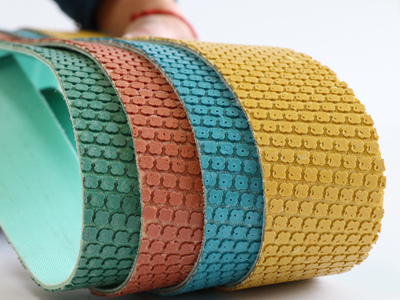

► Resin Bond Diamond Abrasive Belt
Parameters of Diamond Abrasive Belts
| Length | Width | Girt | ||
| (mm) | (inch) | (mm) | (inch) | #60,#100,#120, #200, #400, #800, #1500, #2000, #3000, #5000 |
| 150 - 5000 | 6” - 200” | 5 - 350 | 1/5 “ - 14” | |

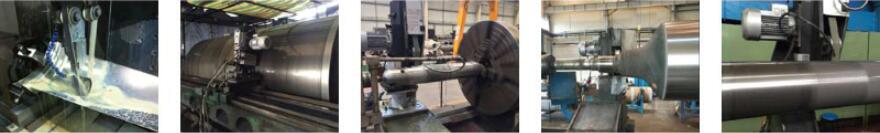

Case 1 diamond belts for grinding carbide roll (HVOF spraying coating)
| Workpiece diameter | 400mm*12 HVOF spraying |
| Grinding machine model | 65656 |
| Belt speed | 22 m/s (2800rpm) |
| Belt contact workpiece mode | soft contact or hard contact |
| Workpiece rotation speed | 30 RPM |
| Coolant | water or others |
| Spray coating thickness | 250μm |
| Original roughness of spray coating | Ra 0.4mm-0.6mm |
| Machining allowance of spray coating | 100μm |
| Coating thickness after processing | 150μm |
