Help CenterHybrid Diamond & CBN Wheels
US$ 1 - 50
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
moresuperhard
Place of Origin:
China
Model Number:
3V1 D150
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHENGZHOU
Delivery Detail:
7 days
Related Products
-
Gear Hob Cutter Sharpening - CBN WheelUS$ 1 - 50MOQ: 1 Piece -
Resin Bond Diamond Grinding Wheel for CarbideUS$ 1 - 50MOQ: 1 Piece
-
Diamond Cylindrical Wheel for Thermal Spraying CoatedUS$ 1 - 50MOQ: 1 Piece
-
Resin Diamond Wheel for PDC Cutter / Drill Bits GrindingUS$ 1 - 50MOQ: 1 Piece
-
Centerless Diamond Grinding Wheel - Resin BondUS$ 1 - 50MOQ: 1 Piece
Brand Name
moresuperhard
Place of Origin
China
Model Number
3V1 D150
Size
3V1 D150
Type
Abrasive Disc

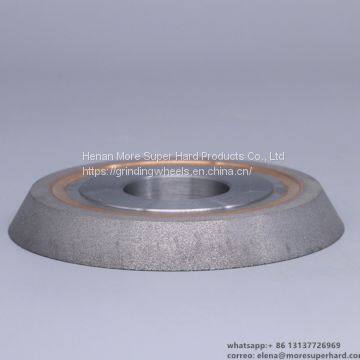

Hybrid Diamond & CBN Wheels
► Hybrid bond : resin (polyimide) and metal bond
► Application: fluting and gashing end mill, drill and reamer
Hybrid bond is used for grinding of solid shank cutting tool process (such as end-mills, drills and reamers)
► Hybrid bond Diamond Wheel : For carbide tool grinding
► Hybrid bond CBN Wheel : For HSS tool grinding
Advantages of hybrid diamond & cbn wheels
► Resin (polyimide) bond. Good grinding performance and surface roughness, elasticity, minimal chipping
► Metal bond. High wear resistance and high thermal stability, excellent grinding ability and long tool life
► Dressing interval: more than double
► Tool life: more than 1.5 times
► Application: fluting and gashing end mill, drill and reamer
► CNC Grinder: Anca, Walter, Ewag, Schneeberger, etc

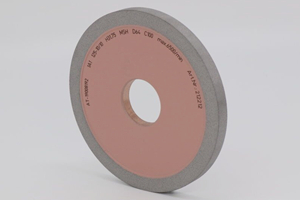

Hybrid Grinding Wheels
Hybrid bond is used for grinding of solid shank cutting tool process (such as end-mills, drills and reamers)
► Hybrid bond Diamond Wheel : For carbide tool grinding
► Hybrid bond CBN Wheel : For HSS tool grinding
Advantages of hybrid diamond & cbn wheels
► Resin (polyimide) bond. Good grinding performance and surface roughness, elasticity, minimal chipping
► Metal bond. High wear resistance and high thermal stability, excellent grinding ability and long tool life
► Dressing interval: more than double
► Tool life: more than 1.5 times
Cases of Hybrid Grinding Wheel
Case 1 – Fluting for carbide end mill
Case 2 – Gashing for carbide endmill
| Grinding wheel | 3V1 D150 |
| Machine | 5-axis CNC grinder |
| Coolant | Oil |
| Work piece | Carbide end mill |
| Grinding process | Flute |
| Feed rate | 140mm/min |
| Cutting speed | 18m/s |
Case 2 – Gashing for carbide endmill
| Grinding wheel | 12v9 D125 |
| Machine | ANCA 5-axis CNC grinder |
| Coolant | Oil |
| Work piece | Carbide end mill |
| Grinding process | Gash |
| Feed rate | 60 mm/min |
| Cutting speed | 20 m/s |
