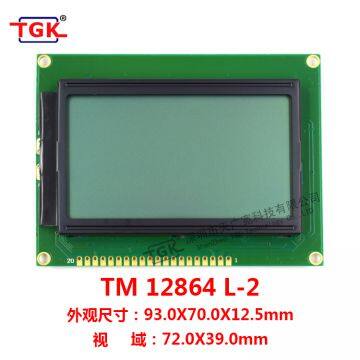

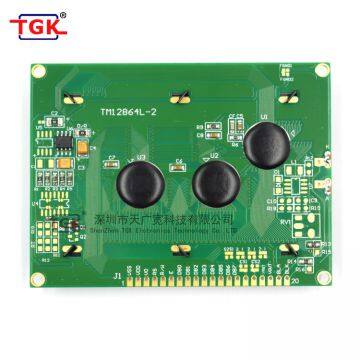

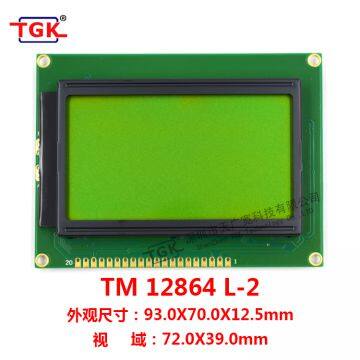

Help Center128X64 Lcd Screen TM12864L-2 High-quality 93x70mm Size Stn Lcd 12864 Screen Lcd 128X64 Display Screen 12864 Lcd Module
Related Products
-
128X64 Lcd Modules TM12864L-4 Centered Bottom Double Row Interface 93x70mm Size Stn Lcd 12864 Screen Lcd 128X64 Display Screen 12864 Lcd ModuleUS$ 5 - 5.5MOQ: 1 Piece -
12864 Lcd Modules TM12864L-5 Upper and Lower Double-row Interface 93x70mm Size Stn Lcd 12864 Screen Lcd 128X64 Display Screen 12864 Lcd ModuleUS$ 5 - 5.5MOQ: 1 Piece
-
Lcd 128X64 Modules TM12864Z-1 SPI Serial Parallel Port 93x70mm Size Stn Lcd 12864 Screen Lcd 128X64 DisplaysUS$ 4.5 - 4.8MOQ: 1 Piece
-
128X64 Lcd Display TM12864A-2 Big Size Big VA 113x65mm Size Stn Lcd 12864 Character Screen Module Lcd 20X4 Display Screen 2004 Lcd ModuleUS$ 6.5 - 7MOQ: 1 Piece
-
128X64 Lcd Display TM12864A-3 Big Size Big VA 113x65mm Size Stn Lcd 12864 Character Screen Module Lcd 20X4 Display Screen 2004 Lcd ModuleUS$ 6.5 - 7MOQ: 1 Piece
Model number: TM12864L-2 (standard product)
Glass type: STN yellow-green screen or blue screen
Number of dots: 128*64
Dimensions: 93*70*13mm (length, width and thickness)
Positioning size: 88.0*65.0mm
Iron frame appearance: 79.2X50.9X13.0mm
Field of view size: 72.0*39.0mm
Point distance: 0.52*0.52mm
Point size: 0.48*0.48mm
Controller: KS0107
Process form: COB
Backlight type: LED white light or yellow light
Display effect: white on blue, black on white, black on yellow
Data transmission: parallel port
This model is developed by the company and replaces a variety of products such as Topway. Hualing Optoelectronics. It has strong compatibility, strong anti-interference ability, and can prevent various interferences such as ultraviolet rays!
All of the company’s LCD screen products use four bright LED lights from Jufei Optoelectronics, with low current and high brightness. Each lamp circuit is 17 mA, which can reach the current brightness of ordinary non-brand LED lights (the normal current of LED lights should be 20 Below milliampere, more than 20 milliampere life will be seriously shortened and burn the lamp)
TGK TM12864 series has a variety of different sizes of screens, please contact customer service for any size you need to adapt the LCD screen to your product!
TGK professional LCD module production, quality assurance, quality assured! Welcome to talk in detail
