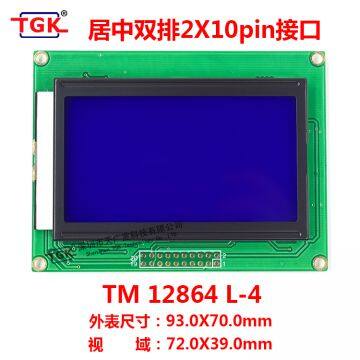

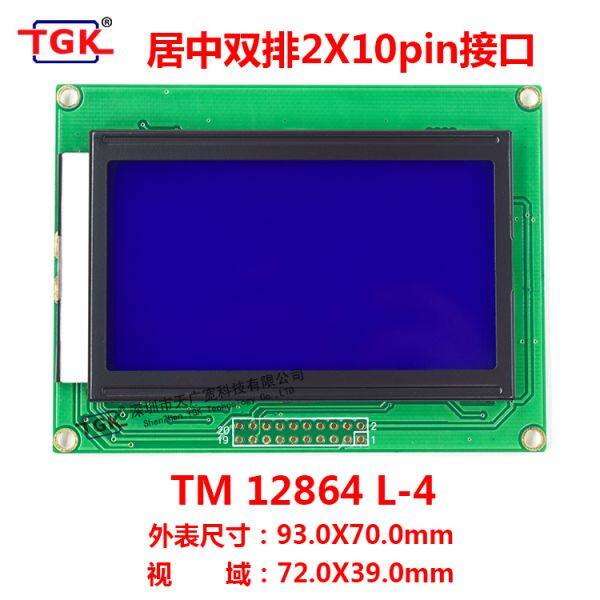

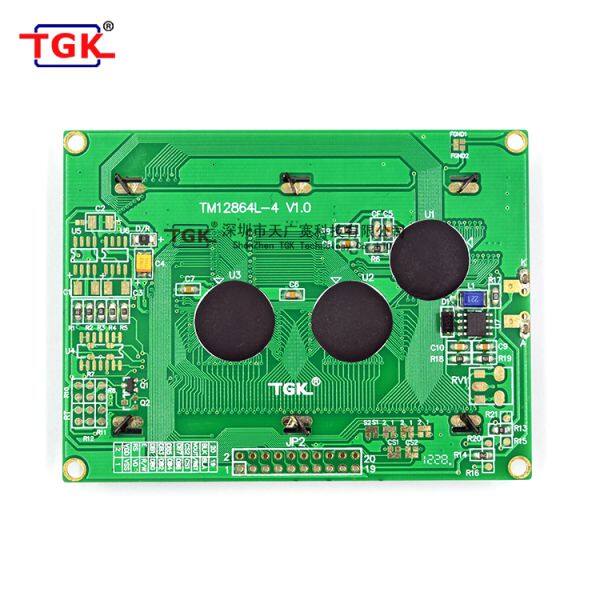

128X64 lcd modules TM12864L-4 Centered bottom double row interface 93x70mm size stn lcd 12864 screen lcd 128X64 display screen 12864 lcd module

Model number: TM12864L-4

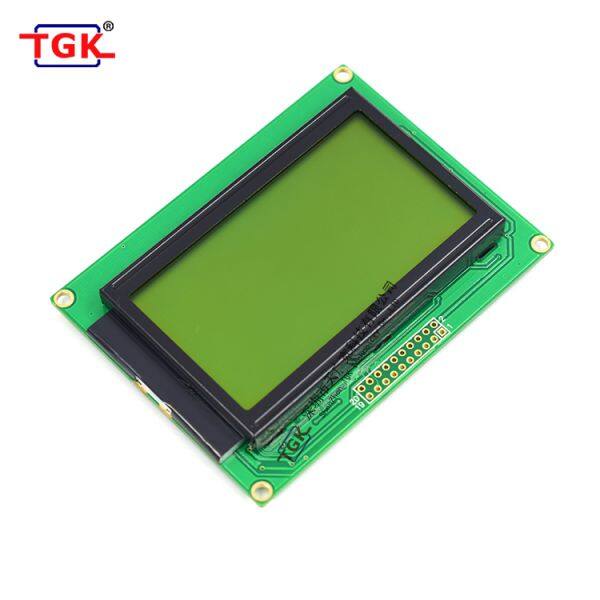

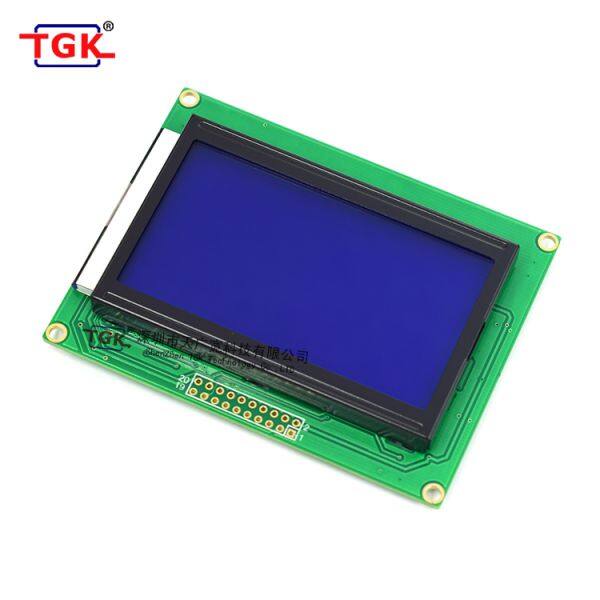

Glass type: STN yellow-green screen or blue screen or gray screen

Number of dots: 128*64

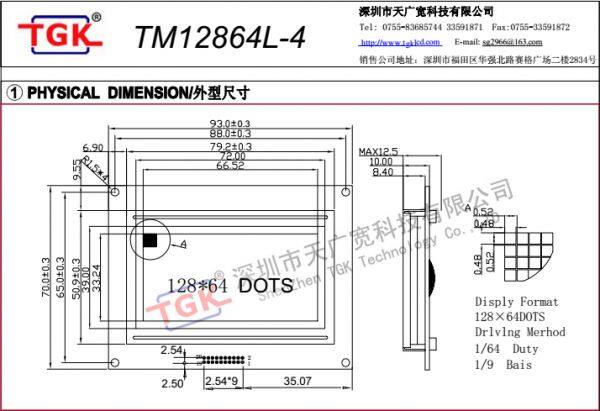

Dimensions: 93.0 X 70.0 X 12.5mm (length, width and thickness)

Positioning size: 88.0 X 65.0mm

Iron frame appearance: 79.2X50.9X13.0mm

Field of view size: 72.0 X 39.0mm

Point distance: 0.52 X 0.52mm

Point size: 0.48 X 0.48mm

Controller: KS0107

Process form: COB

Backlight type: LED white light or yellow light

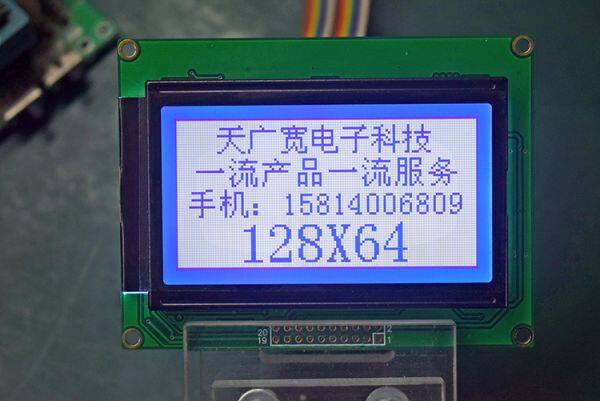

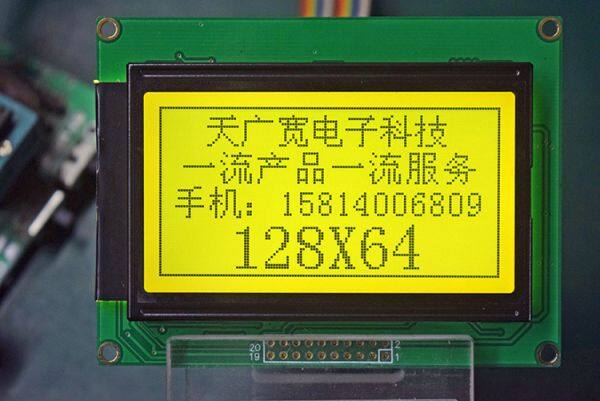

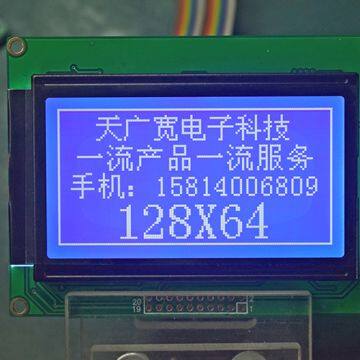

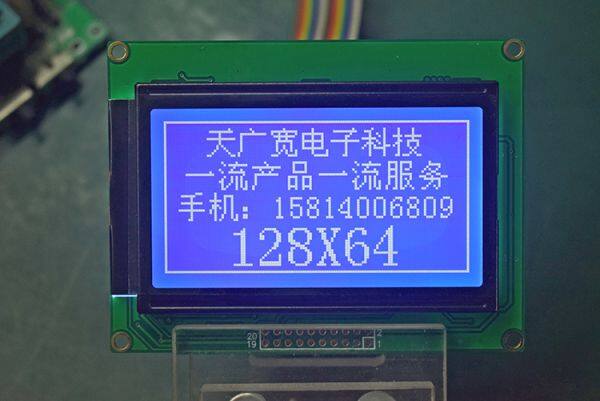

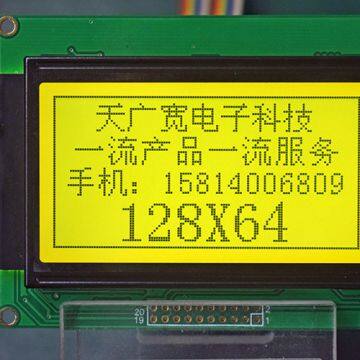

Display effect: white on blue, black on white, black on yellow

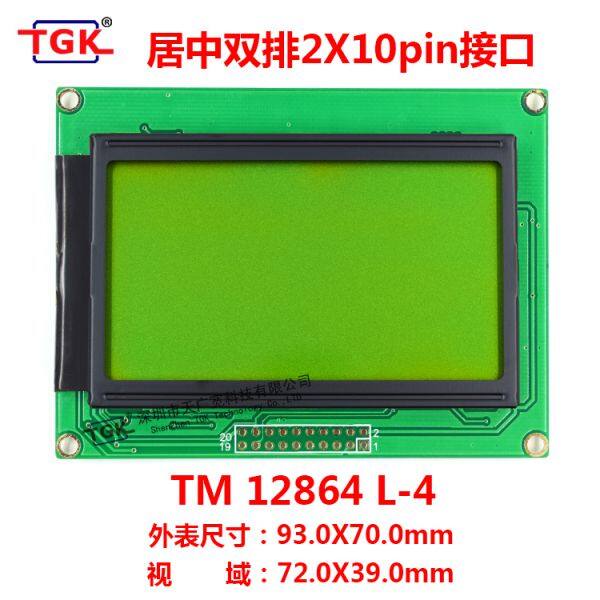

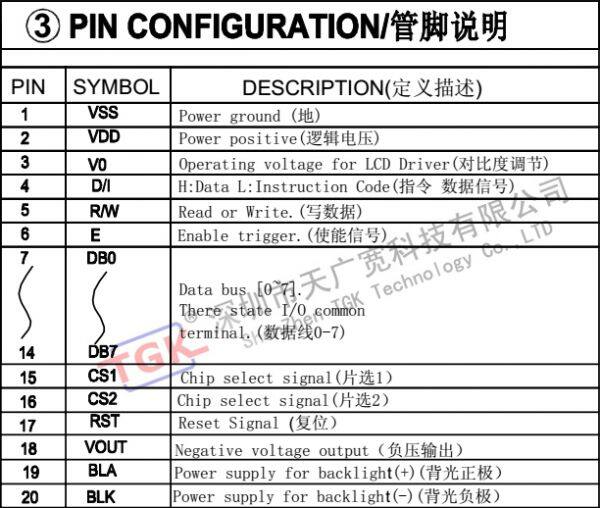

Data transmission: parallel port, double row 10PINX2 outlet

Wide temperature LCD screen: -20~+70°

All of the company’s LCD screen products use four bright LED lights from Jufei Optoelectronics, with low current and high brightness. Each lamp circuit is 17 mA, which can reach the current brightness of ordinary non-brand LED lights (the normal current of LED lights should be 20 Below milliampere, more than 20 milliampere life will be seriously shortened and burn the lamp)

TGK TM12864 series has a variety of different sizes of screens, please contact customer service for any size you need to adapt the LCD screen to your product!

TGK professional LCD module production, quality assurance, quality assured!
