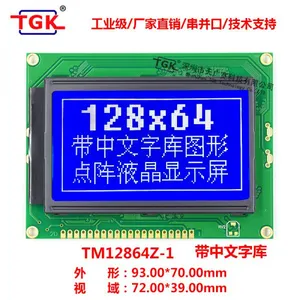

Lcd 128X64 Modules TM12864Z-1 SPI Serial Parallel Port 93x70mm Size Stn Lcd 12864 Screen Lcd 128X64 Displays

Model number: TM12864Z-1

Features: Built-in ST7920 simplified and traditional Chinese font controller, can be 3.3v, 5v power supply

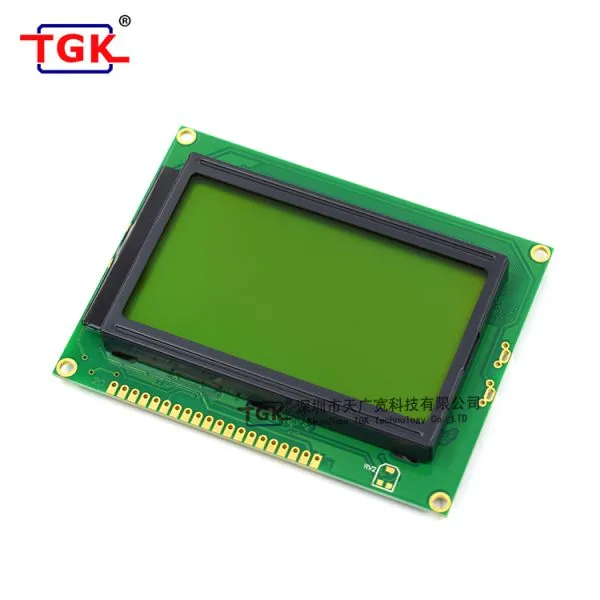

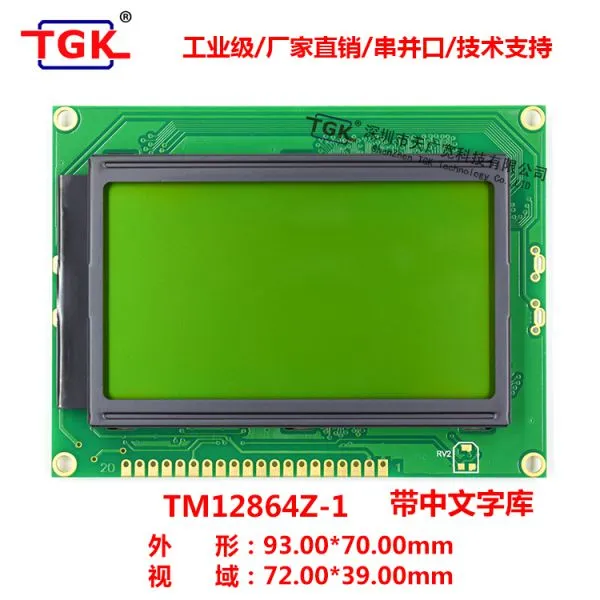

Glass type: STN yellow-green screen or blue screen

Number of dots: 128*64

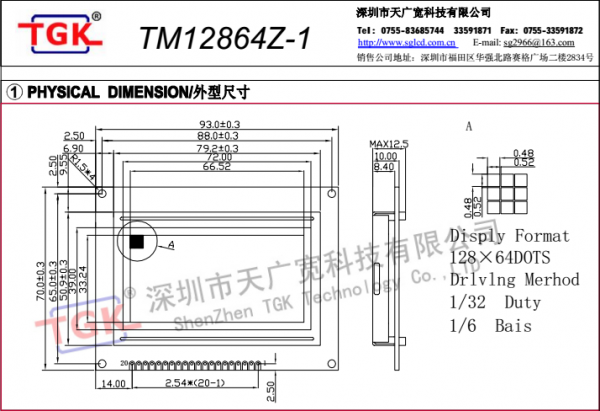

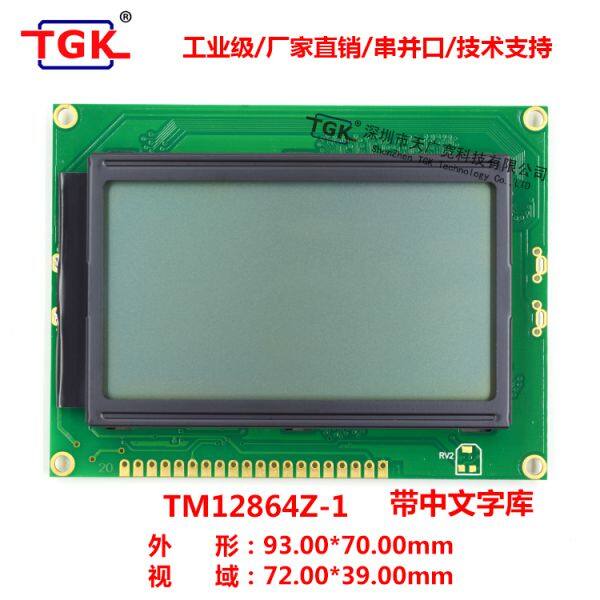

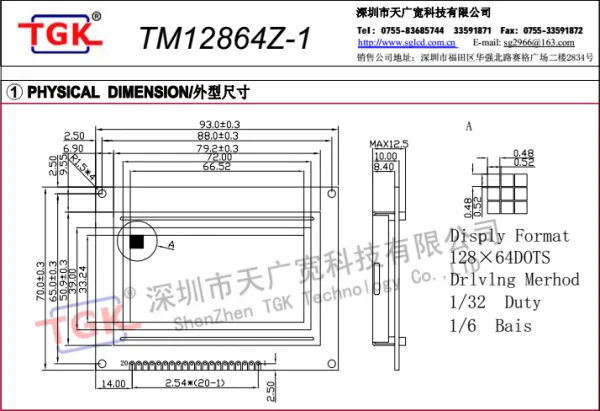

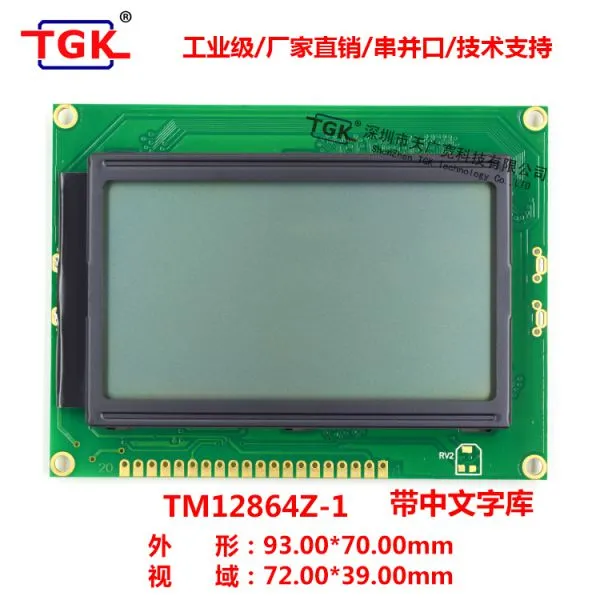

Dimensions: 93.0*70.0mm

Positioning size: 88.0*65.0mm

Field of view size: 72.0*39.0mm

Point distance: 0.52*0.52mm

Point size: 0.48*0.48mm

Controller: ST7920

Process form: COB

Data transmission: serial and parallel port compatibility

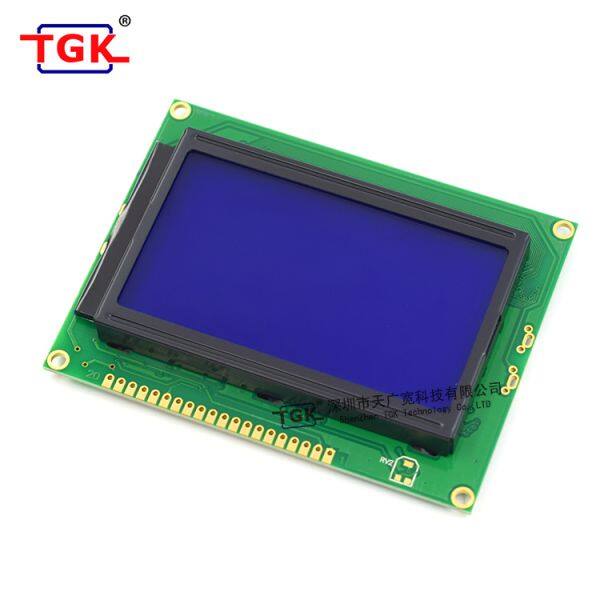

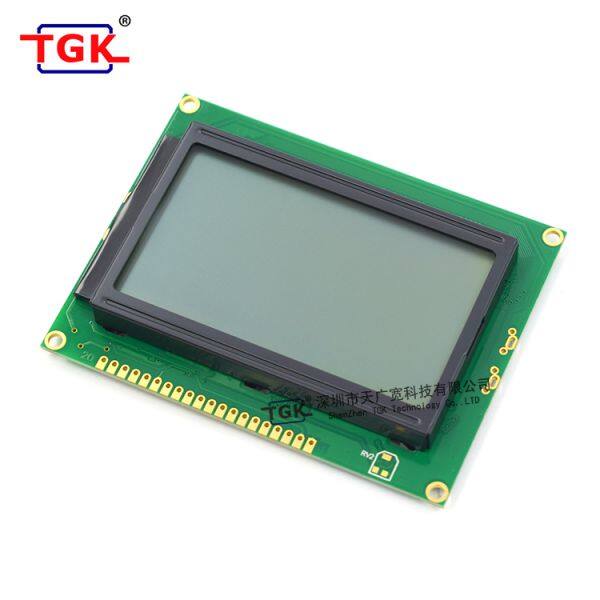

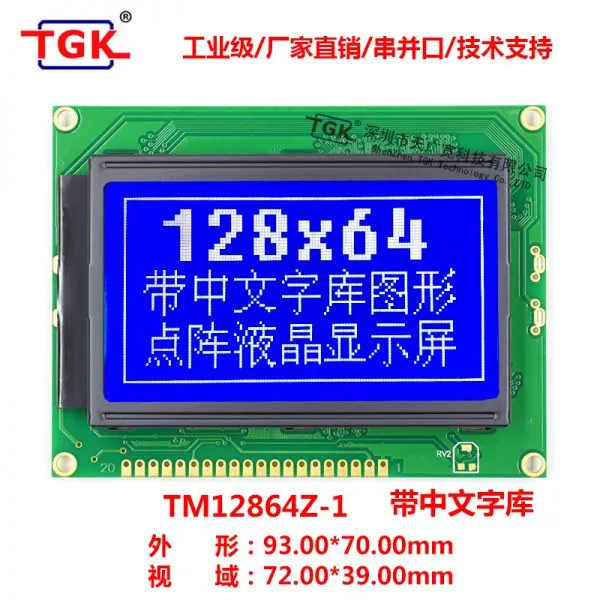

Display effect: white on blue, black on yellow, black on white, etc.

This baby is 93.00*70.00mm, built-in ST7920 simplified and traditional Chinese character library controller, which is commonly known as "12864 LCD screen with Chinese character library", and supports 3.3V, 5V power supply.

The store belongs to Shenzhen Tianguangkuan Technology Co., Ltd., a direct sales store of Tianguangkuan LCD module series, and directly contact the manufacturer.

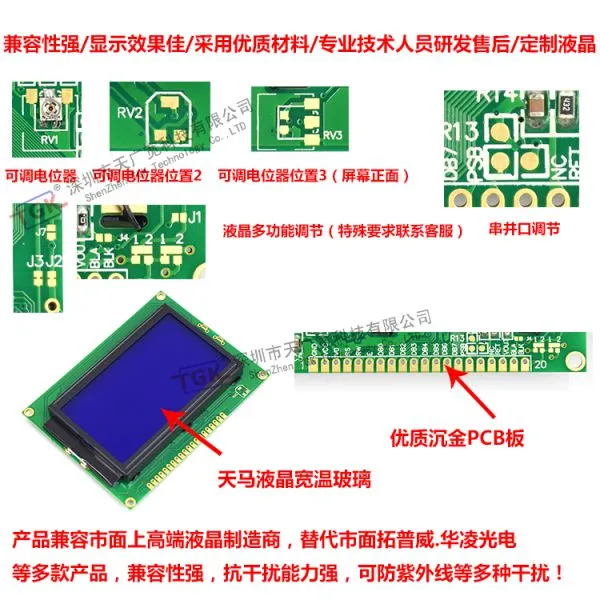

You can communicate configuration requirements with customer service, such as: adjusting the viewing angle, adjusting the viewing angle at 6 o'clock and 12 o'clock, fixed contrast adjustment, serial and parallel port adjustment, and special adjustments to reduce unnecessary welding during use.

All of the company’s LCD screen products use four bright LED lights from Jufei Optoelectronics, with low current and high brightness. Each lamp circuit is 17 mA, which can reach the current brightness of ordinary non-brand LED lights (the normal current of LED lights should be 20 Below milliampere, more than 20 milliampere life will be seriously shortened and burn the lamp)

Use Tianma wide temperature -20°~+70° liquid crystal glass

Purchase samples, place orders in batches, online and offline trading channels, welcome engineers and scientists from all industries to come and customize products for inquiries!

Professional LCD module manufacturer, all products can provide technical support, batch detailed discussion.
