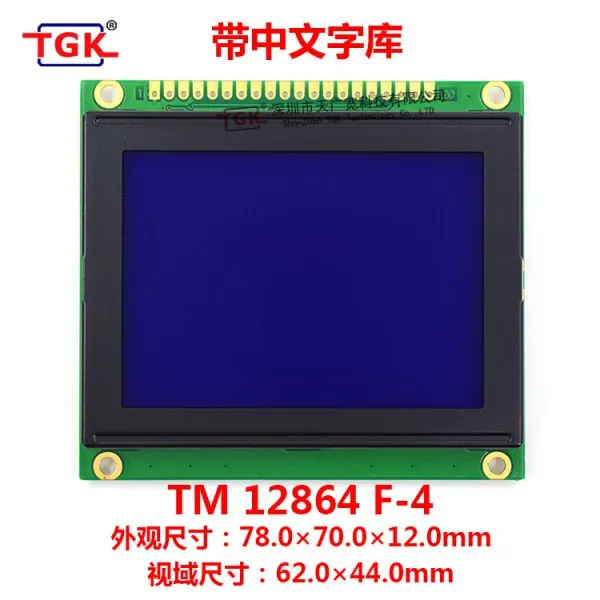

128X64 Lcd Display TM12864F-4 SPI Serial Port With Font 78x70mm Size Stn Lcd 12864 Screen Lcd 128X64 Display Screen 12864 Lcd Module

Model number: TM12864F-4 (standard product) LCD module with Chinese character library, support serial and parallel ports

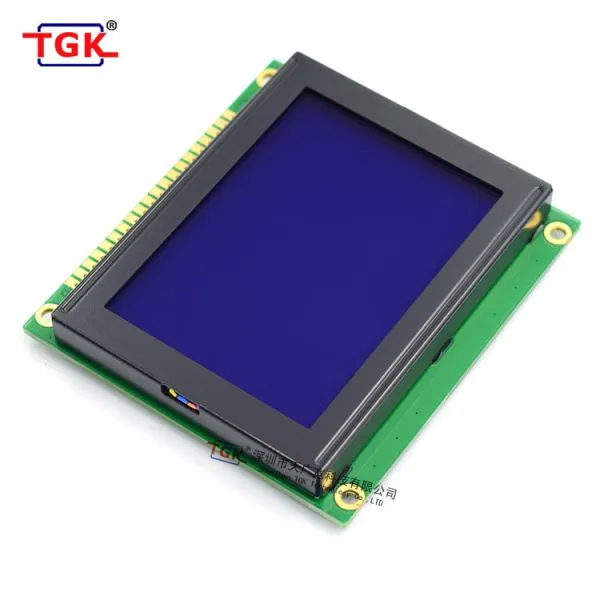

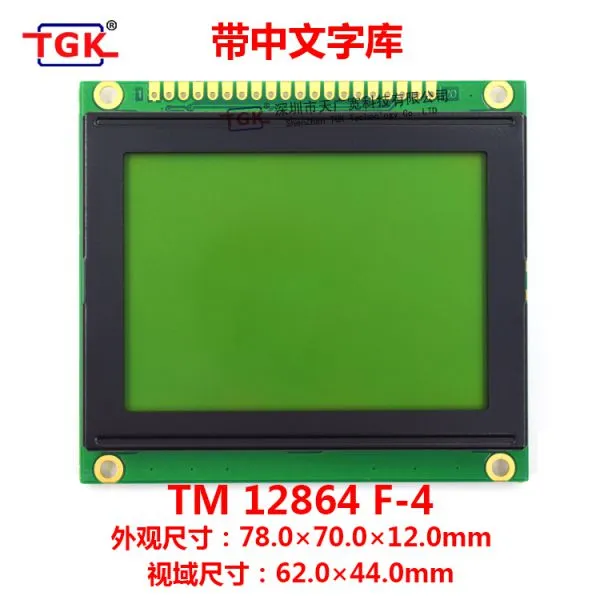

Glass type: STN yellow-green screen or blue screen

Number of dots: 128*64

Dimensions: 78*70*12mm (length, width and thickness)

Positioning size: 68.0*66.17mm

View size: 62.0*44.0mm

Point distance: 0.52*0.52mm

Point size: 0.48*0.48mm

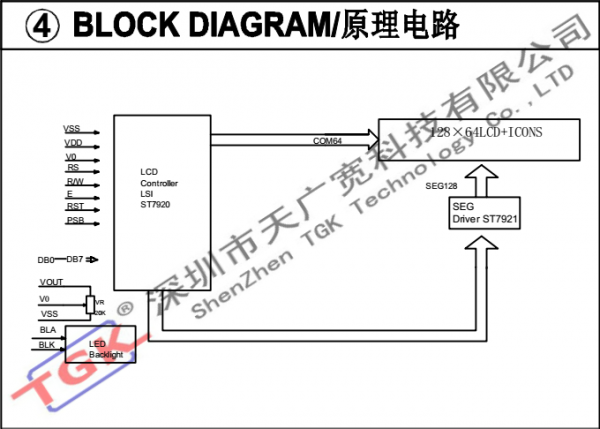

Controller: KS0107

Process form: COB

Backlight type: LED white light or yellow light

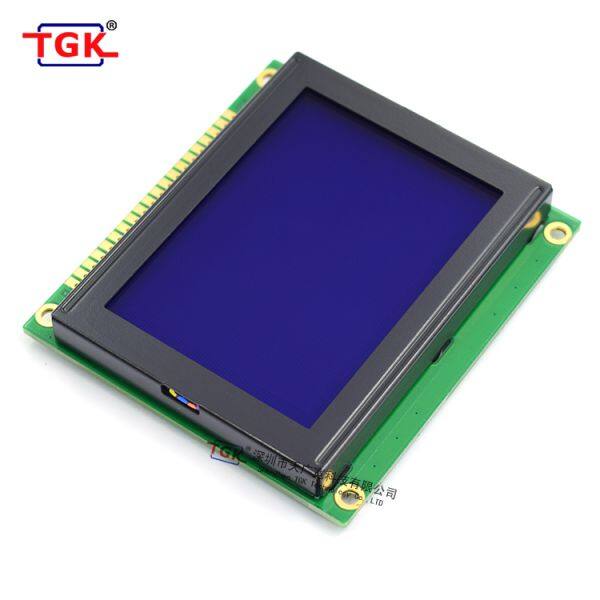

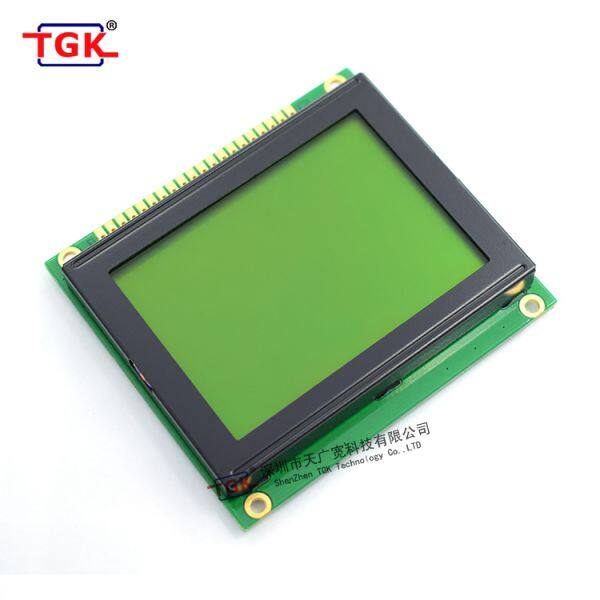

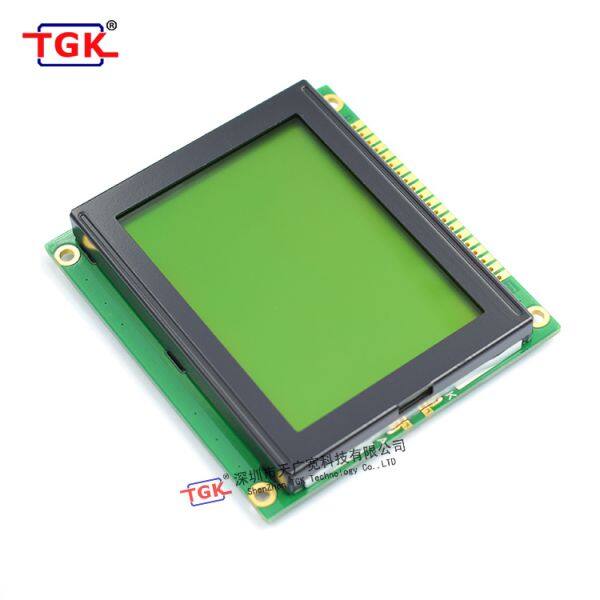

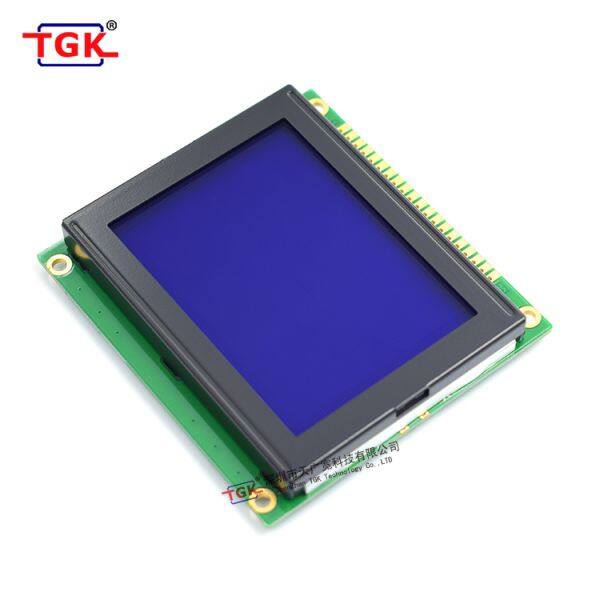

Display effect: white on blue, black on yellow, black on white.

Iron frame: off-white and black

Data transmission: parallel port, PCB export

The store belongs to Shenzhen Tianguangkuan Technology Co., Ltd., a direct sales store of Tianguangkuan LCD module series. Contact the manufacturer directly to provide you with technical support!

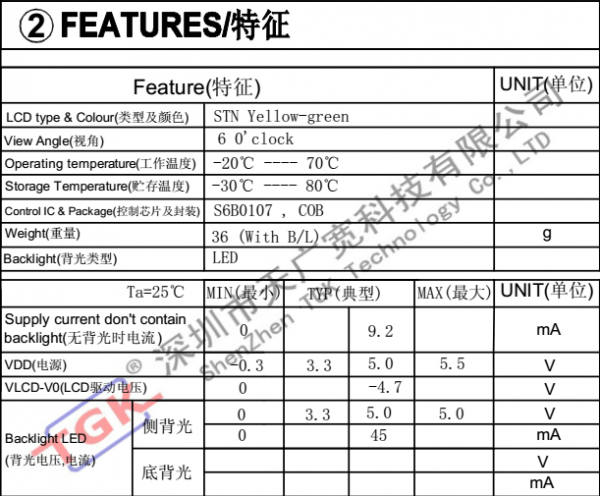

Wide temperature LCD screen: -20~+70° wide temperature glass (excellent display effect, strong anti-interference)

Backlight source: All of the company’s LCD screen products use four bright LED lights from Jufei Optoelectronics, with low current, high brightness and uniform diffusion. The current of each lamp is 17 mA, which can reach the current brightness of ordinary non-brand LED lights (30 mA). The normal current of the lamp should be below 20 mA, and the lamp life will be seriously shortened if the lamp exceeds 20 mA. The backlight can be powered independently or internally by default. It is simple and easy to use and will not generate AC interference signals.

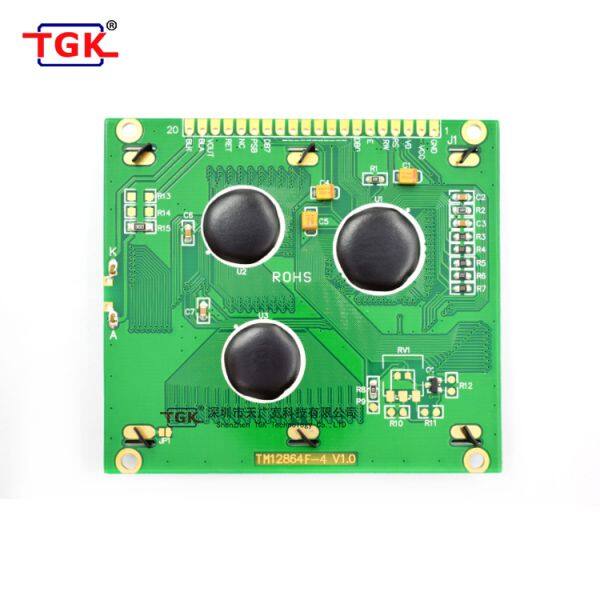

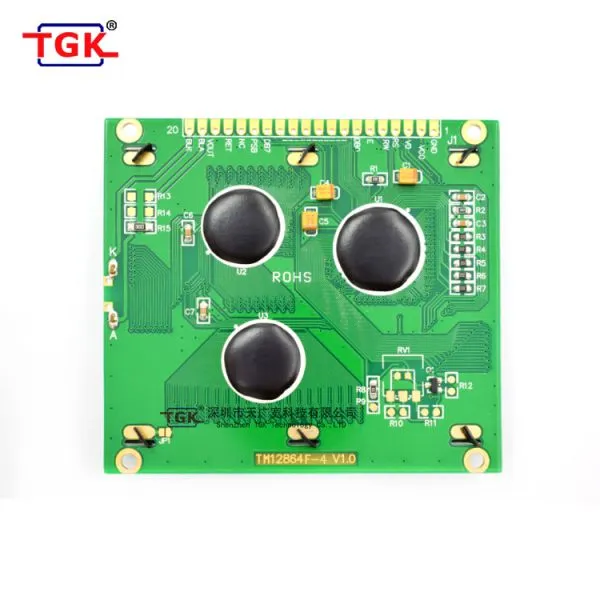

PCB board: high-quality immersion gold, ROSH certification, independent design and development, support customization, provide support

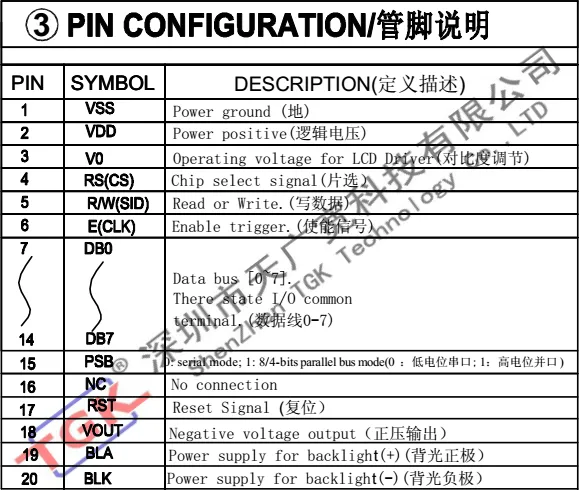

Command control function is strong: support serial port/parallel port, support dual layer mode; display from left to right, from top to bottom scanning mode; 8-bit one byte, can control the display with precision.

Calculate according to 16X16 dot matrix Chinese characters to display 8 characters/line X4 lines

Support after sales. Can be customized, change all kinds of LCD screens, provide requirements, and individually change customization. Welcome to discuss in detail! Welcome to consult, purchase, and R&D personnel can communicate with us! Large quantity and excellent price, please contact customer service staff!
