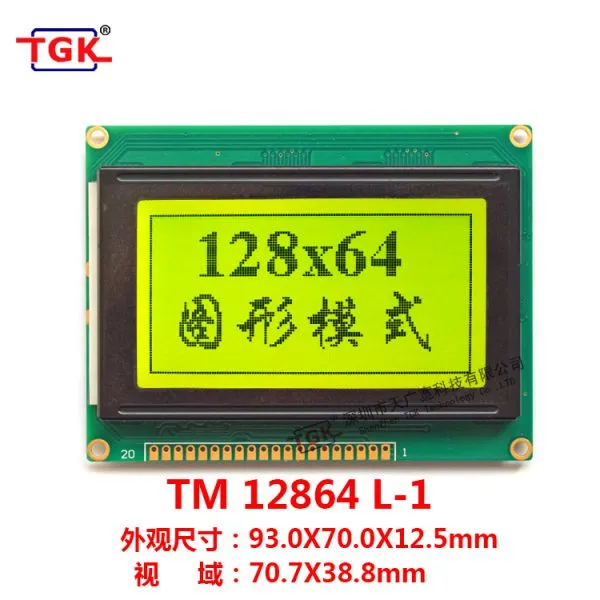

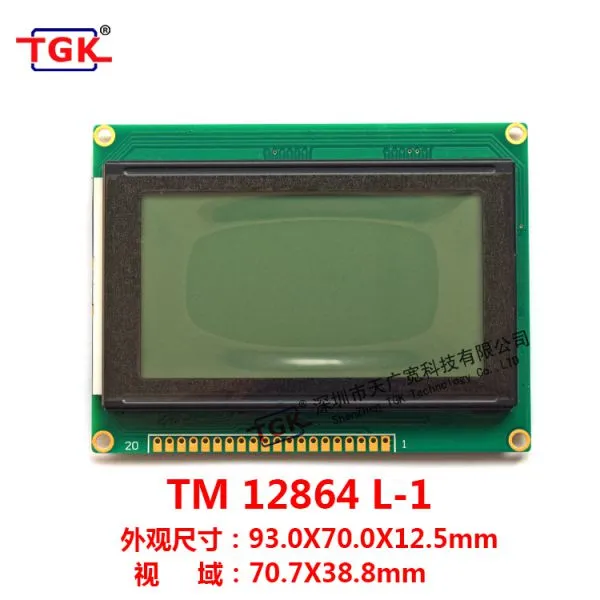

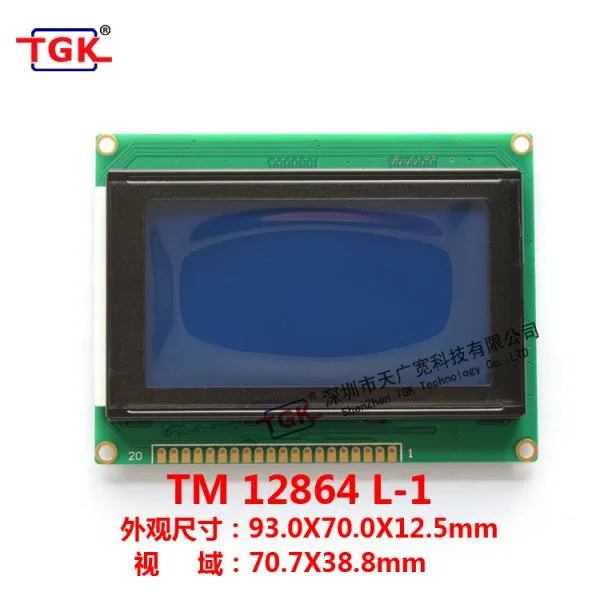

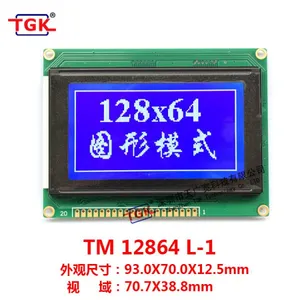

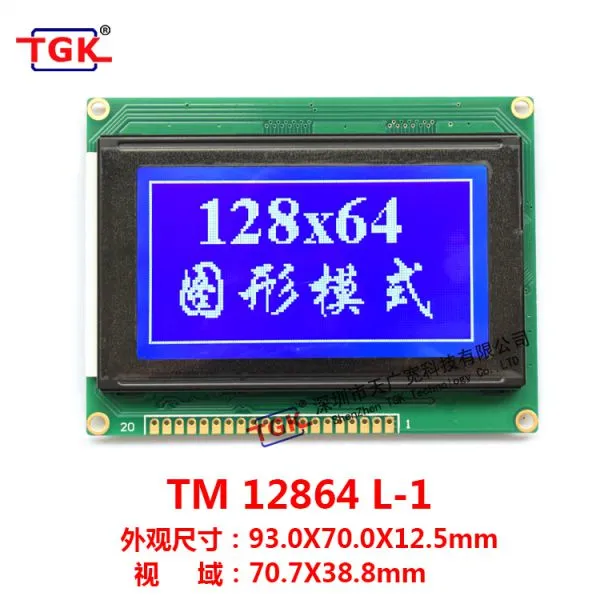

128X64 lcd screen TM12864L-1 High-quality 93x70mm size stn lcd 12864 screen lcd 128X64 display screen 12864 lcd module

Model: TM12864L-1

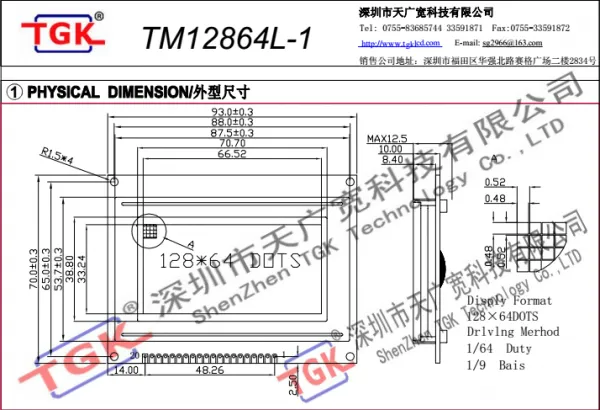

Appearance size: 93.0×70.0×12.5mm

Viewing field size: 70.7×38.8mm

The appearance size is 93*70 but the display field of view is larger, which is better than the conventional 12864 on the market

Liquid crystal glass: adopt Tianma micro liquid crystal

Backlight source: All of the company’s LCD screen products use four bright LED lights from Jufei Optoelectronics, with low current, high brightness and uniform diffusion. The current of each lamp is 17 mA, which can reach the current brightness of ordinary non-brand LED lights (30 mA). The normal current of the lamp should be below 20 mA, and the lamp life will be seriously shortened if the lamp exceeds 20 mA. The backlight can be powered independently or internally by default. It is simple and easy to use and will not generate AC interference signals.

Wide temperature LCD screen: -20~+70°

Strong command control function: support double layer mode; scan display from left to right, from top to bottom; 8-bit one byte, can control the display with precision.

High-brightness LCD screen, working current within 90 mA, four Jufei Optoelectronics high-brightness LED lights current 80 mA

Perfect technical team to support after-sales. Can be customized, change all kinds of LCD screens, provide requirements, and individually change customization.

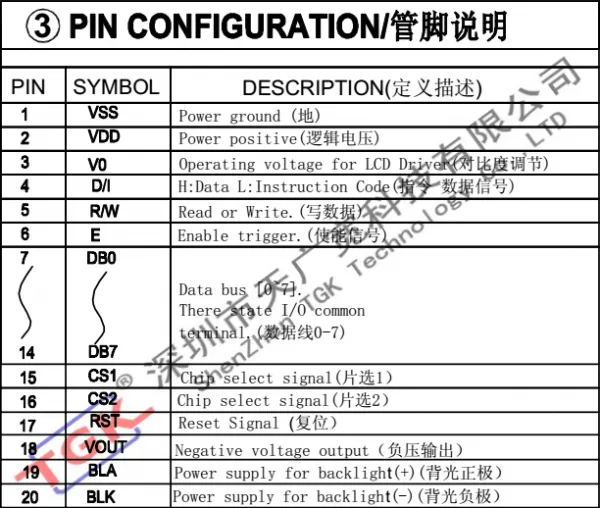

There are various interface definitions and styles such as L-1.L-2.L-3.L-4.L-5.L-6.L-7.L-8...... etc. under the TM series. Please contact customer service for other interfaces!
