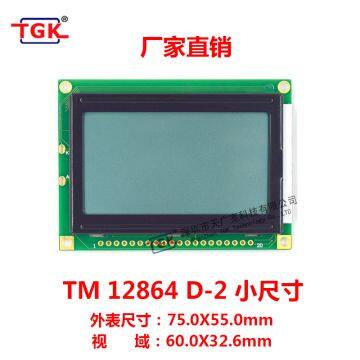

Model number: TM12864D-2

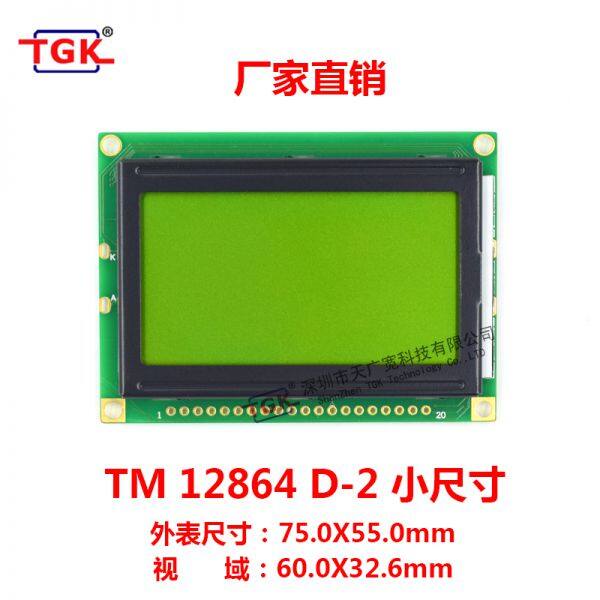

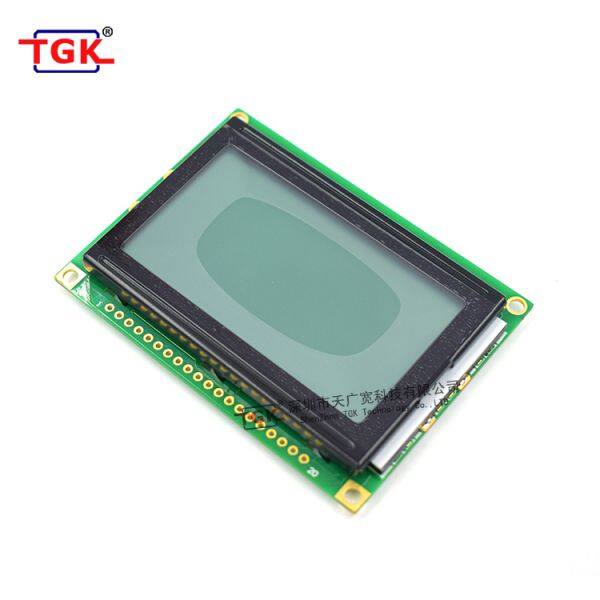

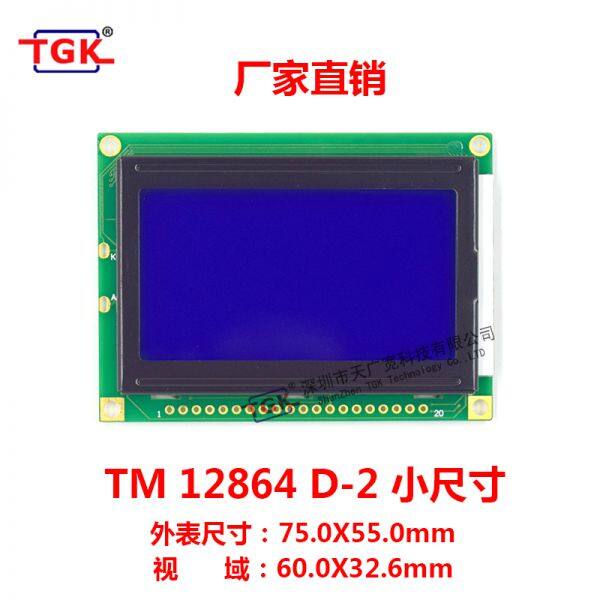

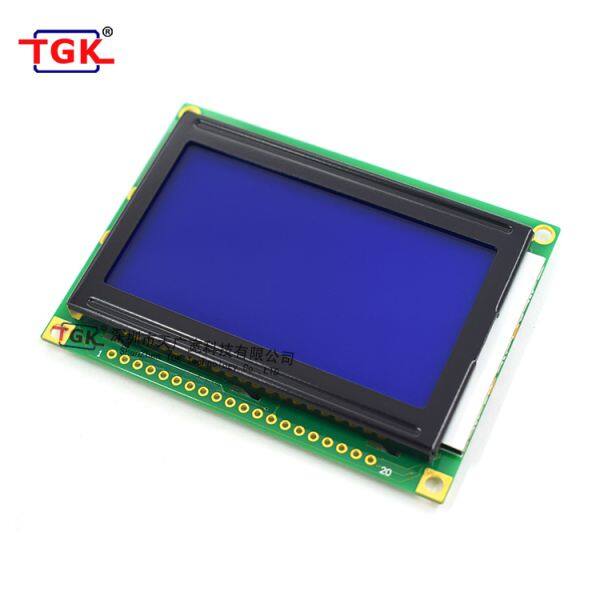

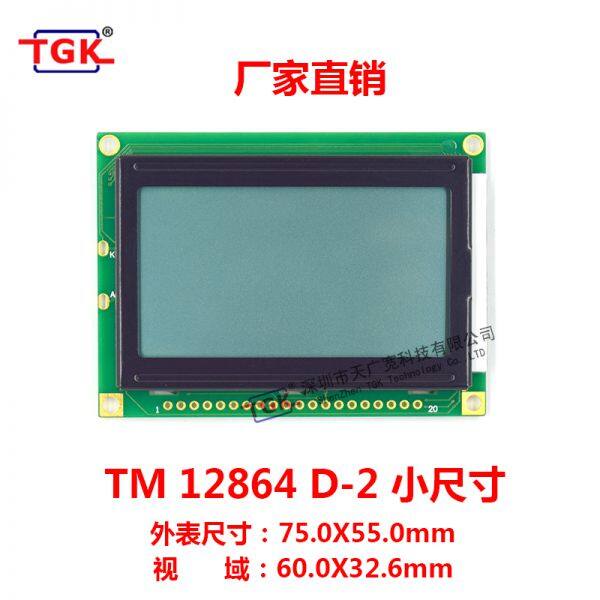

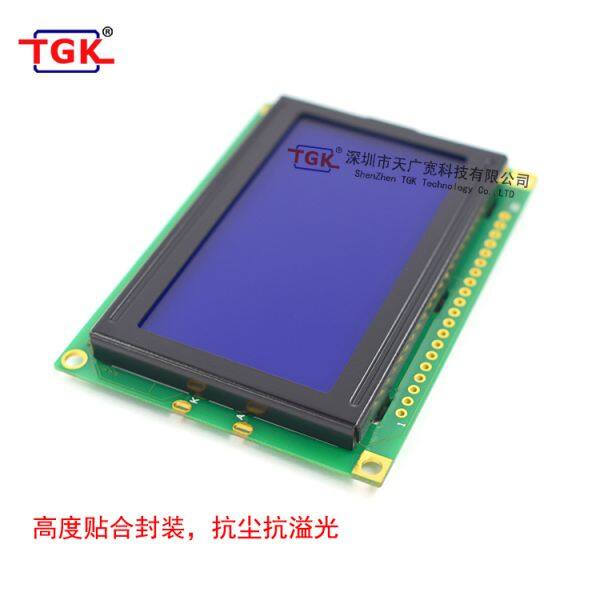

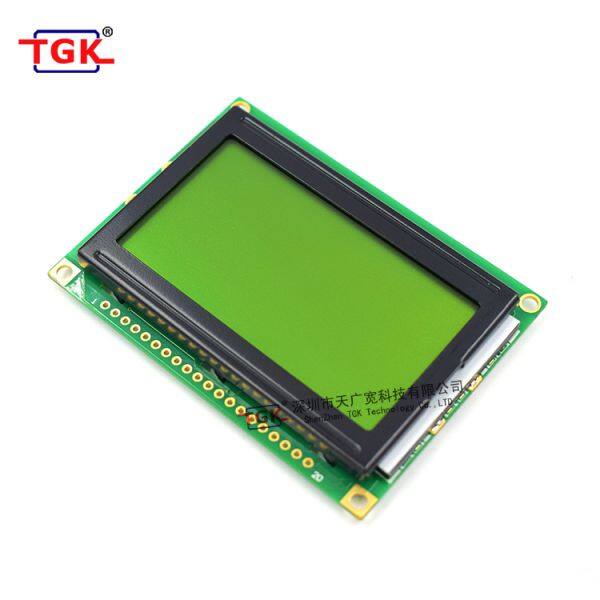

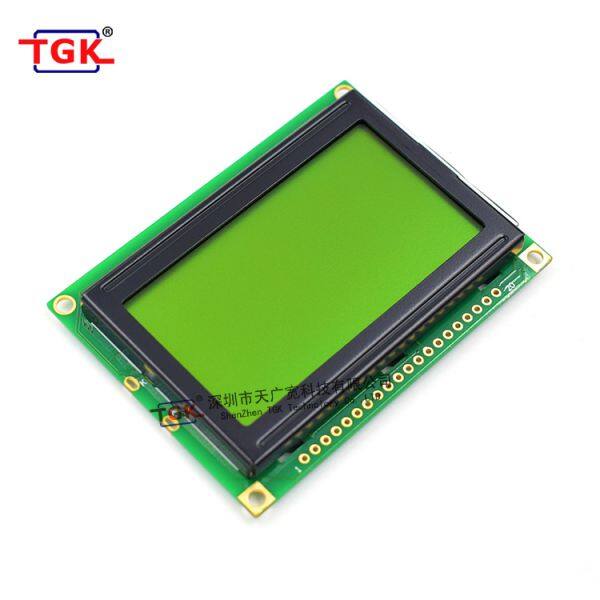

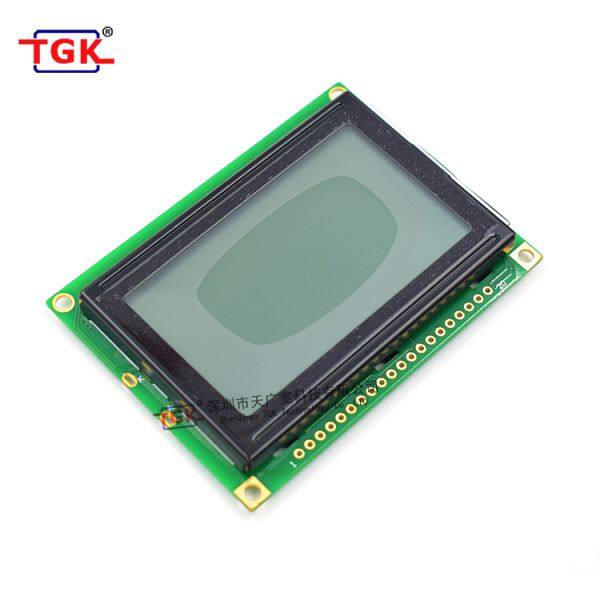

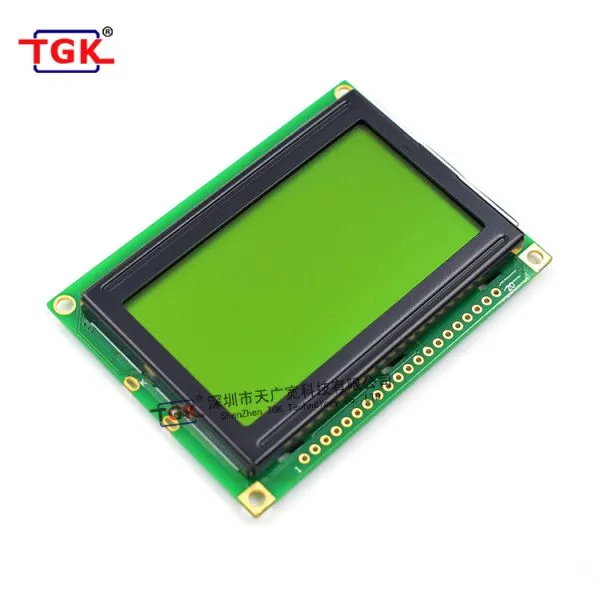

Glass type: STN yellow-green screen or blue screen/FSTN gray screen
Number of dots: 128*64

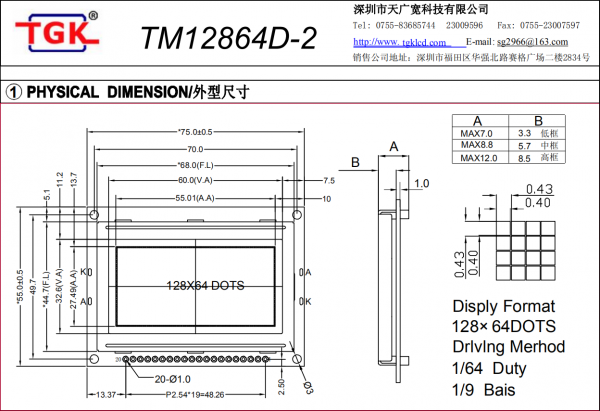

Dimensions: 75.0*55.0mm
Positioning size: 70.0*49.7mm
Field of view size: 60.0*32.6mm
Point distance: 0.43*0.43mm
Point size: 0.40*0.40mm
Controller: S6B0107

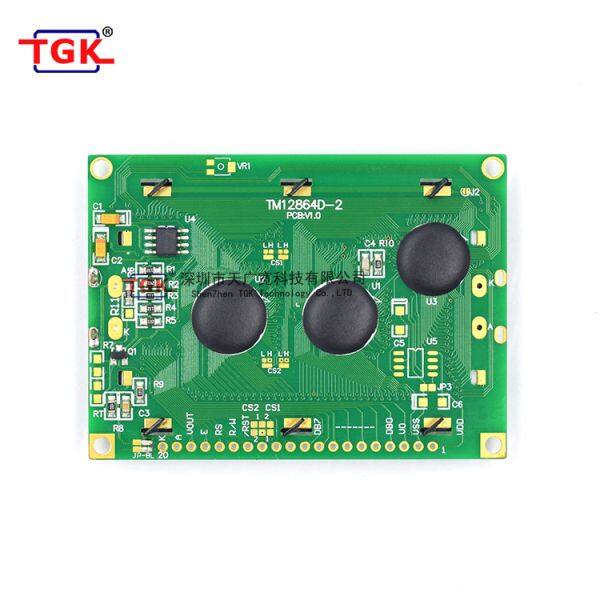

Process form: COB
Data transmission: parallel port
Display effect: white on blue, black on yellow, black on white, etc.
The shop is directly operated by Tianguangkuan. You can communicate with customer service about configuration requirements, such as: viewing angle adjustment, viewing angle adjustment at 6 o'clock and 12 o'clock, CS1/CS2 chip selection adjustment, backlight positive and negative adjustment, fixed contrast adjustment, etc., and Through special adjustment, you can reduce unnecessary welding during use.
All of the company’s LCD screen products use four bright LED lights from Jufei Optoelectronics, with low current and high brightness. Each lamp circuit is 17 mA, which can reach the current brightness of ordinary non-brand LED lights (the normal current of LED lights should be 20 Below milliampere, more than 20 milliampere life will be seriously shortened and burn the lamp)
Purchase samples, place orders in batches, online and offline trading channels, welcome engineers and scientists from all industries to come and customize products for inquiries!
Professional LCD module manufacturer, all products can provide technical support, batch detailed discussion.
