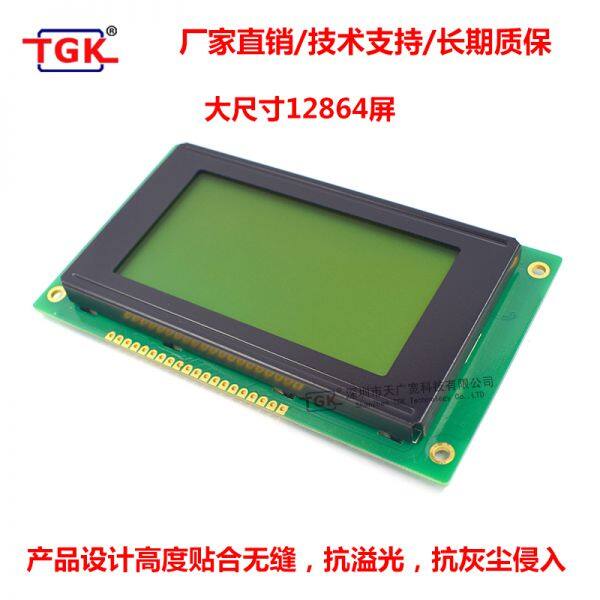

128X64 Lcd Display TM12864A-2 Big Size Big VA 113x65mm Size Stn Lcd 12864 Character Screen Module Lcd 20X4 Display Screen 2004 Lcd Module

Model number: TM12864A-2 (standard product)

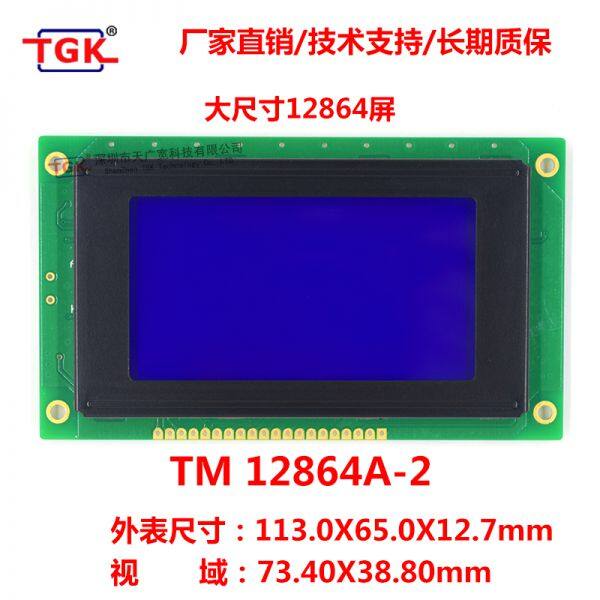

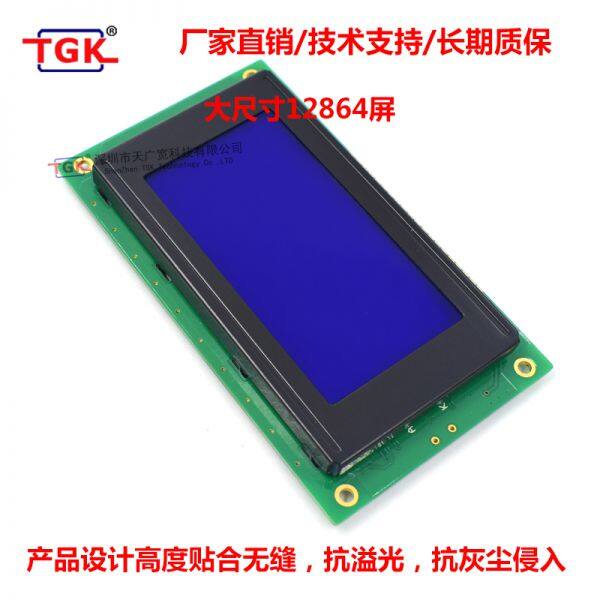

Glass type: STN yellow-green screen or blue screen

Number of dots: 128*64

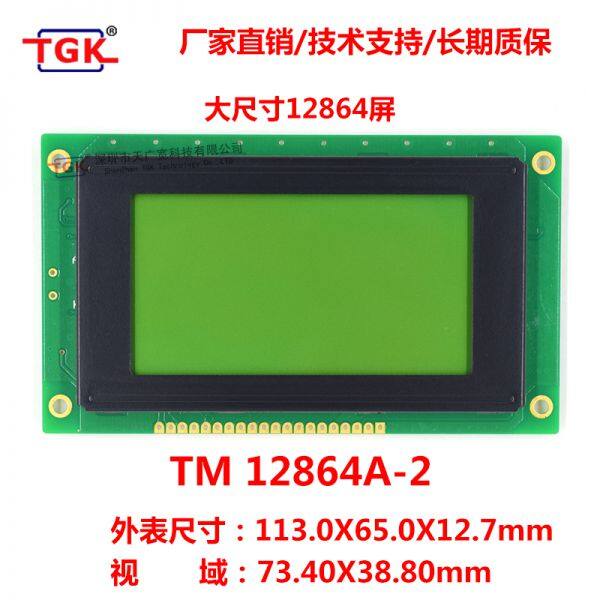

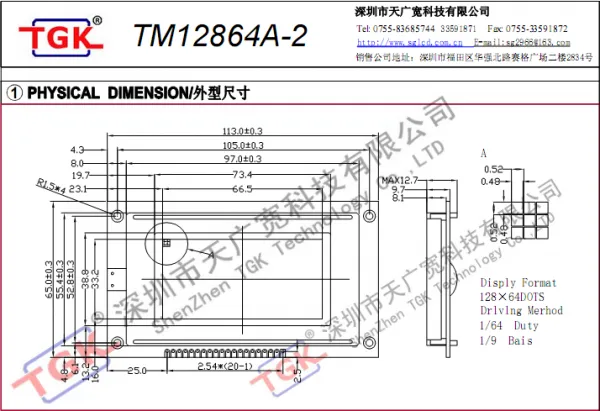

Dimensions: 113.0*65.0*12.0mm (length, width and thickness)

Positioning size: 105.0*53.0mm

Field of view size: 73.4*38.80mm

Point distance: 0.52*0.52mm

Point size: 0.48*0.48mm

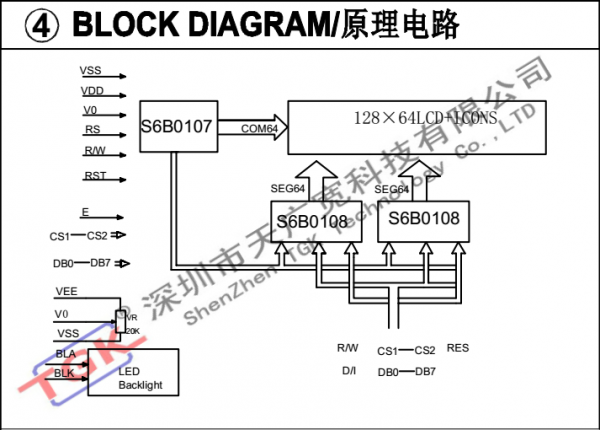

Controller: KS0107

Process form: COB

Backlight type: LED white light or yellow light

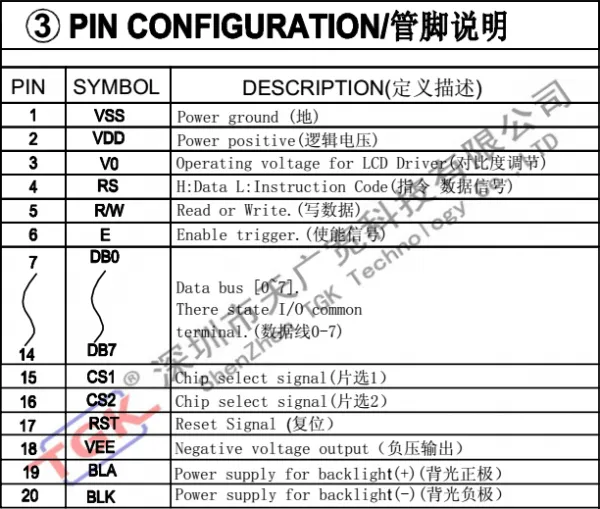

 Data transmission: parallel port, 20pin, bottom row of PCB

(This model uses high-standard large-size LCD glass, which is camouflaged by cheaper small glass than the market, which has better display effect and stronger anti-interference, so this product will be heavier)

The store belongs to Shenzhen Tianguangkuan Technology Co., Ltd., a direct sales store of Tianguangkuan LCD module series. Contact the manufacturer directly to provide you with technical support!

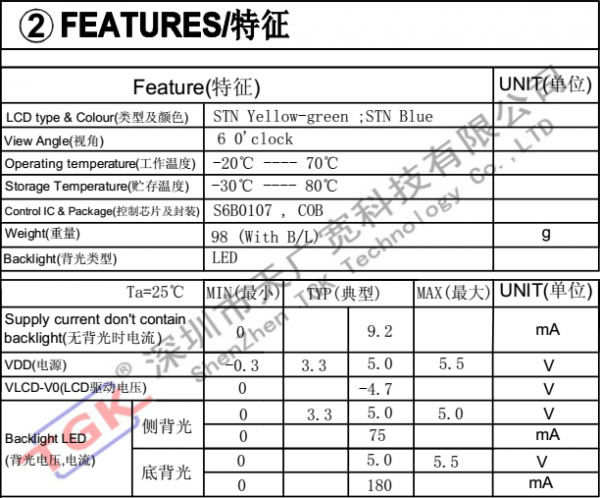

Wide temperature LCD screen: -20~+70° wide temperature glass (excellent display effect, strong anti-interference)

Backlight source: All of the company’s LCD screen products use four bright LED lights from Jufei Optoelectronics, with low current, high brightness and uniform diffusion. The current of each lamp is 17 mA, which can reach the current brightness of ordinary non-brand LED lights (30 mA). The normal current of the lamp should be below 20 mA, and the lamp life will be seriously shortened if the lamp exceeds 20 mA. The backlight can be powered independently or internally by default. It is simple and easy to use and will not generate AC interference signals.

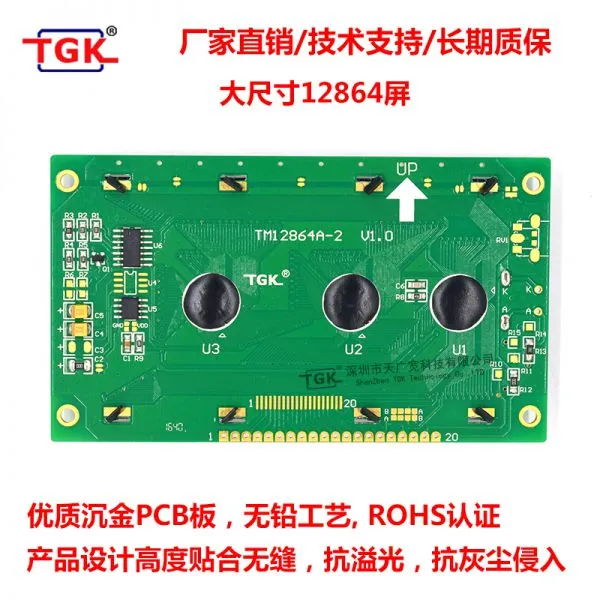

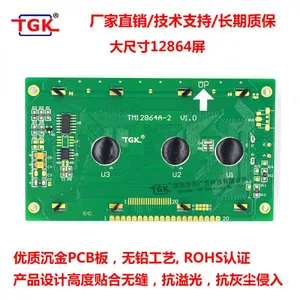

PCB board: high-quality immersion gold, ROSH certification, independent design and development, support customization, provide support

Command control function is strong: support serial port/parallel port, support dual layer mode; display from left to right, from top to bottom scanning mode; 8-bit one byte, can control the display with precision.

TGK TM12864 series has a variety of different sizes of screens, please contact customer service for any size you need to adapt the LCD screen to your product!

Support after sales. Can be customized, change all kinds of LCD screens, provide requirements, and individually change customization. Welcome to discuss in detail! Welcome to consult, purchase, and R&D personnel can communicate with us! Large quantity and excellent price, please contact customer service staff! Welcome to discuss in detail!

This model is different from the TM12864A-3 interface definition, and the external dimensions are the same. For the interface definition, please refer to TM12864A-3.
