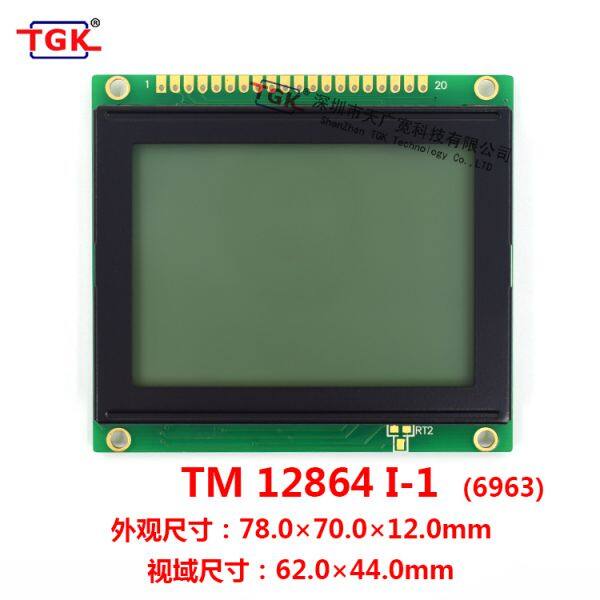

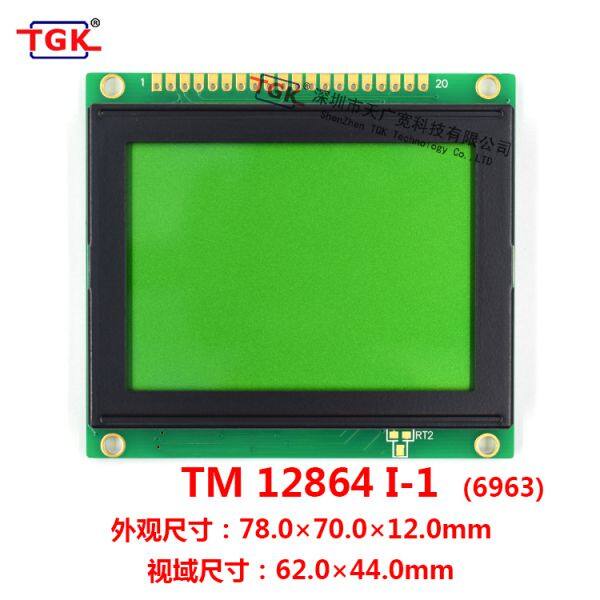

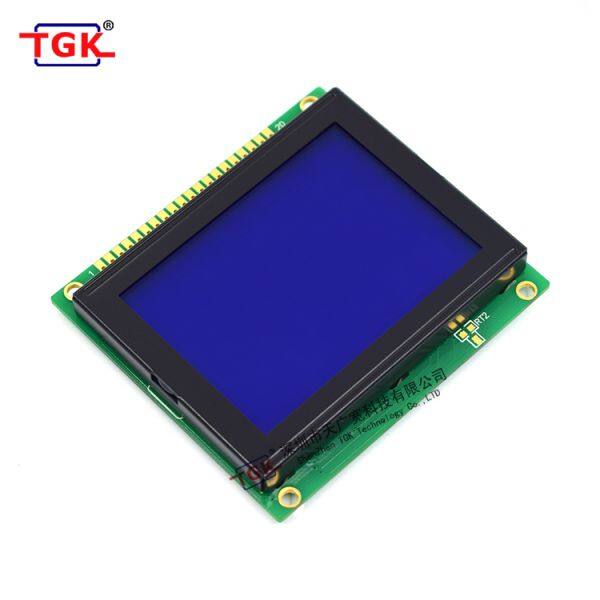

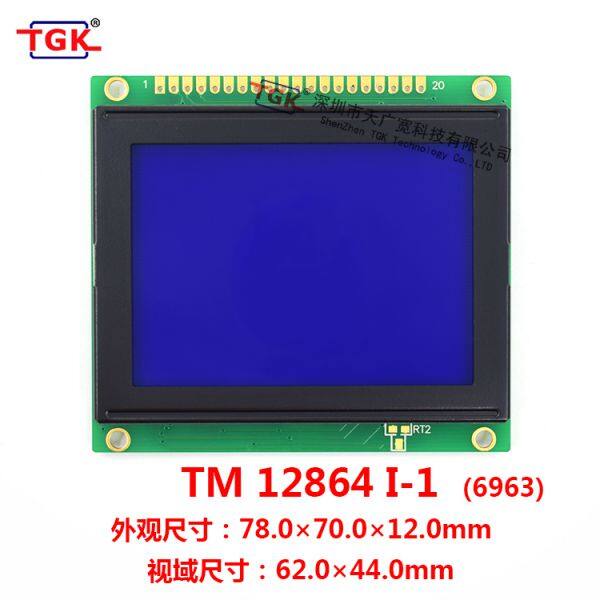

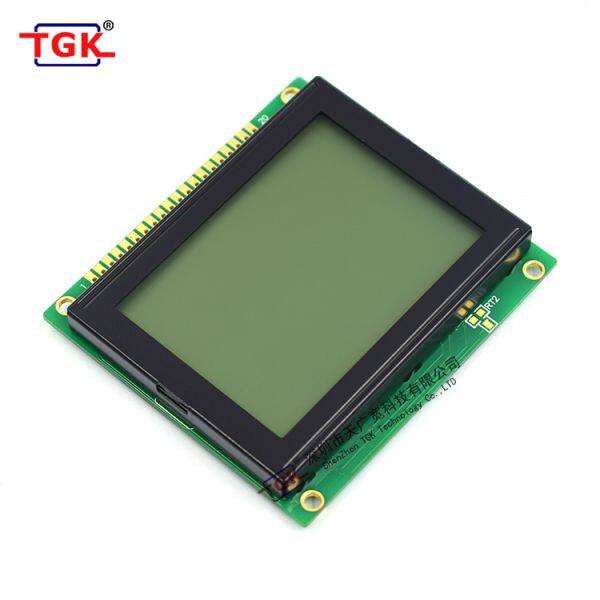

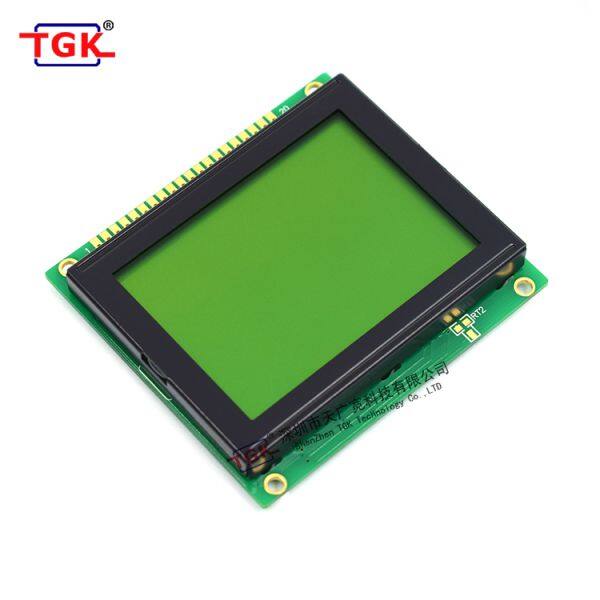

Model: TM12864I-1
Features: comes with 6963C controller
Glass type: STN
Number of dots: 128*64

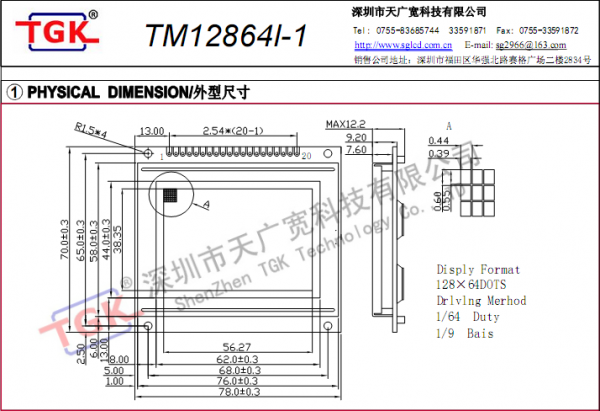

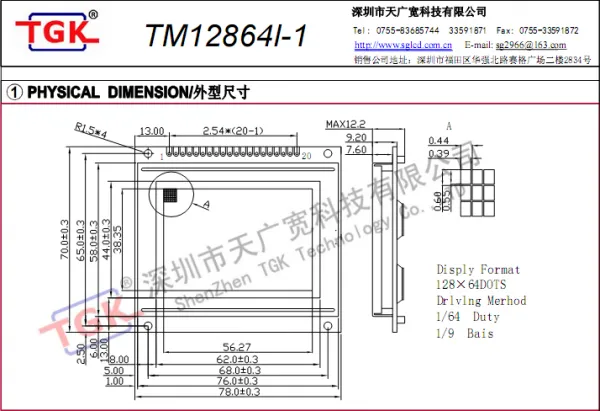

Dimensions: 78*70*12mm (length, width and thickness)
Positioning size: 68.0*66.17mm
Field of view size: 62.0*44.0 mm
Point distance: 0.52*0.52mm
Point size: 0.48*0.48mm

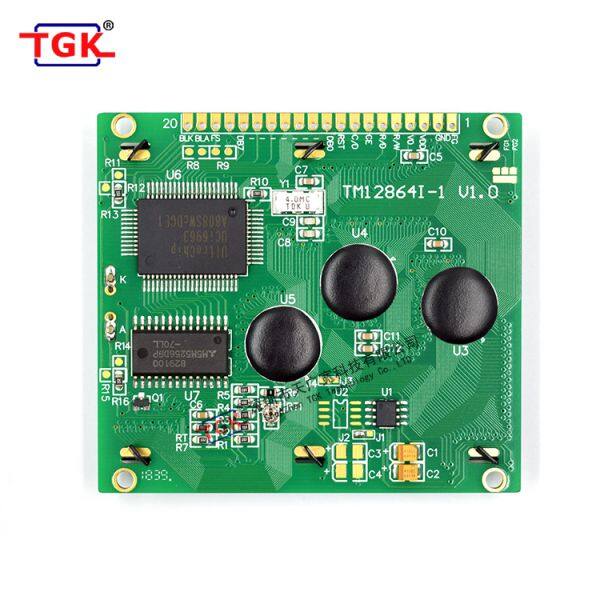

Controller: T6963C
Memory: HM62256
Process form: SMT (surface mount)
Backlight type: LED white light or yellow light
Data transmission: parallel port

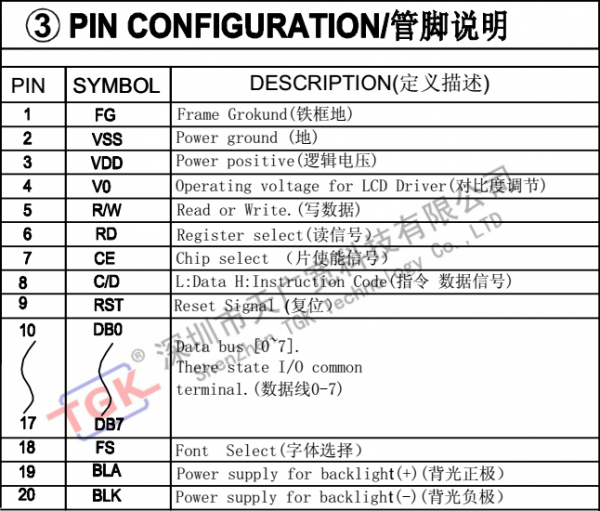

Interface definition:
1.FG
2.VSS
3.VDD
4.VO
5.R/W
6.RD
7.CE
8.C/D
9.REST
10-17.DB0-DB7
18.FS
19.BLA
20.BLK
All of the company’s LCD screen products use four bright LED lights from Jufei Optoelectronics, with low current and high brightness. Each lamp circuit is 17 mA, which can reach the current brightness of ordinary non-brand LED lights (the normal current of LED lights should be 20 Below milliampere, more than 20 milliampere life will be seriously shortened and burn the lamp)
TGK TM12864 series has a variety of different sizes of screens, please contact customer service for any size you need to adapt the LCD screen to your product!
TGK professional LCD module production, quality assurance, quality assured!
Welcome to discuss in detail!
