Home > Products > 0.96 inch tft > 0.96 inch 80x(RGB)x160 TFT module 4 Line SPI interface ST7735 White LED All view lcd screen

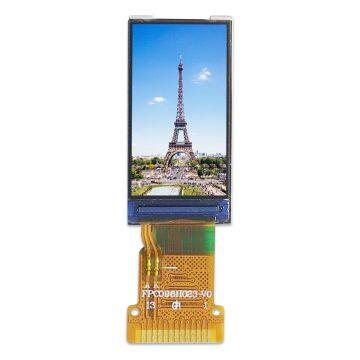

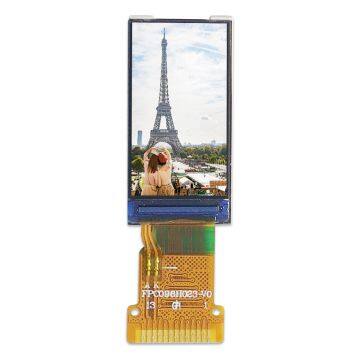

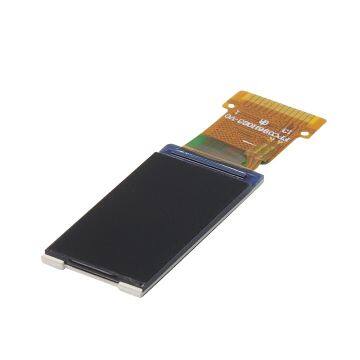

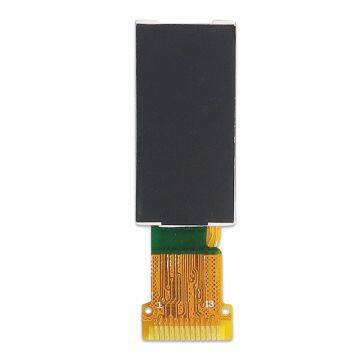

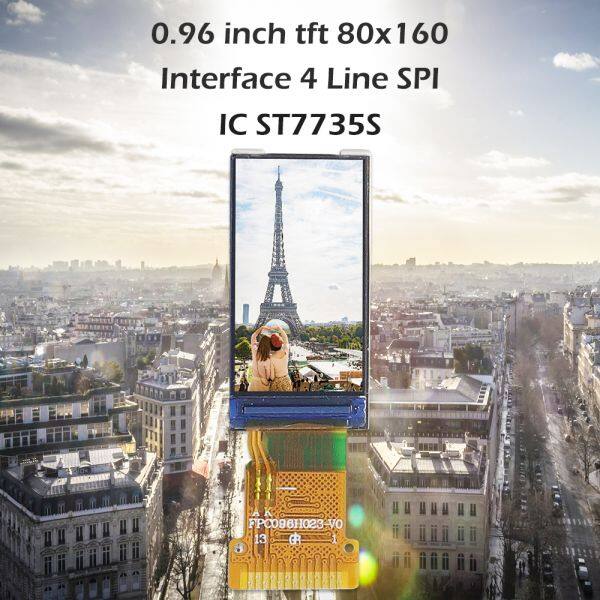

0.96 inch 80x(RGB)x160 TFT module 4 Line SPI interface ST7735 White LED All view lcd screen
USD $1 - $1.3
/ Piece
1 Piece(Min.Order)
- 12324654 Piece / Pieces per Month
- Shen Zhen
- T/T PayPal
- 15 days
You May Like
-
2.8 inch tft 40 pin 240x320 touch lcd screen 2.8 inch lcd ILI9341 TFT LCD Digital Module
-
3.2 inch 240x320 RGB lcd display Drive Ic Ili9341 Tft module With Optional RTP CTP
-
2.2 Inch 4 Line Serial Interface St7789 Drive 240x320 TFT Rohs 65k/262k Colors Lcd Module
-
3.5 inch tft 320x480 tft screen 40 pin 8/16 Bit Parallel SPI lcd display
-
3.5 inch tft lcd screen 320x240 graphic color display TM035KDH03 tft lcd module
-
lcd 8X2 display 16pin stn character blue/yellow-green Monochrome display screen 0802 lcd module
Product Details
| Brand Name: | TGKLCD | Place of Origin: | China | Model Number: | TF80160-0.96T |
| Type: | TFT |
Product Description
0.96 inch 80x(RGB)x160 TFT module 4 Line SPI interface ST7735 White LED All view lcd screen
Display Size:0.96 inch
Place of Origin:Guangdong, China
Model Number:TF80160-0.96T
Brand Name:TGK
Type:TFT
Resolution:80xRGBx160

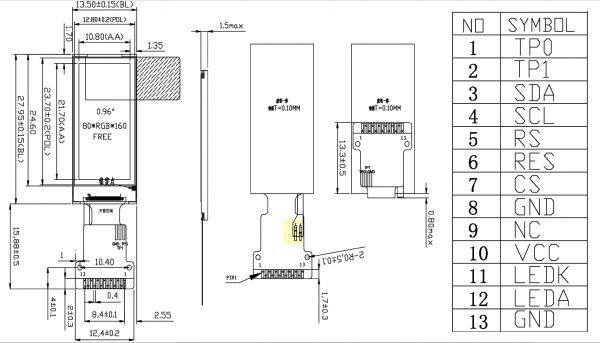

Module size:13.5x27.95x1.5mm
Active Area:10.8x21.7mm

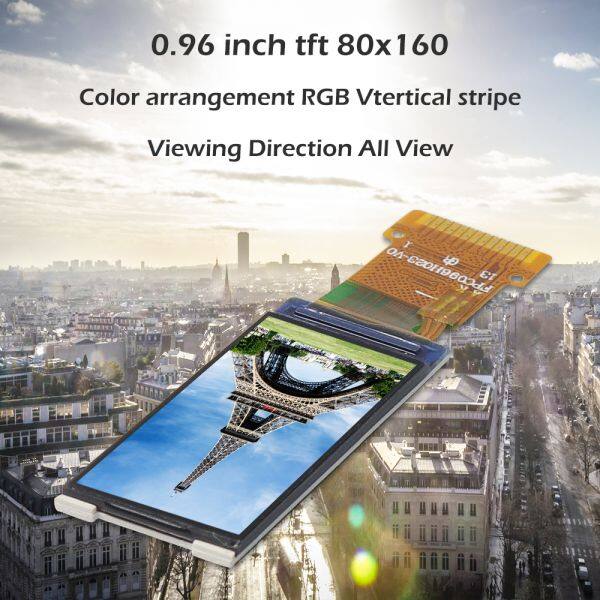

Viewing Direction:All View
Display mode:Normally black
Drive IC:ST7735
Luminance:300 cd/m2

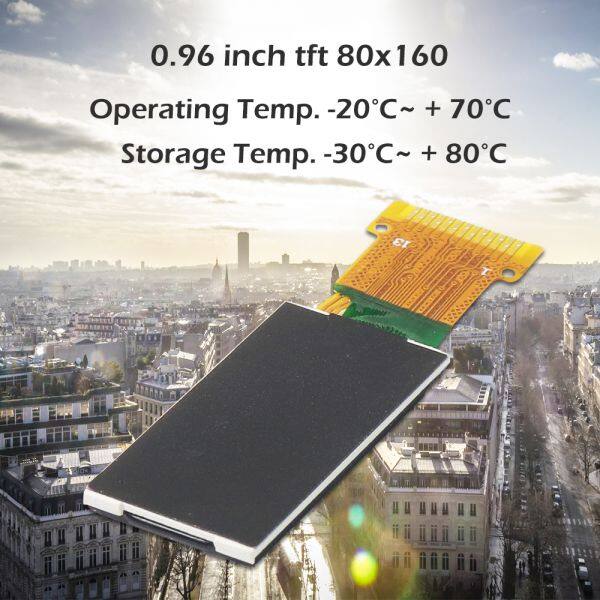

Operating Temp.:-20°C~+70°C
Storage Temp.:-30°C~+80°
