Single Station Automatic Hydraulic Conical Tube End Forming Machine for Fitting One Tube Into Another

Single Station Automatic Hydraulic Conical Tube End Forming Machine for Fitting One Tube Into Another photo-1

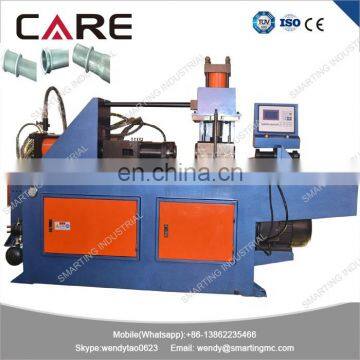

Single Station Automatic Hydraulic Conical Tube End Forming Machine for Fitting One Tube Into Another photo-2

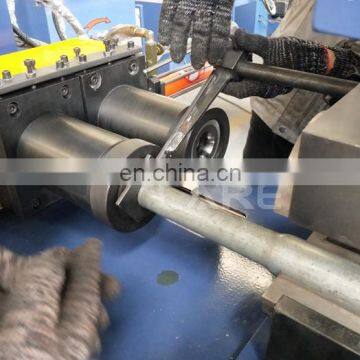

Single Station Automatic Hydraulic Conical Tube End Forming Machine for Fitting One Tube Into Another photo-3

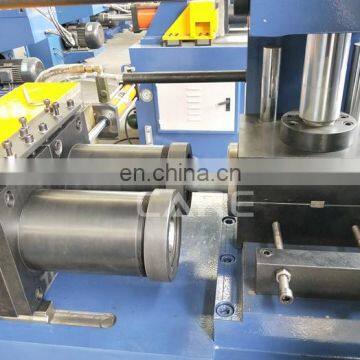

Single Station Automatic Hydraulic Conical Tube End Forming Machine for Fitting One Tube Into Another photo-4

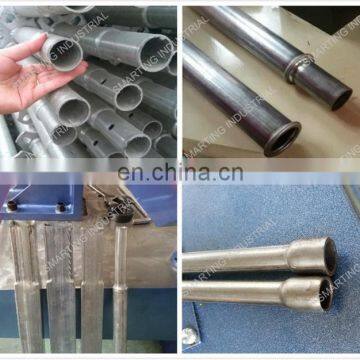

Single Station Automatic Hydraulic Conical Tube End Forming Machine for Fitting One Tube Into Another photo-5
US$ 8,200 - 8,200 MOQ: 1 set
Key Specifications
Get Latest Price
Brand Name:
CARE
Place of Origin:
Jiangsu, China
After-sales Service Provided:
Free spare parts, Online support, Video technical support, Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CARE
Place of Origin Jiangsu, China

Single station automatic hydraulic conical tube end forming machine for fitting one tube into another



Application: Tube end forming machine is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. Forming controlled by hydraulic, clamping controlled by hydraulic. PLC controller with English language.



Main specification

1) PLC control Unit: Easy Operation and Maintenance

2) Suitable for the shrinking of various metal pipes with different material and different shape

3) Equipped with emergency stop device. Both manual and automatic operations are available

4) Shrinking stroke 150mm. The max. workpiece length is 450mm, with no minimum workpiece length

5) This machine can make pipe end reducer, expander, flange and flare depend on different forming molds



Technical parameter

Type

SG-40

SG-60

SG-80

SG-100

Max tube(mm)

φ40*2.0

φ60*2.0

φ80*3.0

φ100*3.5

Max processing length(mm)

110

130

150

180

Oil pressure(Mpa)

14

14

14

14

Working speed

100mm in3-4/s

100mm in3-4/s

100mm in3-4/s

100mm in3-4/s

Size(cm)

180*45*120

200*50*130

290*70*140

300*75*150

Weight(kg)

600

950

1600

1800

Remark

1.The max processing length can according to customers requirement.



Machine photo

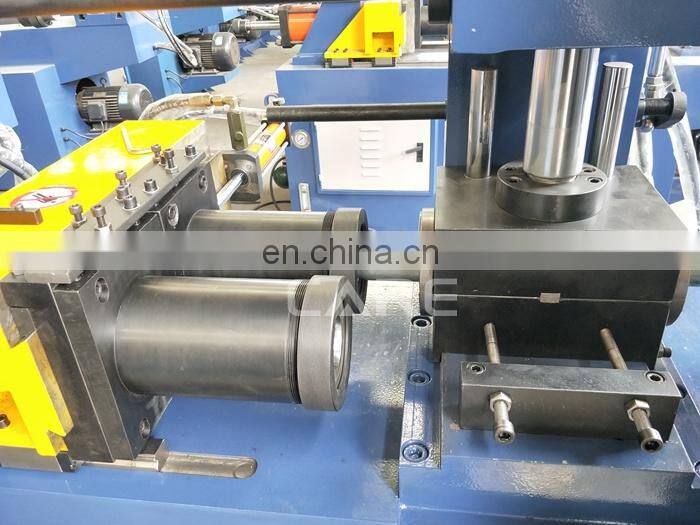

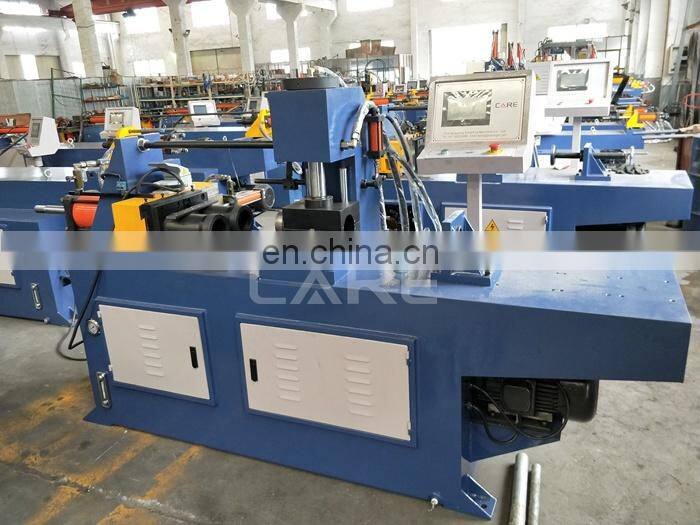

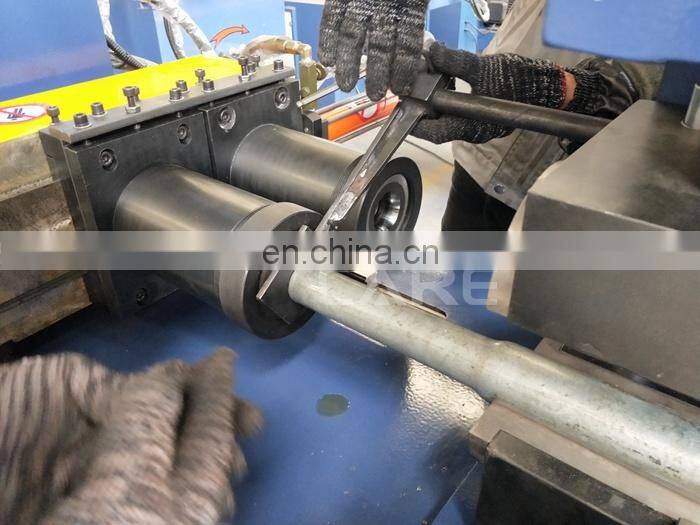

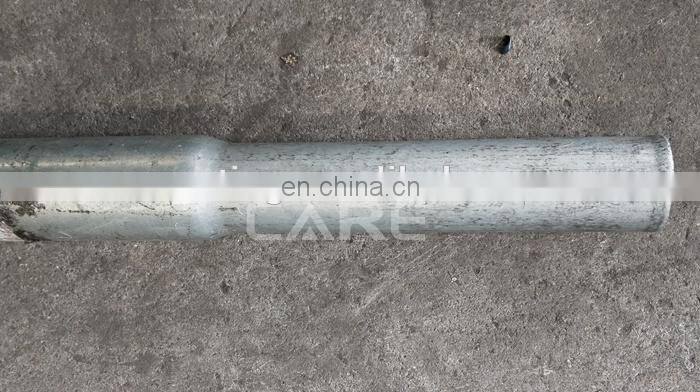

Single station automatic hydraulic conical tube end forming machine for fitting one tube into anotherSingle station automatic hydraulic conical tube end forming machine for fitting one tube into anotherSingle station automatic hydraulic conical tube end forming machine for fitting one tube into another
