Automatic Steel Tube Rotary Swaging Machine With Hydraulic Control
US$ 7,000 - 8,000
/ Set
1 Set(Min. Order)
- Shanghai China
- T/T Credit Card
You May Like
-
Automatic Hydraulic Tube Swaging Embossing Machine
-
Single Head Hydraulic Tube End Shaping Process for Construction Tube Reducing
-
Single Head Pipe End Molding Machine With Multi Function
-
Automatic Tube Expander Machine Hydraulic Tube Expander Machine
-
Manual Feeding Hydraulic Stainless Steel Tube Swaging Machine for Taper Reducing
-
DSG-II-40 Twin Head Aluminum Pipe Squeeze Machine for 2 Sides Flange
Product Details
| Brand Name | CARE | Place of Origin | Jiangsu, China | |
| Model Number | ZSG-40 tube rotary swaging machine | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic steel tube rotary swaging machine with hydraulic control
Main specification
1.Applicable material of the machine:carbon steel, stainless steel, aluminum , alloy, copper, brass etc.
2.Microcomputer controlling; Hydraulic driving.
3.Automatic and manual operations are available.
4.English or Chinese subtitles; man-machine conversion operation, easy.
5.Adopting linear slider rail, stable propulsion.
6.High accuracy and efficiency.
Technical parameter
Model/Name | ZSG40 | ZSG60 |
Max. reducing capacity mm | Φ40×2.0 | Φ60×2.5 |
Max. reducing length mm | 260 | 320 |
Molding time m | 10-60 | 10-60 |
Motor power KW | 5.5 | 7.5 |
Cooling oil pump W | 40 | 90 |
Rotate speed of main shaft r/min | 175 | 286 |
Overall dimension mm | 1020×620×1200 | 1300×880×1300 |
Weight T | 1.4 | 1.6 |
Machine photo

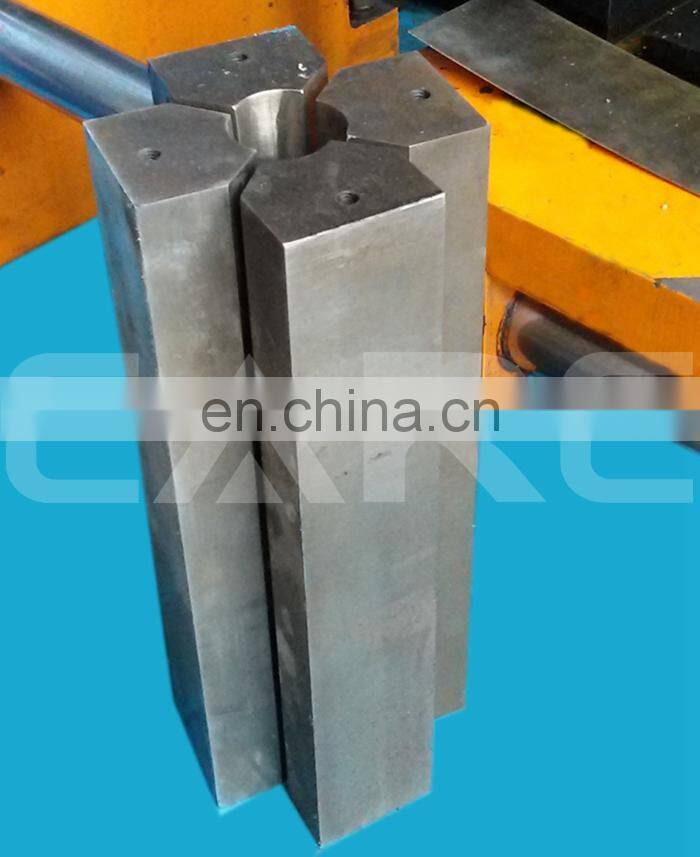

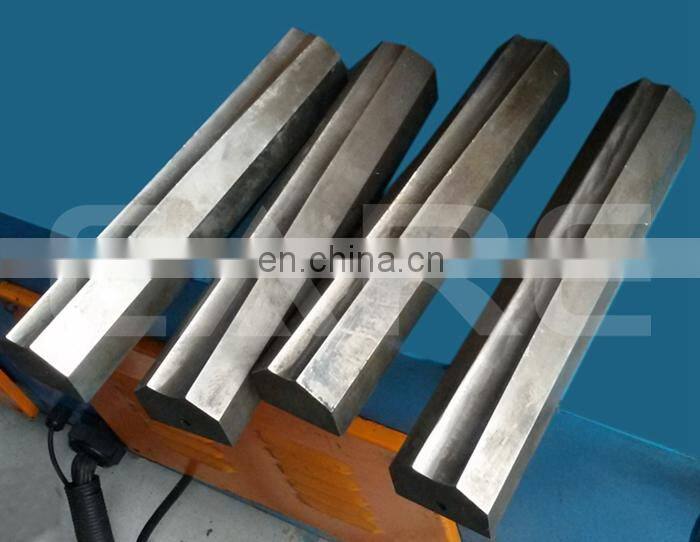

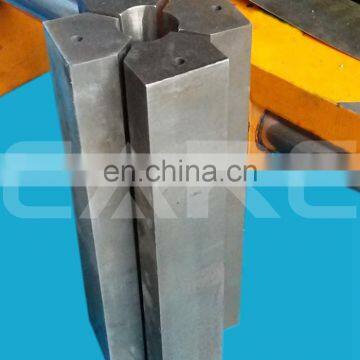

Reducing mold

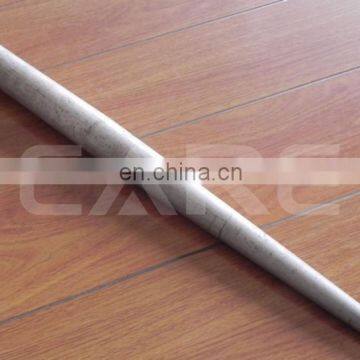

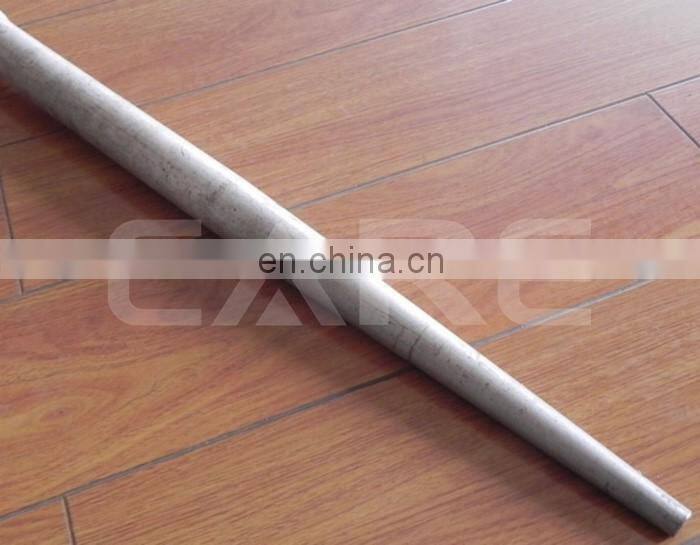

Pipe sample
To know more information, please contact us at any time.
