Wellhead Spacer Spool 18 3/4" 15M x 18 3/4" 15M
API 6A Oil Well Spacer Spool 18 3/4" 15M x 18 3/4" 15M Wellhead connection

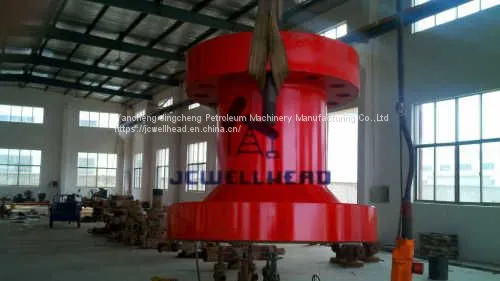

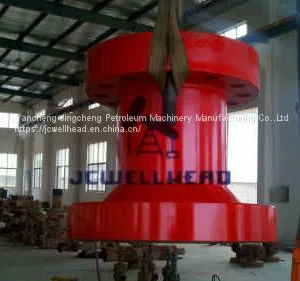

Overview of the wellhead spacer spool 18 3/4" 15M
The 18 3/4" 15M spacer spool is designed and manufactured in accordance with API 6A, the spacer spool has end flange connectors in the same size and same working pressure, and design.
The 18 3/4" 15M Spacer spool is wellhead sections for suspension of tubular members which have no provision for sealing of tubular members
Featrues of the spacer spool 18 3/4" 15M
* The spacer spool is made of alloy steel forging
* Easy to install the spacer spool on the wellhead
* The spacer spool is available in different length
* Application for Well Head extension, B.O.P. spacing, and Choke manifold, Kill manifold, and Production Manifold applications
Specification of the 18 3/4" 15M spacer spool
| 1 | Spacer Spool, 18 3/4" 15M x 18 3/4" 15M , L: 3M BX-164 * BX-164 | |
| 2 | Spacer Spool, 18 3/4" 15M x 18 3/4" 15M , L: 2M BX-164 * BX-164 | |
| 3 | Spacer Spool, 18 3/4" 15M x 18 3/4" 15M , L: 1M BX-164 * BX-164 | |
| REMARK: MATERIAL: AISI 4130 TEMP. CLASS: PU, MATERIAL CLASS: DD or EE AS PER STANDARD API6A RING GROOVE CLADDED WITH SS316L ALL SPACER SPOOL SHALL INCLUDE COMPLETE RING GASKET, STUD & NUT | ||
Wellhead Spacer Spool 18 3/4" 15M x 18 3/4" 15M
API 6A Oil Well Spacer Spool 18 3/4" 15M x 18 3/4" 15M Wellhead connection
