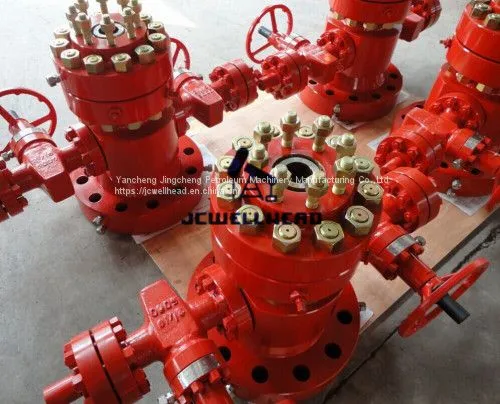

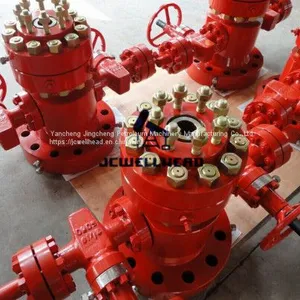

Oilfield Christmas Tubing Head for 7" Casing
API 6A Wellhead Tubing Head for casing 7"
Overview of the Wellhead Christmas tubing Head
The Wellhead Tubing head is the important parts of the wellhead Christimas Tree, the buging head
is designed with universal straight hold and conformed with API 6A Specification, which can be fitted
with all types of single or double-string completion tubing hanger.
Features of Wellhead Tubing Head
* The tubing head is designed with straight hole with 45° shoulder and large load capability
* The tubing head is with side outlet connection
* The tubing head has thread cutting flange side outlet
* With VR block thread
* The tubing head is made of alloy steel forging.
Specification of the Tubing head
Bottom flange | Top flange | ||||||
Size | W.P. (psi) | Size | W.P. (psi) | A mm (in) | B mm (in) | C mm (in) | |
7-1/16" | 5, 000 | 7-1/16" | 5, 000 | 600 (23.62) | 122 (4.80) | 180 (7.09) | |
10, 000 | 7-1/16" | 10, 000 | 600 (23.62) | 122 (4.80) | 180 (7.09) | ||
10, 000 | 7-1/16" | 10, 000 | 600 (23.62) | 160 (6.30) | 180 (7.09) | ||
15, 000 | 7-1/16" | 15, 000 | 640 (25.20) | 160 (6.30) | 180 (7.09) | ||
Detailed specification of tubing head for the 7" casing
TUBING HEAD FOR CASING 7INCHES
| |
Type | slip-on-(WELD)lower connection type which will be connected to casing 7" |
load capacity | >=35000lbs |
working pressure | >=1500psi |
Connection | two side outlet2" ,8rd female |
cast steel or ductile iron top cap with hammer up lugs | |
Oilfield Christmas Tubing Head for 7" Casing
API 6A Wellhead Tubing Head for casing 7"
