Wellhead Hydraulic Valve Control Panel
API Oil well Hydraulic Valve Control Panel

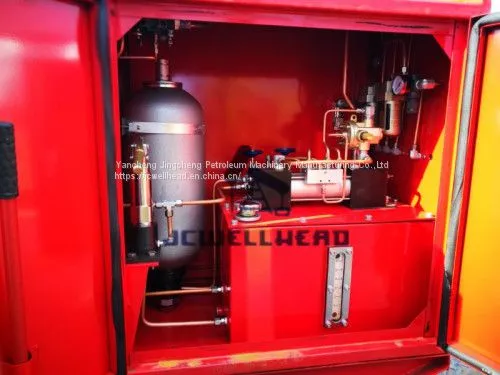

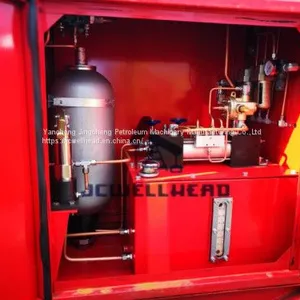

Overview of the PJYK-35 Control Panel
The PJYK-35 Control Panel is the part of the wellhead control systme, which is applied to remote control the open and
close for hydraulic choke valves. The PJYK-35 Control box can control three hydraulic choke valves includings Two
hydraulic choke valves are located on choke and kill manifold, the third is located on high pressure mud standpipe
manifold.
Main components of Hydraulic valve control panel
1 |
Accumulator |
Set |
1 |
2 |
Overflow valve |
Set |
1 |
3 |
One way valve |
Set |
1 |
4 |
Manual pump |
Set |
1 |
5 |
Oil Filter |
Pcs |
1 |
6 |
Oil tank |
Pcs |
1 |
7 |
Manual 3-position, 4-channel valve |
Set |
3 |
8 |
Oil pressure meter |
Pcs |
1 |
9 |
Air source pressure gauge |
Pcs |
1 |
JC Petrolem Equipment factory is specialized in design and manfuacture the API 6A wellhead equipment. It include Wellhead X-tree, Wellhead Valves, Wellhead crossover, Wellhead high pressure manifold, and wellhead high pressure pipe fittings. All the products are in high quality with traceability.
Wellhead Hydraulic Valve Control Panel
API Oil well Hydraulic Valve Control Panel
