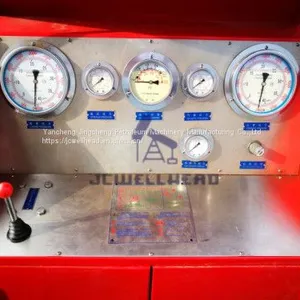

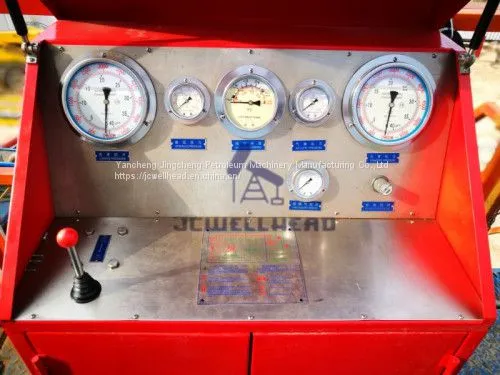

Wellhead Choke Manifold Control Panel JYK3-35
Oil Well Control Panel to Wellhead Choke Manifold JYK3-35
Overview of the Choke manfiold control panel
The JYK 3-35 Control Panel is connected to the wellhead Choke manifold , the JYK3-35 control pannel is control equipment in hydraulic choke manifold,. The control sonsole can remote control the open/close of hydraulic choke valve for a long distance and the control panel can indicate the casing pressure, standpipe pressure and the opening/closing condition of hydraulic choke valve.
And the control panel can be used as the pulse number and frequency of the mud pump if pump stroke counter equipped, which can keep the pressure under well and is a necessary device to control kick and blowout and perform the pressure control technology in oil and gas well.
Main technical data for choke & kill control panel of JYK3-35 choke manifold | ||
1 | Air source pressure | 0.6Mpa ( clean air source excluding oil, water and dust) |
2 | Temperature | -5℃- +38℃ |
3 | Rated output oil pressure | 3Mpa |
4 | Max. Output oil pressure | 4Mpa |
5 | Connection size of fast connector | NPT1/2 |
6 | Hydraulic oil type | 10# aerial hydraulic oil |
Wellhead Choke Manifold Control Panel JYK3-35
Oil Well Control Panel to Wellhead Choke Manifold JYK3-35
