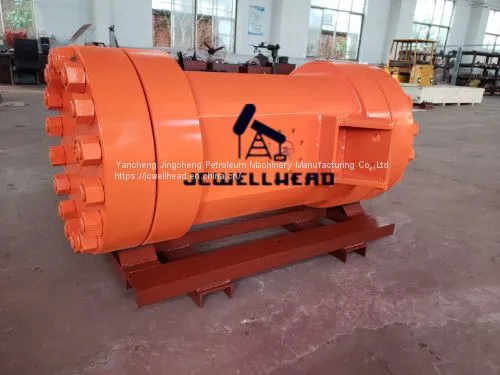

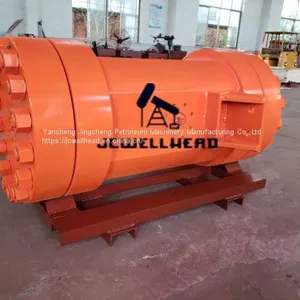

Well Testing Equipment Sand Filter 16 3/4" x 10000psi
API 6A Sand Filter for Well Surface Testing Service 16 3/4" 10000psi
Overview of the Well Test Sand Filter
The 16 3/4" Sand Filter is used in well surface testing operation, which is the high pressure well surface test equipment. The 16 3/4" sand fileter is suitable for testing after fracturing and testing on the sanding formation. Sand filter can safely remove fracturing sand after large fracturing, filter and measure formation sand production, and effectively reduce the damage to the downstream ground equipment.
Constructure of the Well Surface Testing Sand Filter
The sand filter consists of two filter pots, one manifold and one sand jetting system. The frame-mounted pots have lifting support for convenient filter replacement. Both of two pots can be on stream at same time. Normally, one vessel is in use, another is being cleaned by sand jetting system
Features of the well surface test sand filter
* Sand jetting system of the sand filter makes sand-clean job easier
* The sand filter is suitable for sour Service in accordance with latest NACE MR 0175
* The sand filter is designed according to API-6A (PSL-3), ASME B31.3
* Gas flow capacity of the sand filter is up to 3,000,000 m3/d
* Liquid flow capacity of the sand filter is 15,000bpd
Technical paramter of the Sand Filter for the Well surface testing
Working condition |
H2S |
Working pressure |
15000 PSI |
Working temperature |
250oF (121oC) |
Input connection |
4"Fig.2202 Hammer union thread X Flange |
Output Connection |
4"Fig 2202 Hammer union wing X Flange |
Well Testing Equipment Sand Filter 16 3/4" x 10000psi
API 6A Sand Filter for Well Surface Testing Service 16 3/4" 10000psi
