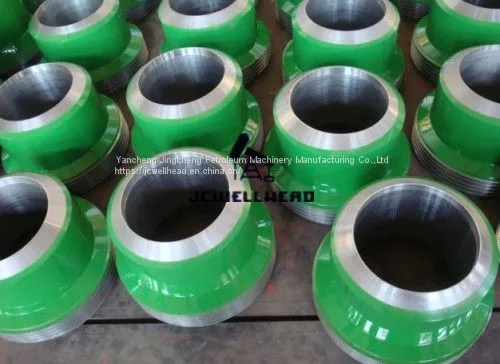

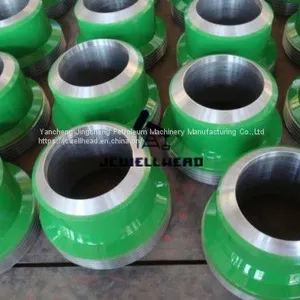

Wellhead Hammer Union Weco Union 2" x -Fig 1502
2" Fig 1502 Weco Hammer Union for Wellhead Connection
Overview of the Hammer Union
The hammer unions is designed and manufactured according to API standard strictly. The hammer
union is mainly used in oil well cementing operation , crushing, acidifying and well testing operation.
The hammer union is applied to the connection of blocking, Kill line, high pressure manifolds and
vehicle-mount system. And underground well operation is used to connect the various parts of the
pipeline parts and so on.
The Hammer Union is ranging in size from 1''to 12''with cold working pressures from1,000 psi to 20,000
psi. All unions have their own color signs for quick identification
Features of the Hammer Uion
* The hammer union is on high strength and pressure-bearing capacity
* The hammer union can be served in sour working condition
* The hammer union with LP thread, UN thread, EU thread to suit for different work
Specification of the Hammer Union
Nominal Pipe Size |
Total Length |
Nut Radius | Material |
Weight | |||||
Nut | Subs | ||||||||
in | mm | in | mm | in | mm | Lbs | Kgs | ||
2 | 50.8 | 3-5/8 | 92.1 | 2-15/16 | 74.6 | SF | SF | 5.25 | 2.4 |
2-1/2 | 63.8 | 4-1/4 | 108.0 | 3-5/8 | 92.1 | SF | SF | 8.0 | 3.6 |
3 | 76.2 | 4-15/16 | 125.4 | 4-1/16 | 103.2 | SF | SF | 14.0 | 6.4 |
4 | 101.6 | 5-15/16 | 150.8 | 4-25/32 | 121.4 | SF | SF | 23.0 | 10.4 |
6 | 152.4 | 6-5/8 | 168.3 | 6-7/16 | 163.5 | SF | SF | 44.5 | 20.2 |
8 | 203.2 | 7-1/4 | 184.2 | 7-11/16 | 195.3 | SF | SF | 61.0 | 27.7 |
Wellhead Hammer Union Weco Union 2" x -Fig 1502
2" Fig 1502 Weco Hammer Union for Wellhead Connection
