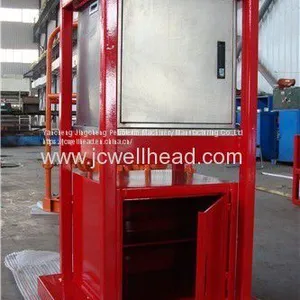

Well Testing ESD Control System
Well Surface Testing Emergency Shutdown System
Overview of the ESD Control System
The Emergency Shutdown System-ESD control system is the long-range capital equipment, the ESD
system controls the surface safety valve / SSV. The ESD Control console is composed of the control
cabinet, manage ducts, etc. The surface safety valve(SSV), for often closing type. When use, The ESD
control system urges the surface safety valve / SSV to be opened through the pressure medium. If keep
driving the pressure, the surface safety valve/SSV will be in the state of opening all the time.
Features of the ESD Control System
* Carry out remote control of the surface safety valve
* Easy to operate and maintenance
Emergency Shutdown(ESD) system Specification
Pneumatic Source Pressure |
0.1~1.0Mpa |
Non-Continuous Max. Pressure |
46Mpa |
Continuous Max. Pressure |
35Mpa |
Flow rate |
1.36 l/min |
Pressure ratio |
1:46 |
SSV Drive pressure |
21Mpa |
ESD Max. Working pressure |
35Mpa |
JC Petroleum Equipment Facotry manufactures and supplier the various wellhead manifold and
related parts to meet different requirement in oulfield service operation. The wellhead manfiolds
are conformed with API 6A and API16C specification, and applied for high pressure and high
temperature working condition. The wellhead manifold include choke and kill manifold,
fracturing manifold, testing manifold, drilling floor manifold. etc And we can design the wellhead
manfiold as per the customers' requirements
Well Testing ESD Control System
Well Surface Testing Emergency Shutdown System
