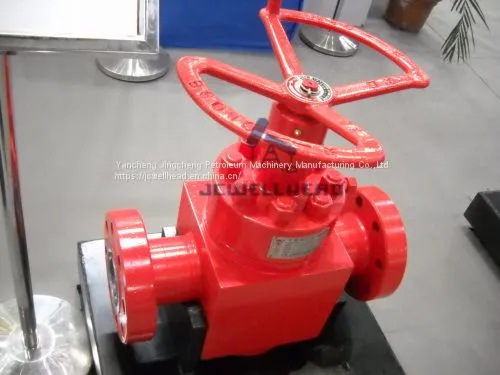

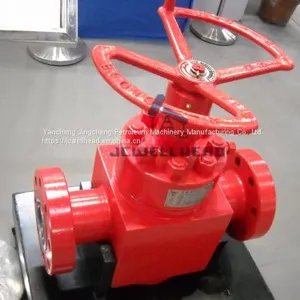

Oil Well FC Gate Valve 5 1/8" x 5 M
Wellhead 5 1/8" x 5M FC Gate Valve Cameron
Overview of the FC Gate Valve 5 1/8" x 5M
The 5 1/8" FC gate valve with 5000 psi working pressure is featured by high performance and
bi-directional sealing. The 5 1/8" FC Gate valve is designed and manufactured according to API 6A
latest Edition with advanced technology. The FC gate valve we supplied is a counterpart of Cameron
FC gate valves that gives fairly good performance under high pressure service. It is applicable for oil
and gas wellhead, Christmas tree and choke and kill manifold rated 5,000Psi to 20,000Psi. No special
tools are required when it comes to replace valve gate and seat.
Features of FC Gate Valve 5 1/8" x 5M
* The FC gate valve is with forging valve body and bonnet
* The FC gate Valve is operated by small torque
* The FC gate Valve has double metal sealing for valve body and bonnet
Specification of the FC Gate Valve 5 1/8" x 5M
NO |
Size |
Working Pressure |
Material Class |
Product Specification Level |
Performance Requirement |
Temperature Class
|
1 |
2-1/16" |
5000 psi, 10000 psi, 15000 psi |
DD, EE, FF, to NACE MR-01-75 |
PSL1 PSL2 PSL3 PSL4 |
PR1 |
PU |
2 |
2-9/16" |
5000 psi, 10000 psi, 15000 psi |
||||
3 |
3-1/16" |
10000 psi, 15000 psi |
||||
4 |
3-1/8" |
5000psi |
||||
5 |
4-1/16" |
5000 psi, 10000 psi, 15000 psi |
||||
6 |
5 1/8" |
5000 psi, 10000 psi, 15000 psi |
||||
7 |
7 1/16" |
5000 psi, 10000 psi, |
Oil Well FC Gate Valve 5 1/8" x 5 M
Wellhead 5 1/8" x 5M FC Gate Valve Cameron
