Help CenterWellhead Blind Flange 4 1 / 16" x 2 1 / 16" 10K
Related Products
-
Wellhead Double Studded Adapter Flange 21 1 / 4" x 5000psi - 20 3 / 4" x 3000psiUS$ 1.0 - 10.0MOQ: 1 Piece -
Wellhead Drilling Adapter Flange 13 5 / 8" x 5000 Psi API 6AUS$ 1.0 - 10.0MOQ: 1 Piece
-
Wellhead Double Studded Adapter Flange API 6AUS$ 1.0 - 10.0MOQ: 1 Piece
-
Wellhead Ring Jont Gasket BX 159US$ 1.0 - 10.0MOQ: 1 Piece
-
Wellhead Spacer Spool 18 3 / 4" 15M x 18 3 / 4" 15MUS$ 1.0 - 10.0MOQ: 1 Piece

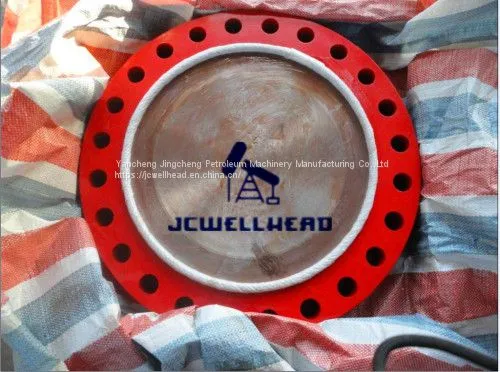

Wellhead Blind flange 13 5/8" x 5000psi
Oil Well API 6A Blind Flange 13 5/8" x 5000psi
Overview of the wellhead blind flange
The Wellhead Blind Flange is manufactured as per API specification. The API Blind Flange with no
opening or center bore, normally used to close-off completely an unused line or connection; the ends
of a piping system, or pressure vessel.
After being sealed, and re-opened, the Blind flange permits easy access to the interior of a line or
vessel. Downstream, a modification of a blind flange – Target flange (with a counter bore filled with
lead) – is used to cushion and reduce the erosive effect of high velocity abrasive fluid. Though there
has been caution in using lead, as a problem can occur if the lead filling in the cavity escapes the
cavity and moves into the flow bore blocking the flow.
Technical parameter
Rated working pressure/psi |
Flange size range |
|
Type 6B (in) |
Type 6BX (in) |
|
2000 |
2-1/16" ~ 21-1/4" |
26-3/4" ~ 30" |
3000 |
2-1/16" ~ 20-1/4" |
26-3/4" ~ 30" |
5000 |
2-1/16" ~ 11" |
13-5/8" ~ 21 1/4" |
10000 |
- |
5-1/8" ~ 21 1/4" |
15000 |
- |
5-1/8" ~18 3/4" |
20000 |
- |
7-1/16" ~13 5/4" |
JC Petrolem Equipment factory is specialized in design and manfuacture the API 6A wellhead equipment. It include Wellhead X-tree, Wellhead Valves, Wellhead crossover, Wellhead high pressure manifold, and wellhead high pressure pipe fittings. All the products are in high quality with traceability.
Wellhead Blind flange 13 5/8" x 5000psi
Oil Well API 6A Blind Flange 13 5/8" x 5000ps
