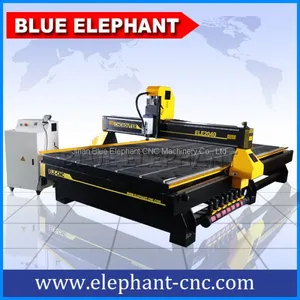

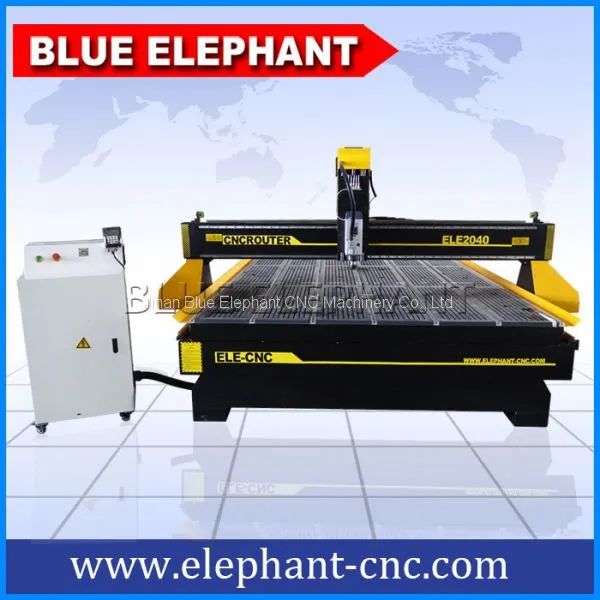

Help CenterELE2040 3 Axis Wooden Woodworking Cnc Cutting Engraving Router Machine
Related Products
-
ELE1836 3d High Speed Cnc Carving Machine With T-slot Vacuum TableUS$ 3500 - 7000MOQ: 1 Set -
ELE1325 3D 4x8ft Cnc Engraving Cutter Wood Carving MachineryUS$ 3000 - 7000MOQ: 1 Set
-
3 Axis 1530 Combination Cnc Router Woodworking Machines for Wood Door MakingUS$ 5000 - 6000MOQ: 1 Set
-
Blue Elephant Professional Air Cooling Spindle 3 Axis 1550 Woodworking Cnc Router Machine for MDF CuttingUS$ 5600 - 7000MOQ: 1 Set
-
Medium Size Woodworking CNC Router Large Countertops Table Cnc Machine Which Configuration Can be SelectedUS$ 5000 - 8000MOQ: 1 Set
Features:

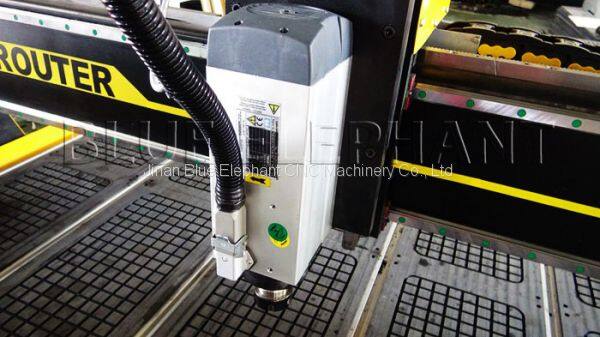

- Spindle:6 kw Germany Italy HSD air cooling spindle
- Working area:2000*4000*200mm

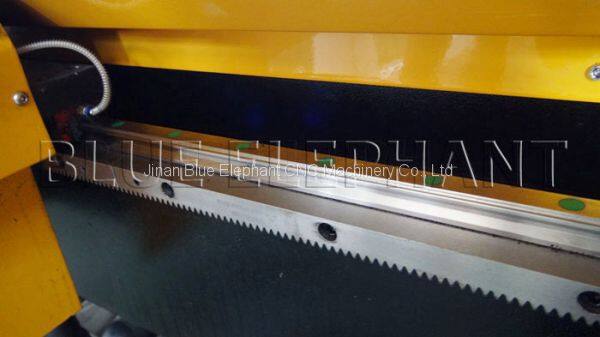

- Transmission: German O. Henry rack
- Vacuum pump: 7.5 KW Vortex pump
- Inverter:7.5 kw Taiwan Delta Inverter
- Drive motor:Japan YASKAWA
- Working table:Vacuum & T-slot working table
- Tool calibration sensor

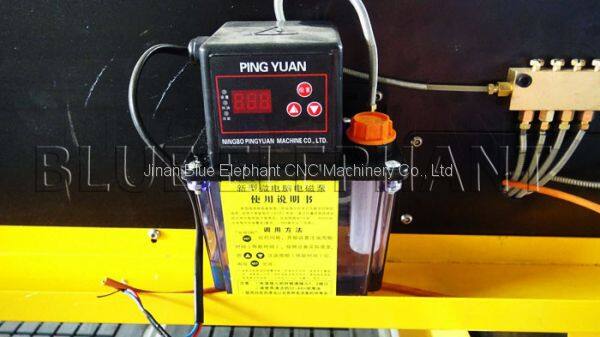

- Oil lubrication system
- Switch: Japanese OMRON Switch
Parameters:
| Description | Parameter |
| X,Y,Z Working Area | 2000x4000x200mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| Table Surface | Vacuum & T-slot Table |
| Frame | Welded structure steel tube frame |
| X, Y Structure | German O. Henry rack,#20Taiwan HIWIN Linear guide |
| Z Structure | Ball screw and#20 Taiwan HIWIN Linear guide |
| Vacuum pump | 7.5 KW Vortex vacuum pump |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Power | 6KW Italy HSD air cooling spindle |
| Spindle Speed | 0-18000RPM |
| Drive Motors | Japan YASKAWA servo motor and driver |
| Inverter | 7.5 kw Taiwan Delta Inverter |
| Command Language | G Code |
| Control System | DSP |
| Computer Interface | USB |
| Flash Memory | 512M(U Disk) |
| Collet | ER32 |
| X,Y Resolution | |
| Software Compatibility | Type3 Software, (Option: Artcam Software) |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
PS:All the working area and specifications can be customized according to your requests.
Details
Packageing and shipping
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 15 working days after payment
Our clients
Our service
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or WhatsApp) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
