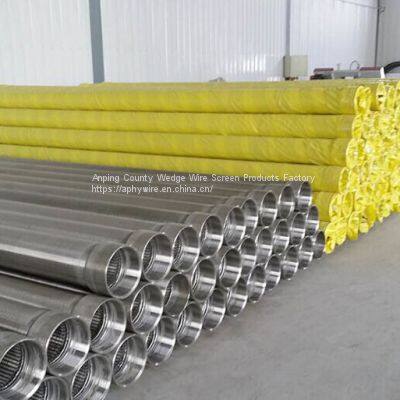

Welded Wedge Wire Johsnon Water Well Screen
- Xingang Port, Tianjin, China
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
Brand Name | Anping Wedge Wire Screen Factory | Place of Origin | China | |
Model Number | Diameter 1“-16“ |
Product Description
Contact Person: Miss Anne Gu
Mobile: 0086-0-13653289943
MSN:aphengyuanwire@hotmail.com
produce name: v wire water well screens, wire wrapped screens pipe, Johnson Screen, spiral screen tube, welded wedge wire screen, reversed slot screen, continuous slot pre-pack, water filter, screen cylinders, stainless steel slot tube,reverse rolled screen, strainer pipe, continous slot wire wrap well screens, pipe base well screen, ribbed-type wire wrapped screen, stainlss steel or low carbon galvanized or mild steel wire screen, wire wrapped liner, woven wedge wire screen, slot wire screen tube, conical well screen, Suction strainers, strainer screensm wide slit screens, well point screens, PPS screen, oil screen tube
Profile V Wire Water Well Screen Description:
Product Name | Profile V Wire Water Well Screen |
Material | Stainless Steel |
Grade | 304 |
O.D | 219 mm |
Size | 8-5/8 " |
Slot size | 1.0 mm |
Length | 5.8 m |
End connection | Welded rings OR male/female threaded couplings |
Wire size | 118 # |
Support rod | ø3.0-ø5.0mm round wire or Vee shaped wire |
Wire shape | V shape |

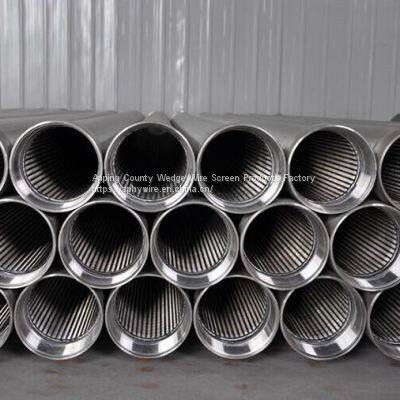

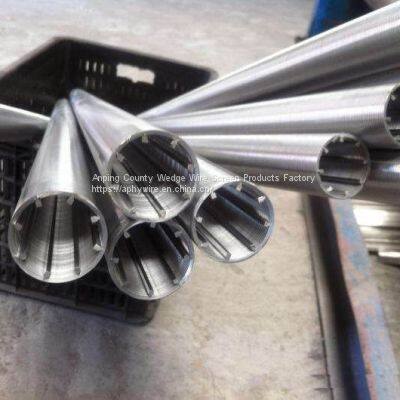

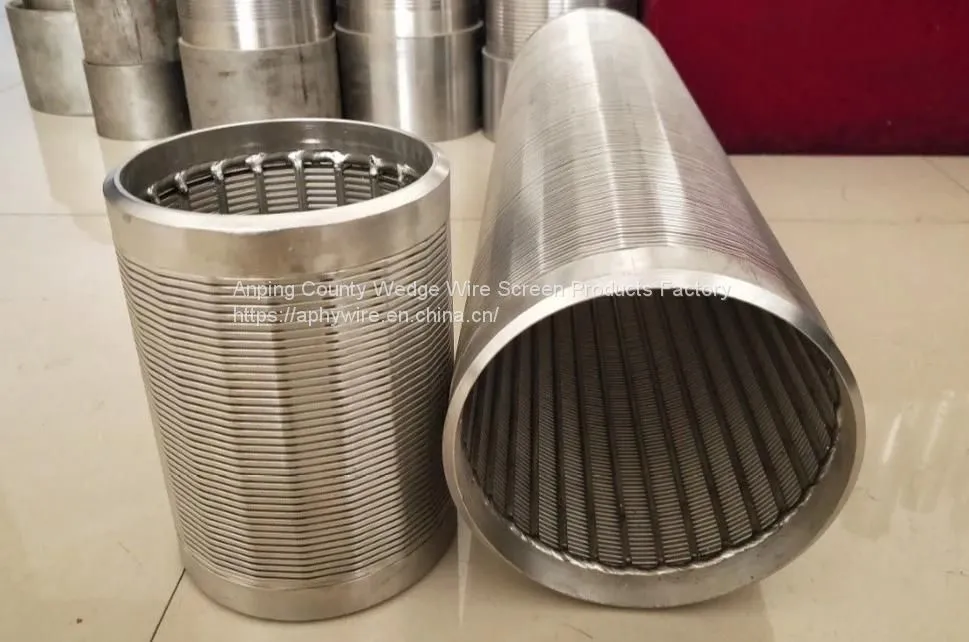

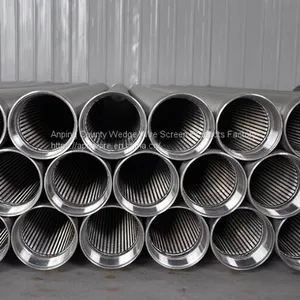

Water well screen is welded by V wire and support rod.
There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.

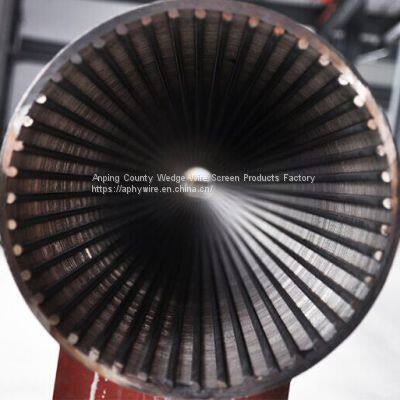

The wrapped wire is V shape, and the support rod is O or V shape.
Filter from outside to inside.
Profile V Wire Water Well Screen Regular Specifications:
SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE (WIDTH*HEIGHT) (MM) | RODS (MM) |
3-1/2 | 88.9 | 1.0 | 3 | >22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
4-1/2 | 114.3 | 1.0 | 3 | >28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
6-5/8 | 168.3 | 0.75 | 5.8 | >40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
6-5/8 | 168.3 | 1.0 | 5.8 | >33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
6-5/8 | 168.3 | 0.63 | 5.8 | >83 | 45 | 3.2*6.0 | 5.0MM*32 |
8-5/8 | 219.1 | 1.0 | 5.8 | >34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
8-5/8 | 219.1 | 1.0 | 5.8 | >50 | 38.2 | 3.0*5.0 | 4.8MM/48 |
8-5/8 | 219.1 | 1.0 | 5.8 | >60 | 46 | 3.2*6.0 | 4.0MM/48 |
10-3/4 | 273.1 | 0.75 | 5.8 | >50 | 32.9 | 2.3*3.5 | 4.8MM/55 |
10-3/4 | 273.1 | 1.0 | 5.8 | >60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
10-3/4 | 273.1 | 1.0 | 5.8 | >100 | 48 | 3.2*6.0 | 5.0MM/55 |
12-3/4 | 323.9 | 1.0 | 5.8 | >120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
14 | 355.6 | 1.0 | 3 | >80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Special specification can be made according to your need!
Profile V Wire Water Well Screen Advantages:
Not easy to jam
the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.
Slot even
The CNC machine tools strictly control the gap between the wire, so that the gap is even.
Strong corrosion resistance
Stainless steel 304 have the high corrosion resistance
Industry:
Johnson Screen Mesh specific continuous-slot construction aims to optimize flow rates, minimize clogging and help develop the water-bearing geological formations faster. It is best applied in the following situations:
Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells
Replace Johnson V Water Wire Screen Pipe Strength factory
Wire wrap screen Advantages:
1: Non-clogging capabilities : Smooth surface, low hydraulic resistance, high filtration accuracy, never clogging;
2: Self supporting :
3: High abreaction resistance :High mechanical strength, high corrosion resistance, acid-resistant, heat-resistant;
4: Large open area
5: Better sand filtration
6: Energy saving
7: Lowest possible cost
8: Long using life :High capacity filter surface, effective backwashing, and long trouble-free life.
9: Maximum flow capacity :The maximum diameter of screen pipe can be produced to 1300mm,
and the length of screen pipe can be produced to 6000mm
10: Made from V shaped profile wire and welded by an unique welding process, wedge wire screens have great strength, precision and long service life. The features make it attractive solutions for cleaning, filtering, sifting or fractionation, dehydration liquid and granular media
