Contact Person: Miss Anne Gu 0086-0-13653289943
MSN: aphengyuanwire@hotmail.com
skype: anne_gu

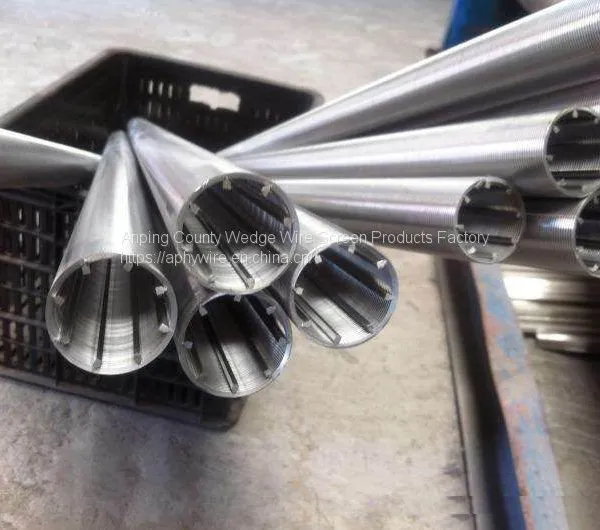

Product Name: v wire water well screen, wire wrapped screen pipe, Johnson specialty screen, spiral screen tube, strainer pipe, rod based continous slot wedge wire screen, drilling well screen, reversed rolled slot well screens, screen cylinders, continuous-slot well screen, Well screen, water filter, filteration element
Material: Low carbon galvanized wire(LCG), mild steel wire, stainless steel wire (ss 302, ss304, ss304L, ss316, ss316L, etc)
Diameter: 1-40inch (20-1000mm)
Slot: 0.05mm, 0.08mm, 0.10mm, 0.15mm, ......, 6mm
Length: up to 6meters
End Connection: welded rings(plain beveled ends for butt welding) or threaded male and female coupling(spiral)
Uses: The strainer is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.
Water Well Screen Parameter selection table:
| SIZE (Inch) |
O.D (mm) |
SLOT (Inch) |
LENGTH (M) |
Collapse Strength (PSI) |
Tensile Weight (ton) |
Wire size (mm) |
Support RODS (mm) |
| 4-1/2 | 114.3 | 0.040 | 3 | 395 | 6 | 2.2*3.5 | 3.8mm/22 |
| 4-1/2 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.5 | 3.8mm/22 |
| 6-5/8 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
| 8-5/8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*4.6 | 3.8mm/48 |
| 8-5/8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*4.6 | 3.8mm/48 |
| 8-5/8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 10-3/4 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8mm/55 |
| 10-3/4 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8mm/55 |
| 10-3/4 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8mm/55 |
Water Well Screen Sizes:
Diameter:2-1/2", 3", 4-1/2", 6-5/8", 8-5/8", 10-3/4", 12-3/4", 14", 16"
Open area: up to 80%.
Material:Low Carbon ,Low Carbon Galvanized steel (LCG),Stainless Steel( 304,etc.), 904L etc.
Length: 2.9m or 5.8m to fit container, up to 6 meters.
Slot:0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm in usual, also can be others.
End Connection:Plain beveled ends for butt welding, male/female threaded,Flange, Closed Up etc.
Other materials available upon request.
Wate Wire Screen provide a unique combination of the most important features required for maximum screening efficiency.
The product is custom designed to suit the specific requirements of the customer and to enable a relatively low cost and high performance solution for the screening application.
The high open area of the Wedge Wire screen provides excellent capacity.
Wedge Wire screen offers continuous slot openings that widen inwardly so that particles tend to pass through the screen.
.
If you have any enquires please feel free to contact us !
Anping Wedge Wire Screens Facotry mainly products are :stainless steel vee sharped wire /wrap wire,johnson screeen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen etc.
