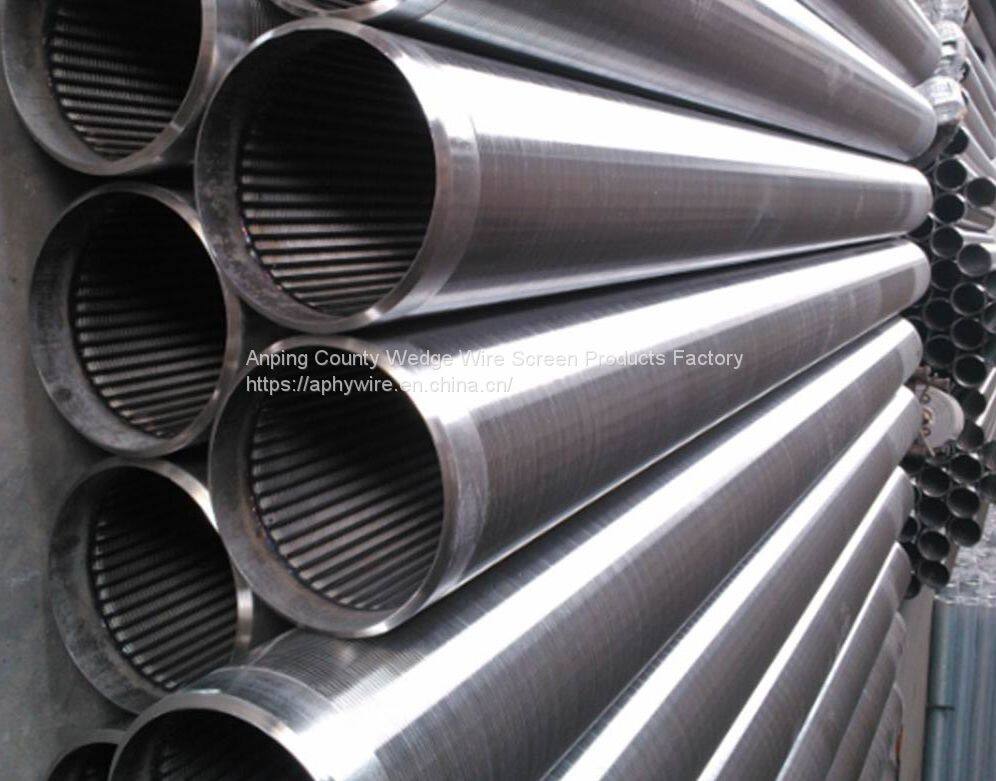

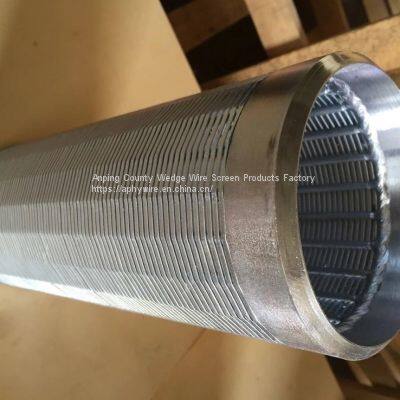

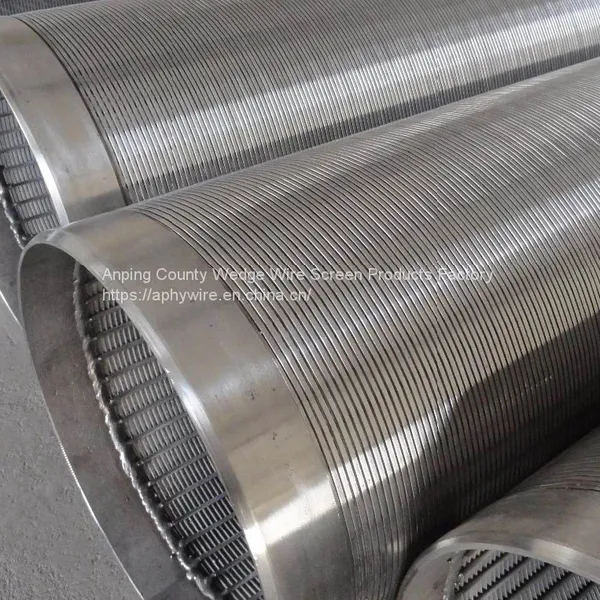

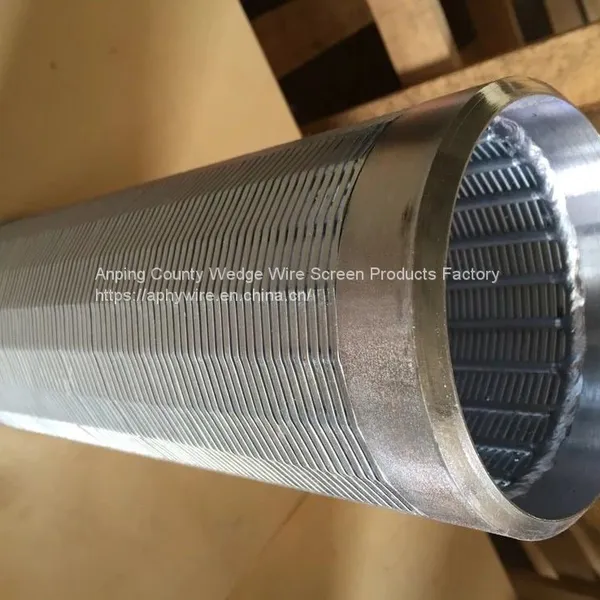

Help CenterWedge Wire Johnson Screen Pipe , Vee-wire Wrapped Screen Tube for Well Drilling, Sand Control, Dewatering Pump
Related Products
-
Wedge Wire Wrap Well Screen , Dewatering Well Screen Pipe, Sand Control Well Screen TubeUS$ 80 - 180MOQ: 15 Pieces -
Wire Wrapped Sprial Screen Pipe, Stainless Steel Strainer PipeUS$ 95 - 195MOQ: 10 Pieces
-
Woven Wedge Wire Water Well Screen Pipe, Wire Wrapped Johnson Filter Screen TubeUS$ 20 - 70MOQ: 20 Meters
-
WATER WELL SPIRAL SCREEN TUBE, No Magnetic Wedge Wire 10US$ 50 - 150MOQ: 10 Pieces
-
Perfect Round Water Well Screen Pipe, Wedge Wire Johnson Filter TubeUS$ 30 - 85MOQ: 30 Meters
Johnson screens
Johnson Screen mostly refers to V - Wire Water Well Screen.

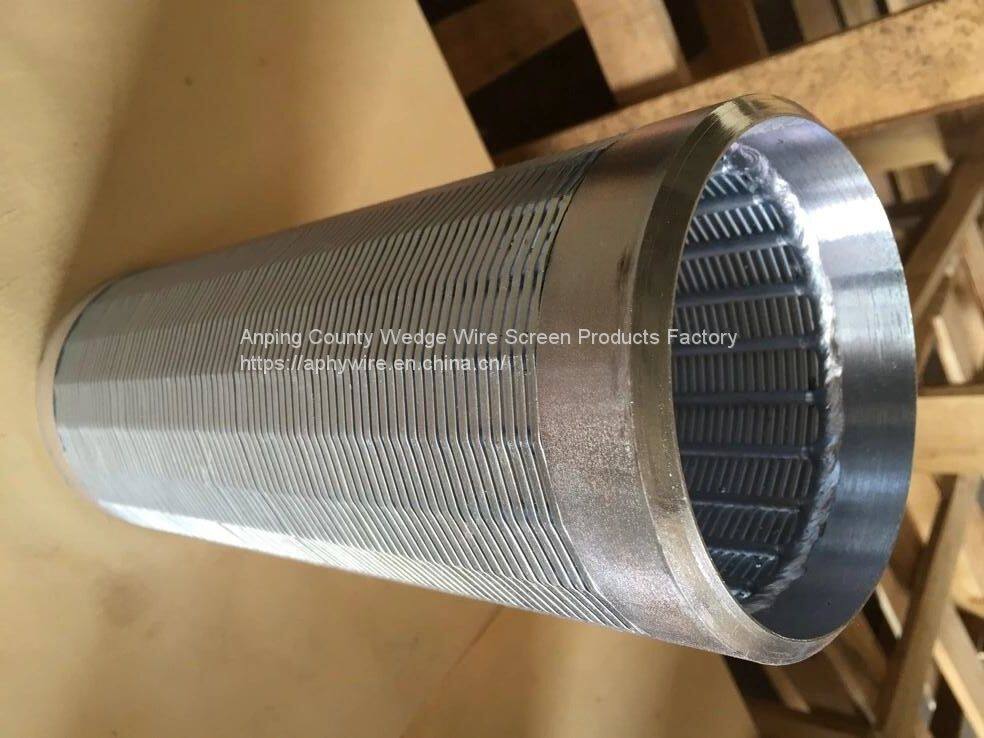

Johnson screen is manufactured with V-shaped profile wire which is spirally wound
around a cage of longitudinal support rods.
Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire.
This spacing gives passage for water to enter.
The entire process is completed on fully computerized machines.
Typical Specifications:
Diameter Available:
1.5", 2", 3", 4", 6", 8", 10", 12", 14"
Slot (mm):
0.15,0.25, 0.50, 0.75,1.00,1.50,2.00,3.00
Lengths
6 Mts. & 3 Mts.
Material
Low Carbon Galvanized Steel ( LCG ) and Stainless Steel ( SS-304 )
Wedge Wire Screen Pipe Specifications:
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
3-1/2 |
88.9 |
1.0 |
3 |
＞22 |
10.2 |
2.3*3.5 |
3.8MM/22 |
4-1/2 |
114.3 |
1.0 |
3 |
＞28 |
11.5 |
2.3*3.5 |
3.8MM/22 |
6-5/8 |
168.3 |
0.75 |
5.8 |
＞40 |
12.8 |
2.3*3.5 |
3.8MM/32 |
6-5/8 |
168.3 |
1.0 |
5.8 |
＞33 |
12.8 |
2.3*3.5 |
3.8MM/32 |
6-5/8 |
168.3 |
0.63 |
5.8 |
＞83 |
45 |
3.2*6.0 |
6.0MM*32 |
8-5/8 |
219.1 |
1.0 |
5.8 |
＞34 |
21.9 |
2.3*3.5 |
3.8MM/48 |
8-5/8 |
219.1 |
1.0 |
5.8 |
＞50 |
38.2 |
3.0*5.0 |
4.0MM/48 |
8-5/8 |
219.1 |
1.0 |
5.8 |
＞60 |
46 |
3.2*6.0 |
5.0MM/48 |
10-3/4 |
273.1 |
0.75 |
5.8 |
＞50 |
32.9 |
2.3*3.5 |
4.9MM/55 |
10-3/4 |
273.1 |
1.0 |
5.8 |
＞60 |
39.5 |
3.0*5.0 |
4.9MM/55 |
10-3/4 |
273.1 |
1.0 |
5.8 |
＞100 |
48 |
3.2*6.0 |
5.0MM/55 |
12-3/4 |
323.9 |
1.0 |
5.8 |
＞120 |
37.2 |
3.0*5.0 |
4.0MM/50 |
14 |
355.6 |
1.0 |
3 |
＞80 |
37.8 |
3.0*5.0 |
4.0MM/59 |
