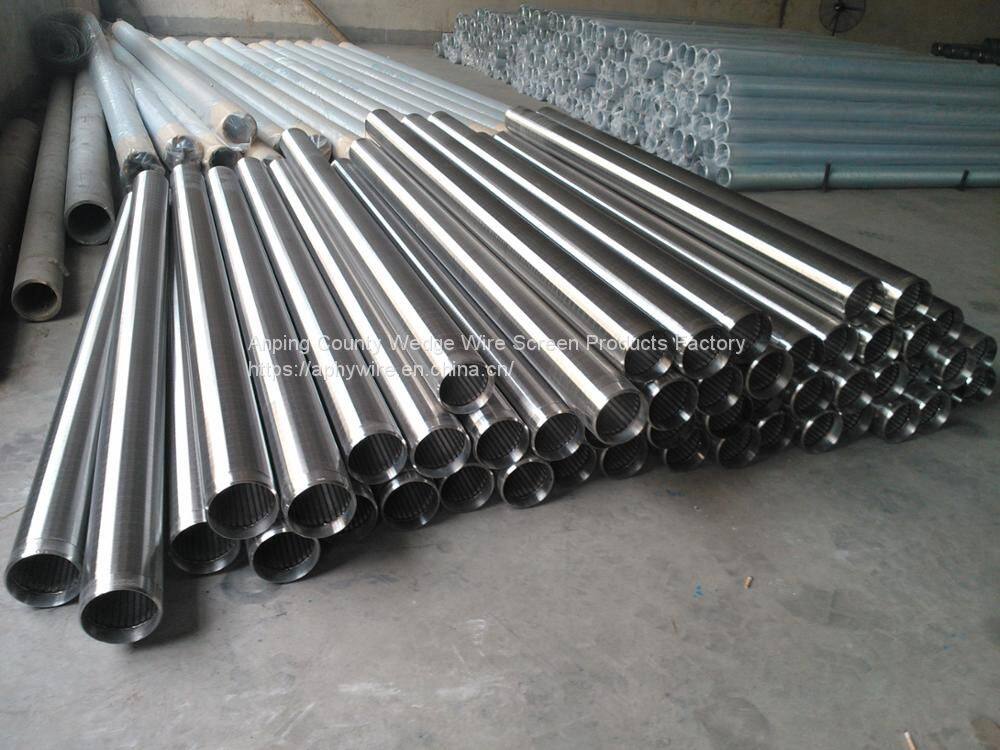

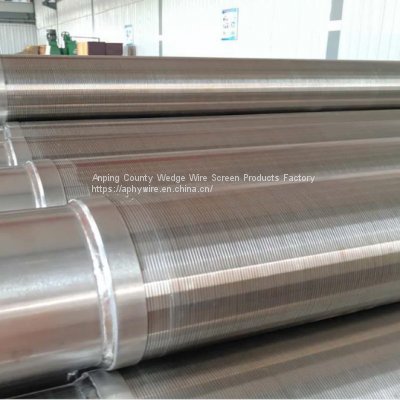

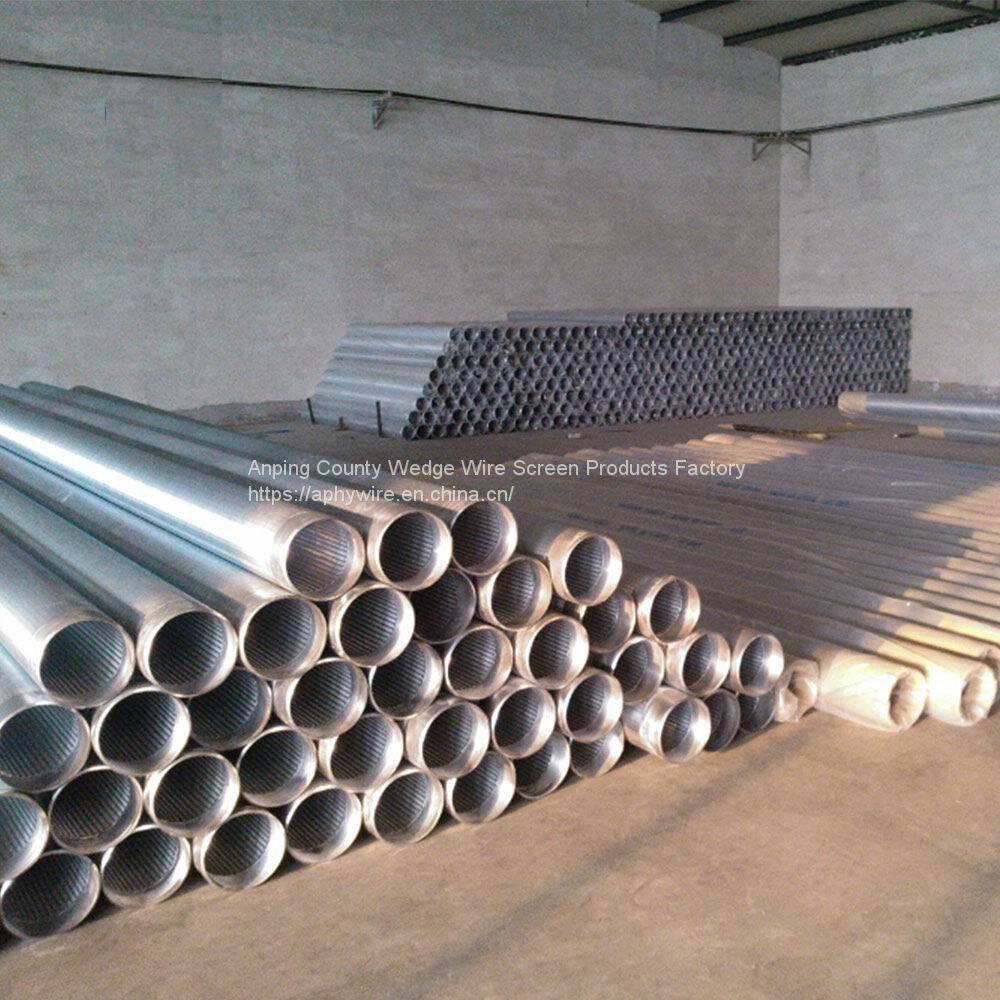

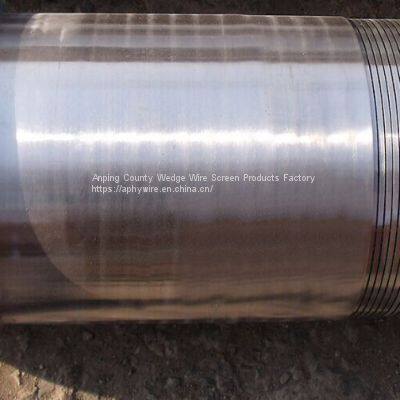

Help CenterJohnson Continuous Slot Pipe Bases Water Well Screen
Related Products
-
10-3/4US$ 85 - 200MOQ: 10 Pieces -
Rod Based Continous Slot Wedge Well ScreenUS$ 35 - 135MOQ: 10 Pieces
-
No Magnetic Stainless Steel Wedge Wire Johnson Water or Sand Control Well Screen PipeUS$ 80 - 180MOQ: 15 Sets
-
Wedge Wire Water Well Spiral Screen TubeUS$ 20 - 60MOQ: 10 Pieces
-
V Shaped Wire Welded Stainless Steel Water Well ScreensUS$ 60 - 360MOQ: 10 Pieces
Contact Person: Miss Anne Gu 0086-0-13653289943
MSN: aphengyuanwire@hotmail.com
produce name: v wire water well screens, wire wrapped screens pipe, Johnson Screen, spiral screen tube, welded wedge wire screen, reversed slot screen, continuous slot pre-pack, water filter, screen cylinders, stainless steel slot tube,reverse rolled screen, strainer pipe, continous slot wire wrap well screens, pipe base well screen, ribbed-type wire wrapped screen, stainlss steel or low carbon galvanized or mild steel wire screen, wire wrapped liner, woven wedge wire screen, slot wire screen tube, conical well screen, Suction strainers, strainer screensm wide slit screens, well point screens, PPS screen, oil screen tube
Specification (Profile wire):
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30
Specification (support rods):
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
Note: other wires and rods available upon request
Slot size
0.10, 0.15, 0.20, 0.25, 0.30....6.00mm also achieved upon request.
Material:
Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)
Length
Lengths up to 6 meters.
Diameter
ranging from 25mm to1000mm.
End connection
Plain beveled ends for butt welding or threaded (spiral)
Other sizes available on request .Deep well construction specifications available on question.
Water well screens are designed for depths of 100 m, 200 m, 350 m & 600 m.
Uses:The strainer is a kind of filtered water tubing with the perforation. it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, water supply, the environmental protection, Polluted water and sundries separating, the petroleum industry, crude oil refining, mineral processing, foodstuff processing, and so on the organic solution recycling filters.
Water Well Screen Parameter selection table:
| SIZE (Inch) |
O.D (mm) |
SLOT (Inch) |
LENGTH (M) |
Collapse Strength (PSI) |
Tensile Weight (ton) |
Wire size (mm) |
Support RODS (mm) |
| 4-1/2 | 114.3 | 0.040 | 3 | 395 | 6 | 2.2*3.5 | 3.8mm/22 |
| 4-1/2 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.5 | 3.8mm/22 |
| 6-5/8 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
| 8-5/8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*4.6 | 3.8mm/48 |
| 8-5/8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*4.6 | 3.8mm/48 |
| 8-5/8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8mm/48 |
| 10-3/4 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8mm/55 |
| 10-3/4 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8mm/55 |
| 10-3/4 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8mm/55 |
Water Well Screen Sizes:
Diameter:2-1/2", 3", 4-1/2", 6-5/8", 8-5/8", 10-3/4", 12-3/4", 14", 16"
Open area: up to 80%.
Material:Low Carbon ,Low Carbon Galvanized steel (LCG),Stainless Steel( 304,etc.), 904L etc.
Length: 2.9m or 5.8m to fit container, up to 6 meters.
Slot:0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm in usual, also can be others.
End Connection:Plain beveled ends for butt welding, male/female threaded,Flange, Closed Up etc.
Other materials available upon request.
Wate Wire Screen provide a unique combination of the most important features required for maximum screening efficiency.
The product is custom designed to suit the specific requirements of the customer and to enable a relatively low cost and high performance solution for the screening application.
The high open area of the Wedge Wire screen provides excellent capacity.
Wedge Wire screen offers continuous slot openings that widen inwardly so that particles tend to pass through the screen.
.
If you have any enquires please feel free to contact us !
Anping Wedge Wire Screns Factory products are :stainless steel vee sharped wire /wrap wire,johnson screeen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen etc.
