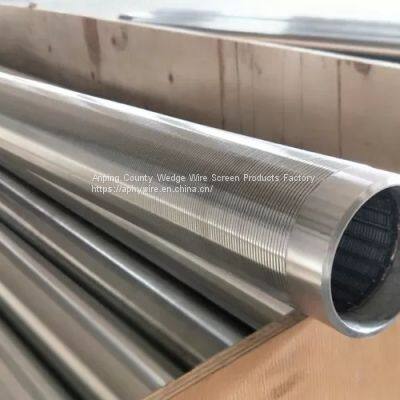

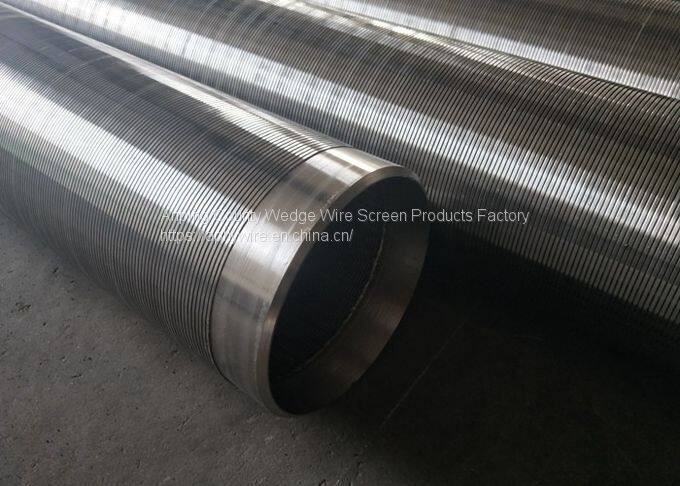

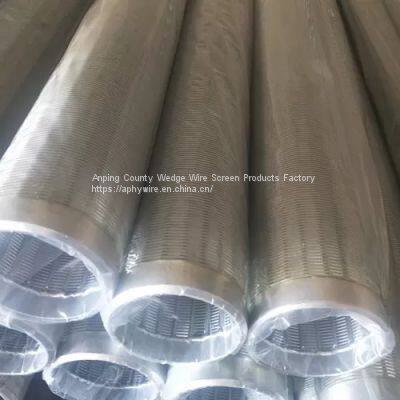

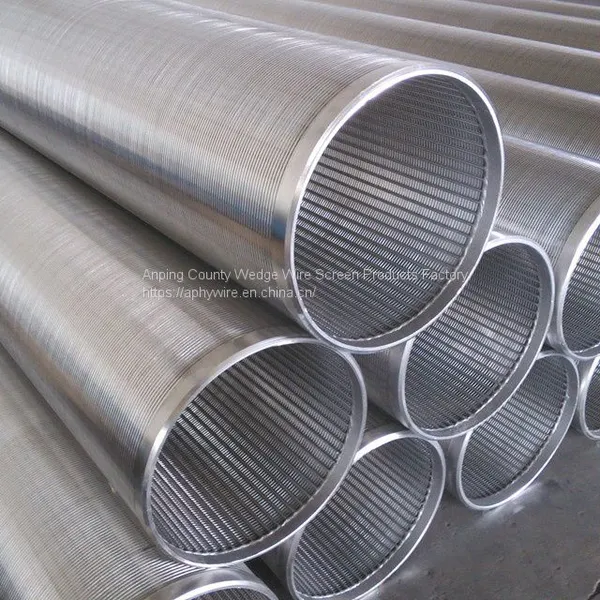

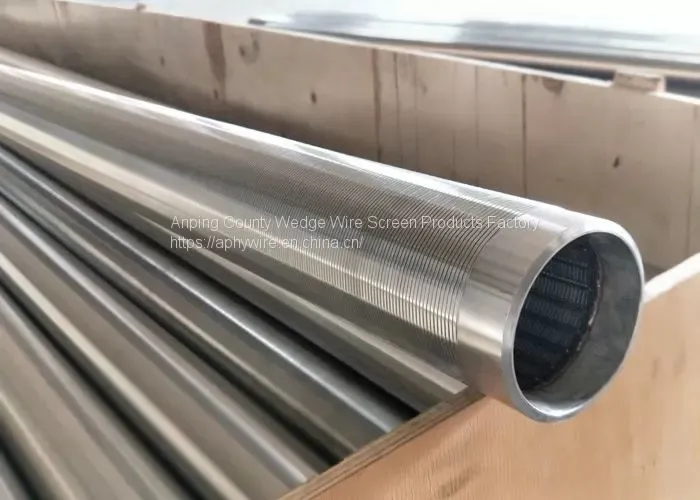

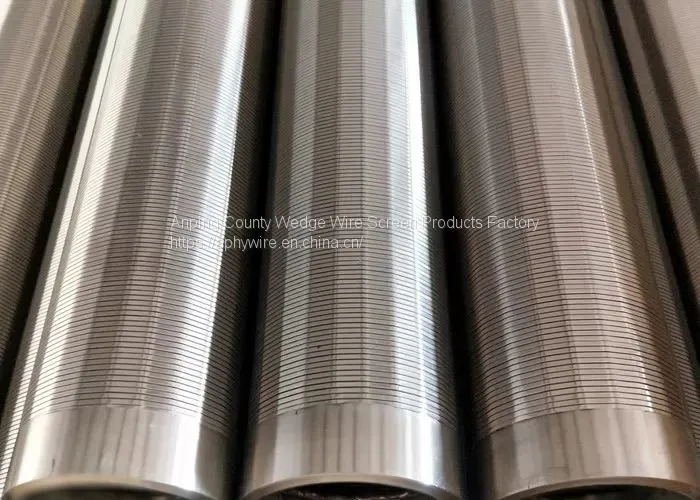

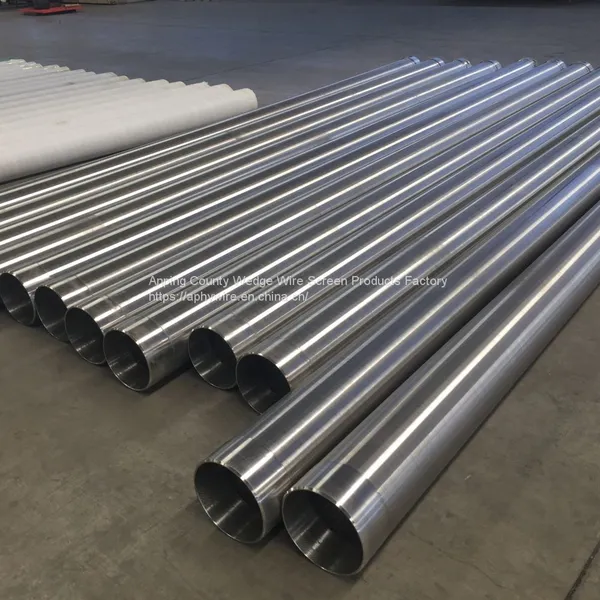

Johnson water well screen, Stainless Steel 304L Sand Control Screens For Waste Water Treatment Plant
Product Name: v wire water well screen, wire wrapped screen pipe, Johnson specialty screen, spiral screen tube, strainer pipe, rod based continous slot wedge wire screen, drilling well screen, reversed rolled slot well screens, screen cylinders, continuous-slot well screen, Well screen, water filter, filteration element
Material: Low carbon galvanized wire(LCG), mild steel wire, stainless steel wire (ss 302, ss304, ss304L, ss316, ss316L, etc)
Diameter: 1-40inch (20-1000mm)
Slot: 0.05mm, 0.08mm, 0.10mm, 0.15mm, ......, 6mm
Length: up to 6meters

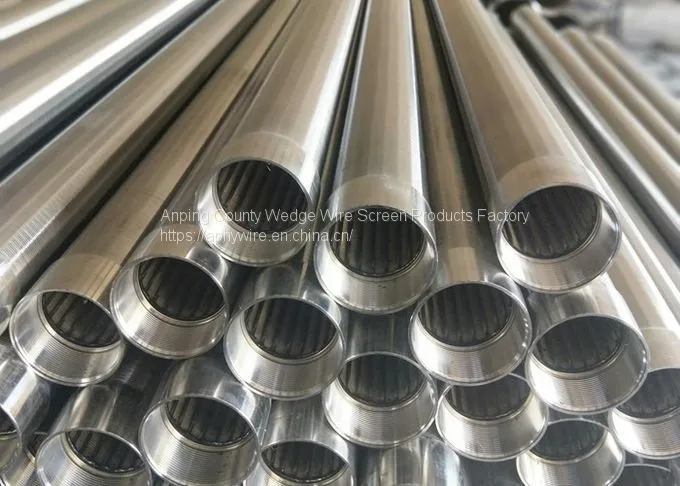

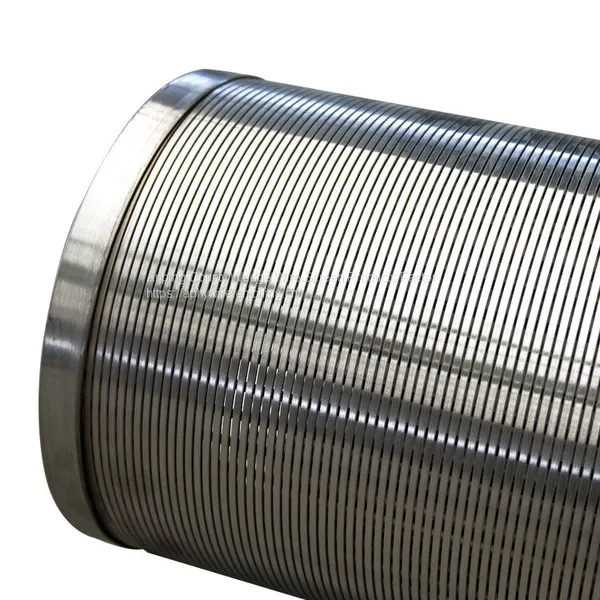

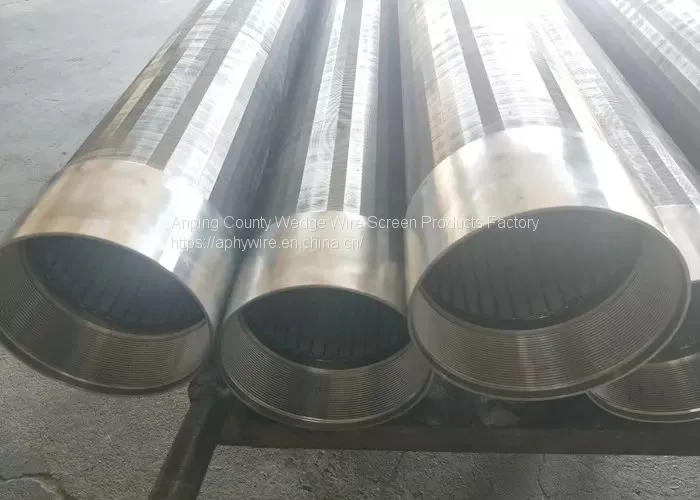

End Connection: welded rings(plain beveled ends for butt welding) or threaded male and female coupling(spiral)
Uses: The strainer is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Application:
· Water Well
· Waste Water Treatment
. Water supply systems
· Coal & Mine
· Food Processors & Beverage Screens
· Environmental protection
· Refining & Petrochemical
· Architecture & Construction
