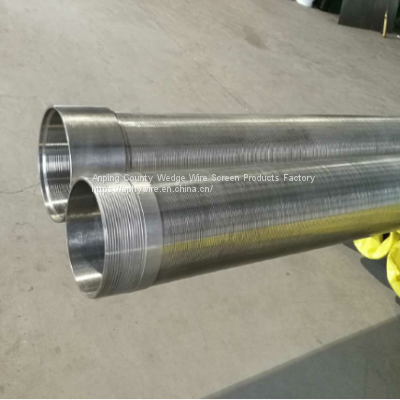

Help CenterWire Wrapped Screen Pipe
Related Products
-
Johnson Continuous Slot Pipe Bases Water Well ScreenUS$ 50 - 100MOQ: 50 Meters -
10-3/4US$ 85 - 200MOQ: 10 Pieces
-
Rod Based Continous Slot Wedge Well ScreenUS$ 35 - 135MOQ: 10 Pieces
-
No Magnetic Stainless Steel Wedge Wire Johnson Water or Sand Control Well Screen PipeUS$ 80 - 180MOQ: 15 Sets
-
Wedge Wire Water Well Spiral Screen TubeUS$ 20 - 60MOQ: 10 Pieces
Contact Person: Anne +86-13653289943
MSN:aphengyuanwire@hotmail.com
produce name: v wire water well screens, wire wrapped screens pipe, Johnson Screen, spiral screen tube, welded wedge wire screen, reversed slot screen, continuous slot pre-pack, water filter, screen cylinders, stainless steel slot tube,reverse rolled screen, strainer pipe, continous slot wire wrap well screens, pipe base well screen, ribbed-type wire wrapped screen, stainlss steel or low carbon galvanized or mild steel wire screen, wire wrapped liner, woven wedge wire screen, slot wire screen tube, conical well screen, Suction strainers, strainer screensm wide slit screens, well point screens, PPS screen, oil screen tube
Specification Details:
Diameter: 1-78.5"
Length:10ft, 20ft
Slot: 0.025mm, 0.03mm, 0.05mm, 0.1mm, 0.2mm, 0.3mm, 0.5mm, 0.75mm, 1.0mm,...50mm
Connection: threaded (NPT, PT, BSP), welded rings, flange
Profile V Wire Water Well Screen Regular Specifications:
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE (WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 5.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 4.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.8MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
