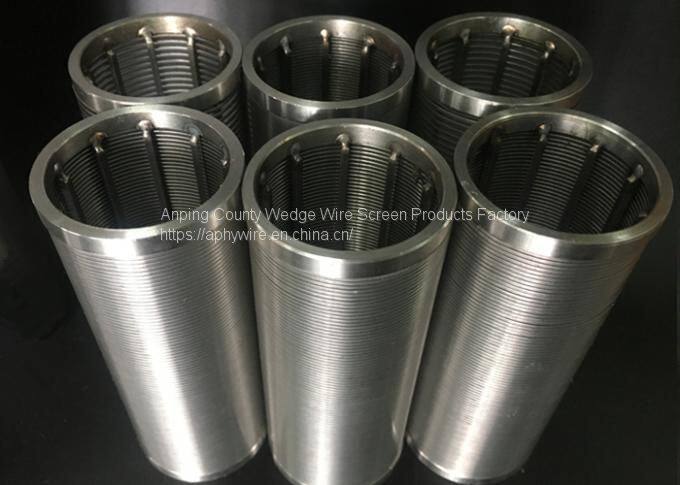

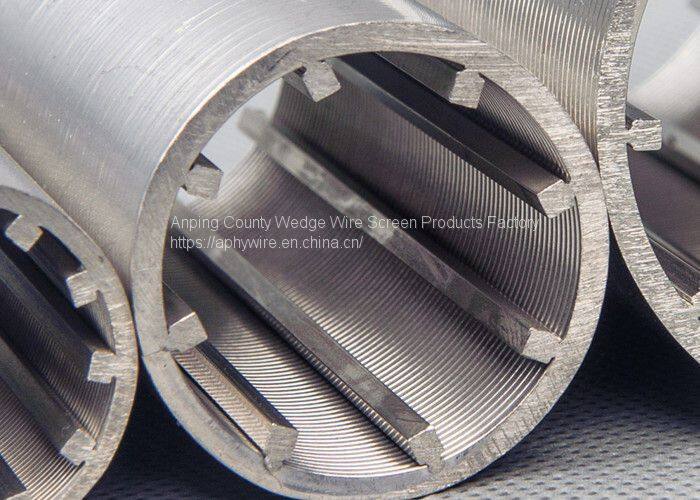

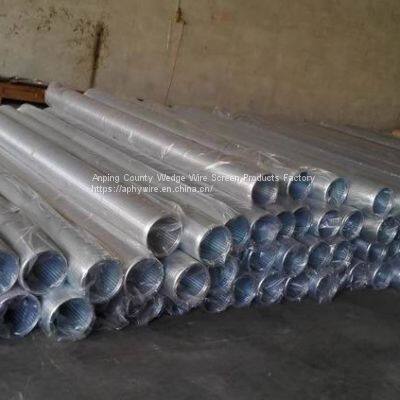

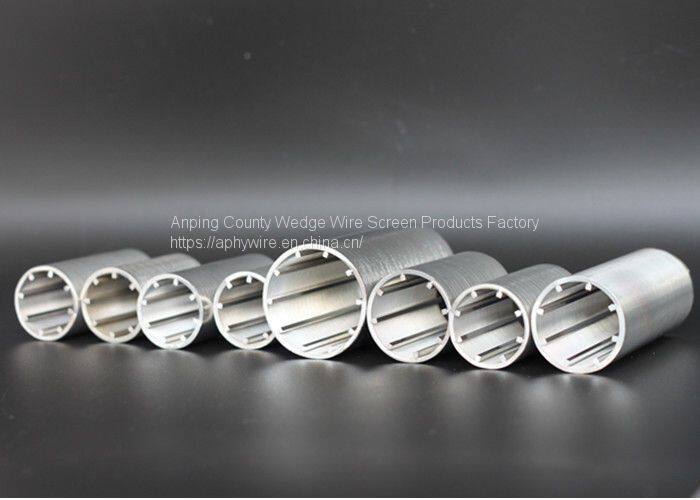

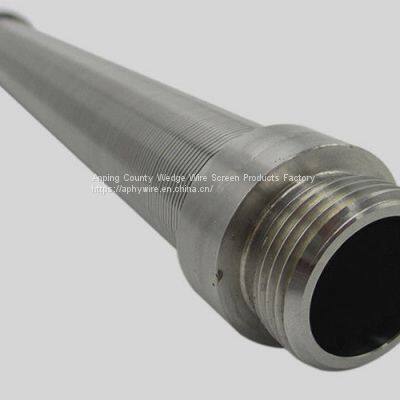

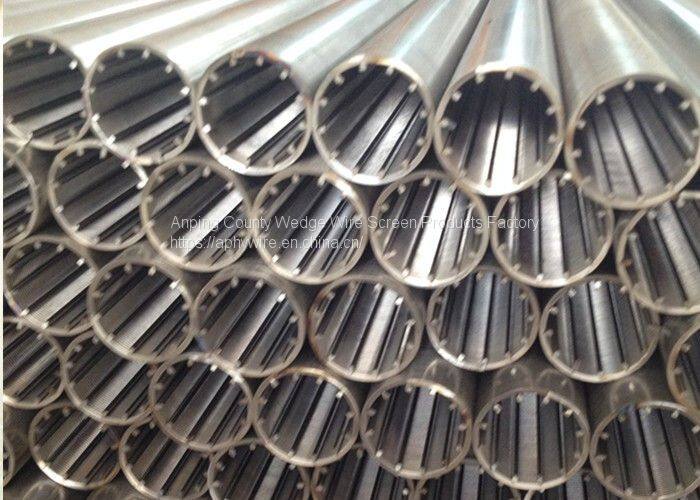

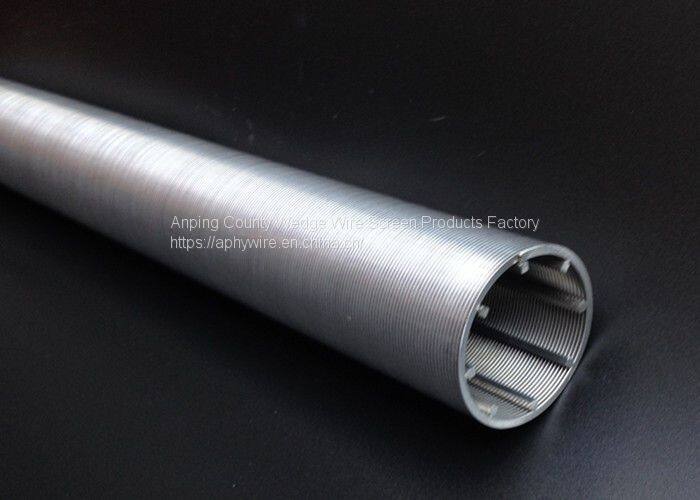

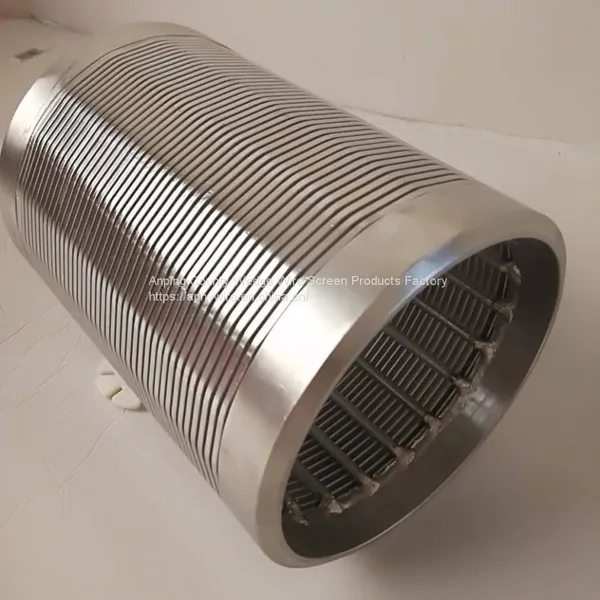

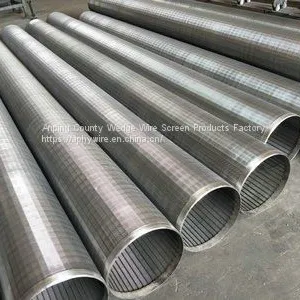

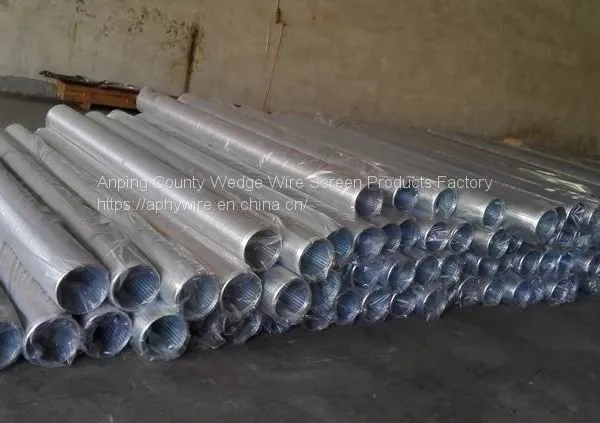

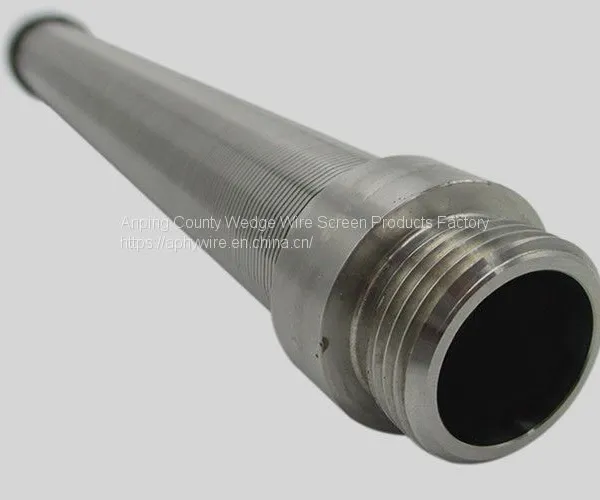

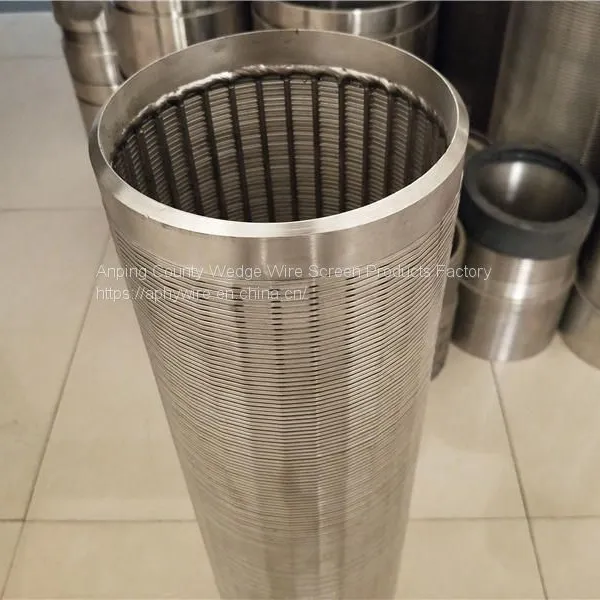

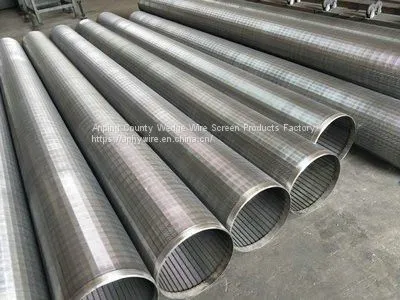

Help CenterWire Wrapped Sprial Screen Pipe, Stainless Steel Strainer Pipe
Related Products
-
Woven Wedge Wire Water Well Screen Pipe, Wire Wrapped Johnson Filter Screen TubeUS$ 20 - 70MOQ: 20 Meters -
WATER WELL SPIRAL SCREEN TUBE, No Magnetic Wedge Wire 10US$ 50 - 150MOQ: 10 Pieces
-
Perfect Round Water Well Screen Pipe, Wedge Wire Johnson Filter TubeUS$ 30 - 85MOQ: 30 Meters
-
Stainless Steel Water Well Screen , Dewatering Well Screen PipeUS$ 80 - 180MOQ: 30 Pieces
-
Pure Round Wedge Wire Filter ElementUS$ 52 - 150MOQ: 30 Meters
Johnson water well screen
A Johnson Screens well screen provides the following advantages to your well:
Stop sand production
Avoid pump damage
Improve well efficiency
Improve pumping efficiency
Maximize water flow rate into the well
Reduce well maintenance
Increase well life
In addition to our well screens, we also manufacture other top-quality well components. Select a product category for more detailed specifications and benefits of all our water well products and contact us for more information.
Wedge Wire Screen Pipe Specifications:
SIZE (INCH) | O.D (MM) | SLOT (MM) | LENGTH (M) | COLLAPSE STRENGTH (BAR) | TENSILE WEIGHT (TON) | WRAP WIRE(WIDTH*HEIGHT) (MM) | RODS (MM) |
3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
