Materials: 304 302 304L 316 316L stainless steel wire, can be made according to the customers requirement.

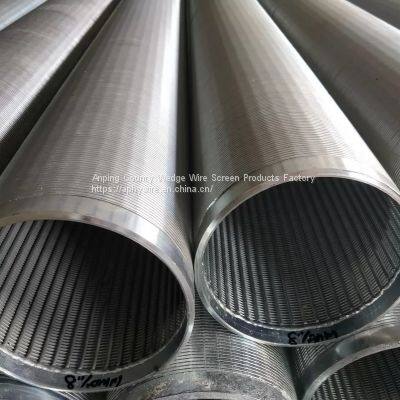

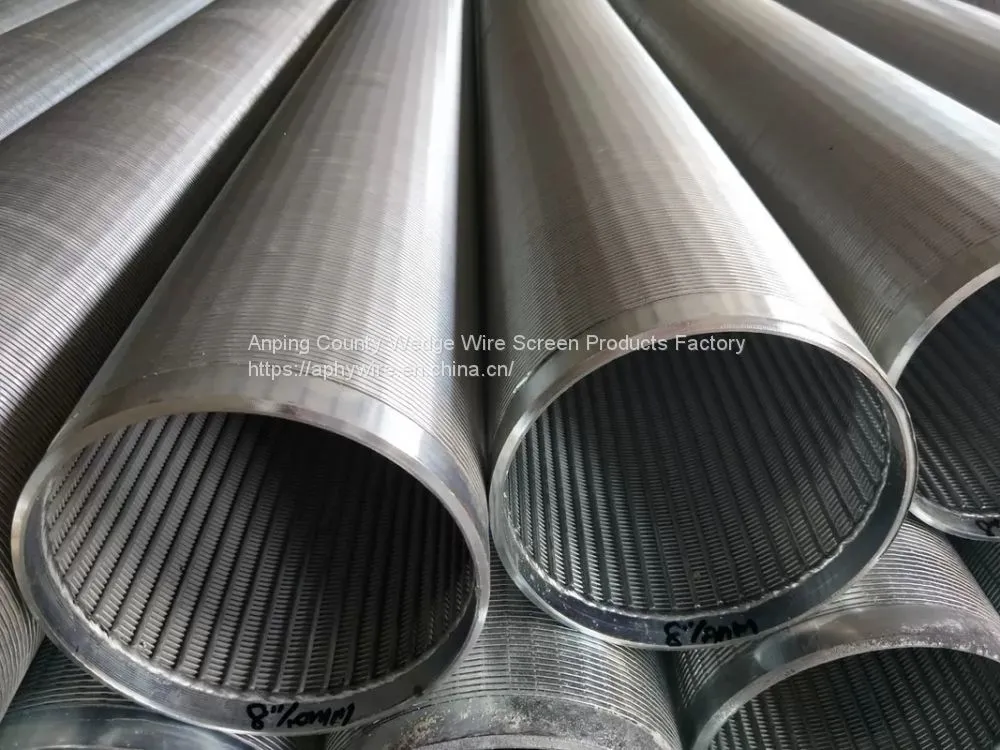

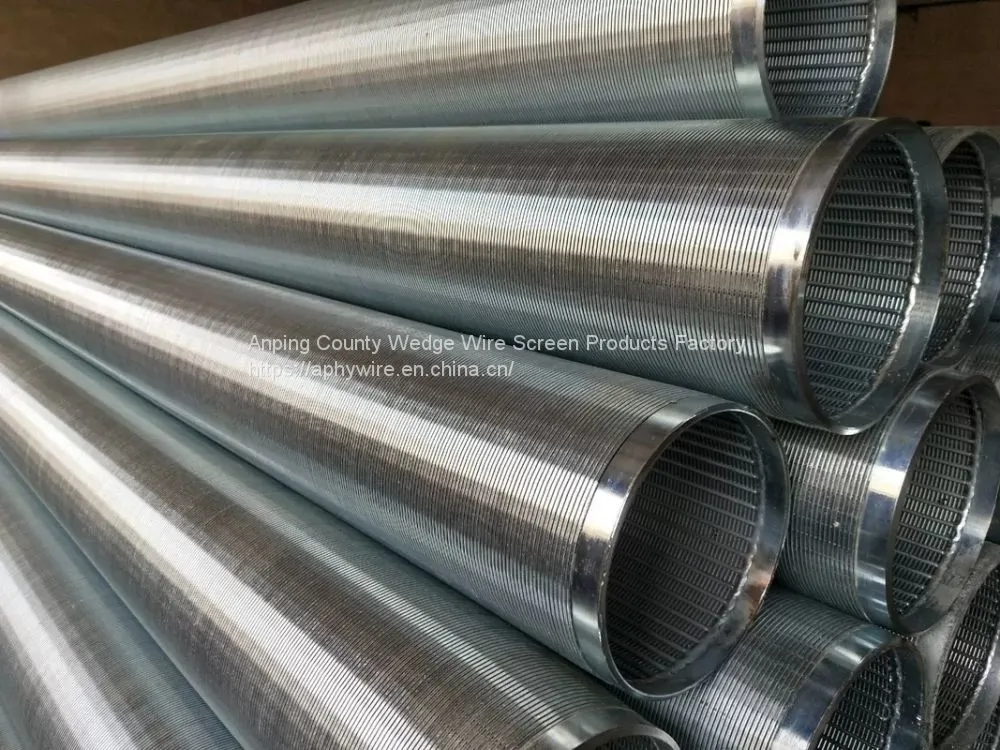

CharacteristicsThe welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Uses: The strainer is a kind of filtered water tubing with the perforation .it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

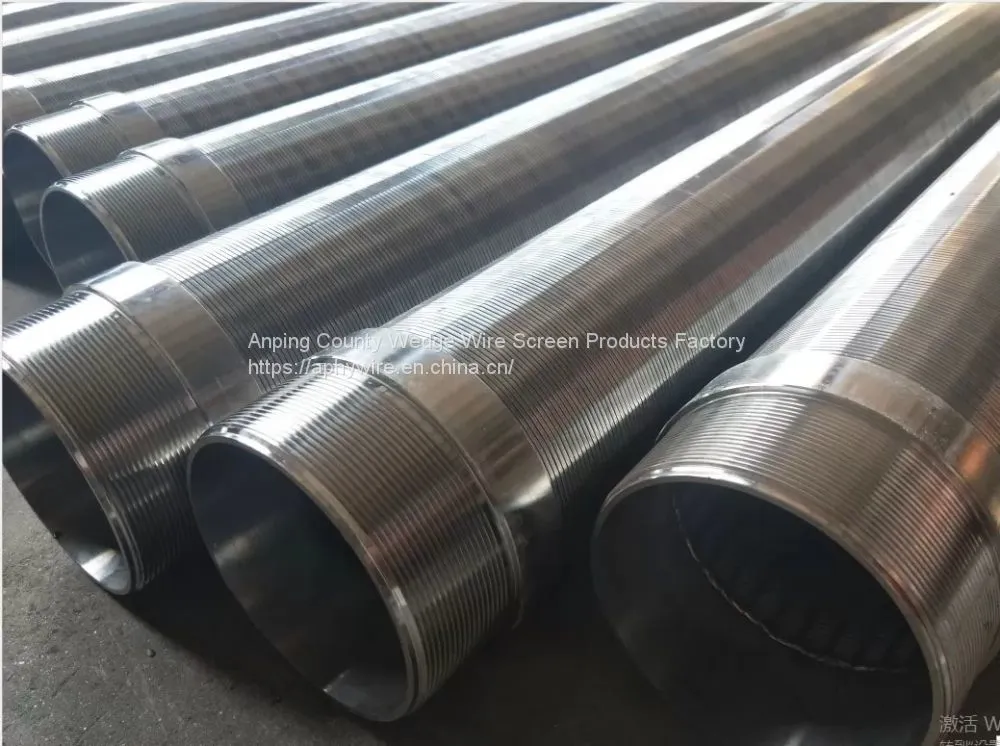

Styles of connection: by welding or by threaded male/female coupling.
Standard length: 3m/5.85m
Applications
1. Heavy oil, sand oil, light oil, SAGD, CBM, bitumen, thermal
2. Water injection, bi-modal sand, carbonates, thin pay
3. Horizontal, vertical , deviated oil and gas and water well
SIZE
(INCH)
O.D
(MM)
SLOT
(MM)
LENGTH
(M)
COLLAPSE
STRENGTH
(BAR)
TENSILE
WEIGHT
(TON)
WRAP WIRE(WIDTH*HEIGHT)
(MM)
RODS
(MM)
3-1/2 88.9 1.0 3 ＞22 10.2 2.3*3.5 3.8MM/22 4-1/2 114.3 1.0 3 ＞28 11.5 2.3*3.5 3.8MM/22 6-5/8 168.3 0.75 5.8 ＞40 12.8 2.3*3.5 3.8MM/32 6-5/8 168.3 1.0 5.8 ＞33 12.8 2.3*3.5 3.8MM/32 6-5/8 168.3 0.63 5.8 ＞83 45 3.2*6.0 6.0MM*32 8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3*3.5 3.8MM/48 8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0*5.0 4.0MM/48 8-5/8 219.1 1.0 5.8 ＞60 46 3.2*6.0 5.0MM/48 10-3/4 273.1 0.75 5.8 ＞50 32.9 2.3*3.5 4.9MM/55 10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*5.0 4.9MM/55 10-3/4 273.1 1.0 5.8 ＞100 48 3.2*6.0 5.0MM/55 12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0 4.0MM/50 14 355.6 1.0 3 ＞80 37.8 3.0*5.0 4.0MM/59
