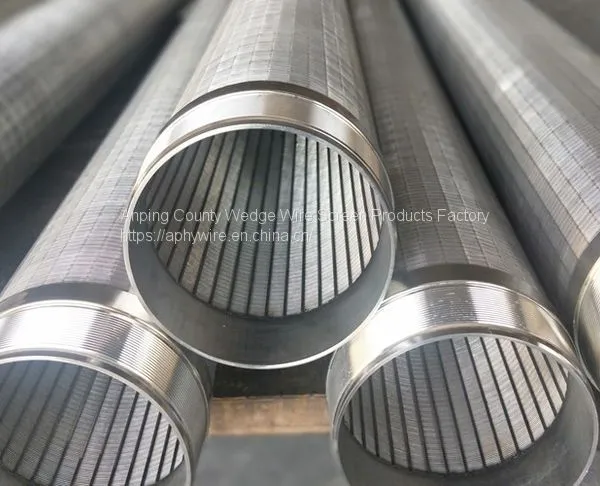

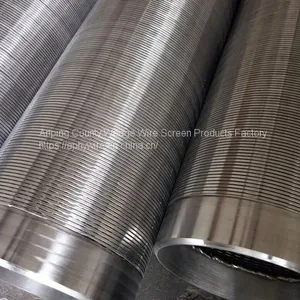

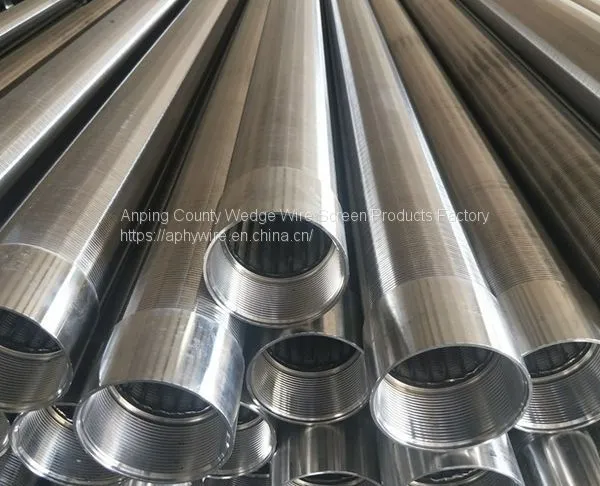

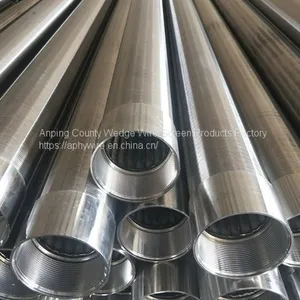

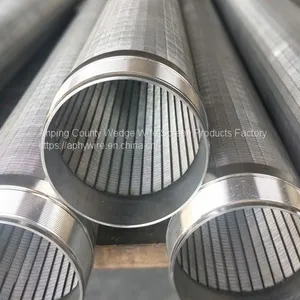

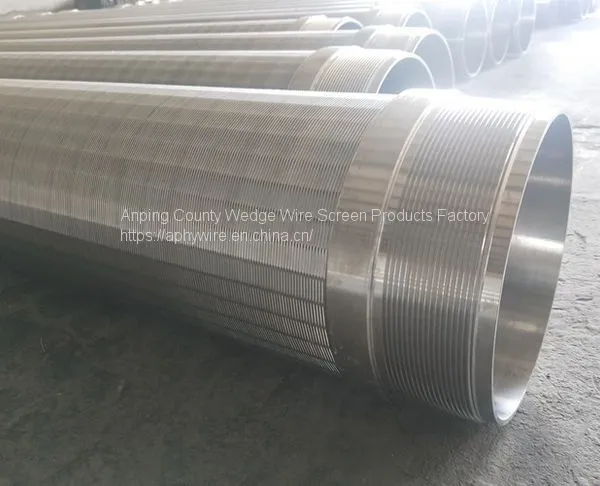

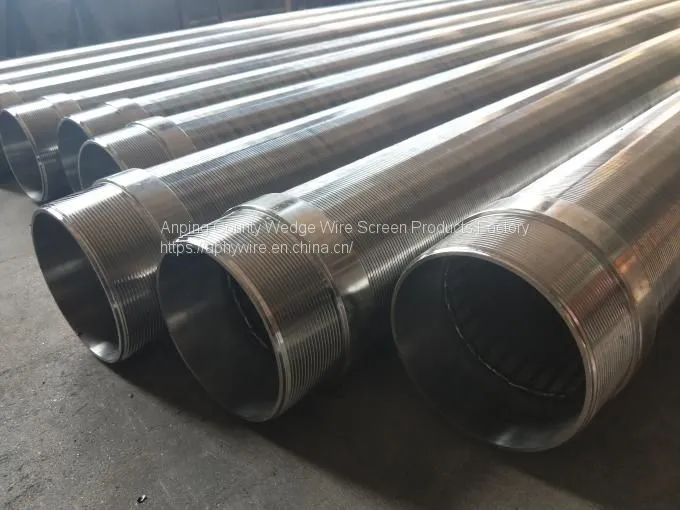

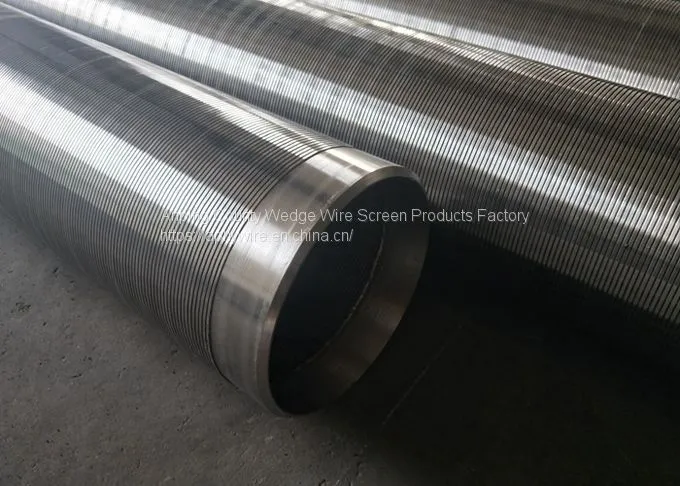

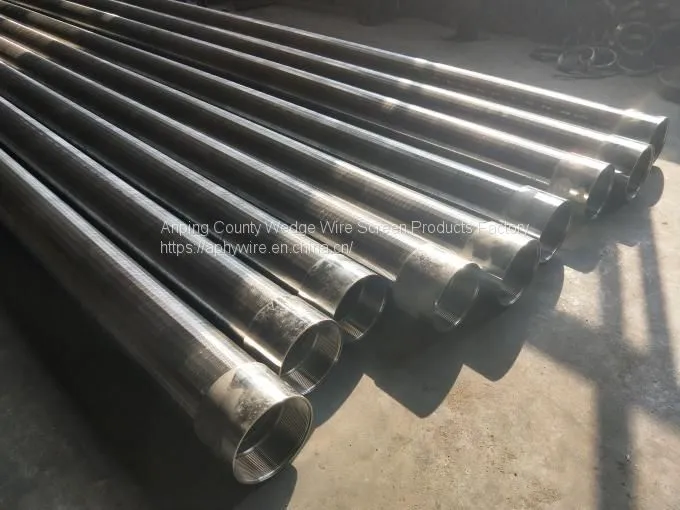

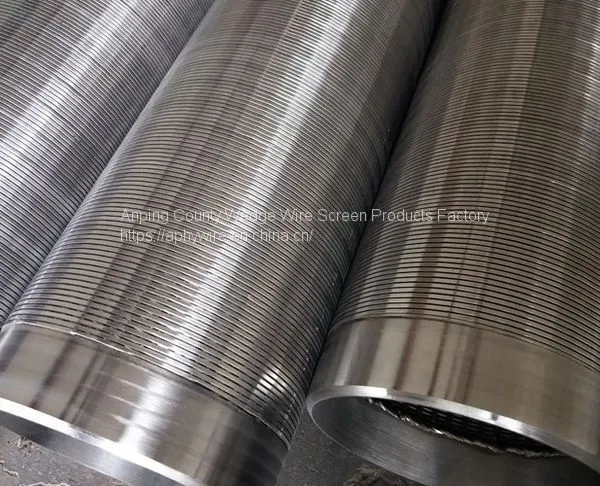

Help CenterV Shaped Wire Welded Stainless Steel Water Well Screens
Related Products
-
Wedged Wire Welded Water Well ScreenUS$ 50 - 200MOQ: 10 Pieces -
Water Well Screen ; Water Filtration Screen PipeUS$ 30 - 100MOQ: 10 Meters
-
Looped Wedge Wire Water Well ScreenUS$ 56 - 356MOQ: 30 Sets
-
Vee - Wire Johnson Sand Conrol Wire ScreensUS$ 20 - 120MOQ: 10 Pieces
-
Wedge Wire Johnson Screen Pipe , Vee-wire Wrapped Screen Tube for Well Drilling, Sand Control, Dewatering PumpUS$ 60 - 160MOQ: 30 Pieces
Water Well Screen, Wedge Wire screen, Johnson screen mesh, Wire Wrapped Screen, V wire slotted screen
Water Well Screens
1. A well screen is a piece of pipe with slots around its length. Rigid construction, a maximum open area up to 60% and precise slot openings suit the wedge wire screen for use in fine and silty sand aquifers.
2. A wedge wire design reduces the risk of clogging and is easy to backwash.
3. Large screen areas increase the chance of clean water entering the well while still keeping impurities out. This means more water can easily enter the well, keeping pumping costs low. The water also undergoes less of a pressure drop, which reduces the energy consumption through the pumping process.
4. Water enters at a low speed, under a low pressure, which reduces erosion on the screen surface and improves the screen's service life.
5. For the given length, diameter and slot opening size, Anping wedge wire filter screens allow for a flow rate that is 3 times higher than the bridge slot screen, and 9 times that of a louvered well screen.
6. Customers can choose the slot opening size anywhere between 0.1 to 6mm, based on specific application requirements.
Applications for the Water Well Screen
Anping wedge wire screen fatctory works well with deep well and submersible pumps. It is also commonly used in vertical wells, deviated wells, and directional wells.
1. Heavy oil, sand oil, light oil, SAGD, CBM, bitumen, thermal
2. Water injection, bi-modal sand, carbonates, thin pay
3. Horizontal, vertical , deviated oil and gas and water wells
Regular Specifications:
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 2.9 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 2.9 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 2.9 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
