Stainless Steel Wedge Wire Screen Panel For Solid-Liquid Separation

Description:

Stainless Steel Wedge Wire Screen Panel is welded by V wire and support rod.

There is a fixed value slot between each Vee shaped wire.

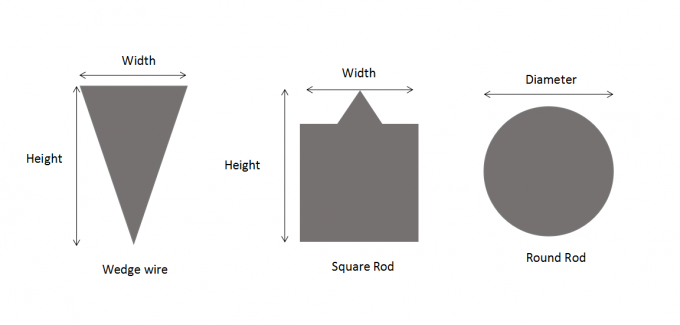

The support rod can be round wire, also can be a triangular or trapezoidal shape.

Wedge wire is triangular wire , the wedge shape wire make the gap opening one end small and the other end large, it is not easy to jam.This product is processed by advanced fusion welding technology, with high strength, rigidity and bearing capacity, which can be used to make rigid sieving filters of various shapes.

The slot size is accurate and the filtering precision is high.It has the advantages of strong structure, high ventilation efficiency, good heat dissipation, high temperature resistance, corrosion resistance, good mechanical properties, long service life, safe and reliable.

Specification:

Regular Specifications:

Material: stainless steel 205  304, 316, 304L, 316L etc.

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Dimension: width up to 4000 mm

Length up to 4000mm

Special specification can be made according to your request.

Advantages:

V Shape Wire Slot Wedge Wire Screen Panels For Solid-liquid separation

Wedge wire and support rod adopt the international advanced continuity resistance welding technology automation mine screen mesh welding production equipment, sieve seam even, stable welding quality, wear-resisting, long service life and has a high strength, stiffness and bearing capacity, can make various shapes of the rigid screening filter device. And the screen seam is v - shaped, easy to leak, not easy to plug.

Industry:

V Shape Wire Slot Wedge Wire Screen Panels For Solid-liquid separation are mainly used for screening filter coal mine, coal products, such as iron ore, sandstone can also be used for food, oil, water and other solid liquid filter, mainly used in coal mine, coal washing, food, is a manufacturing and other industries, can also be used to decorate the breeding, etc.
